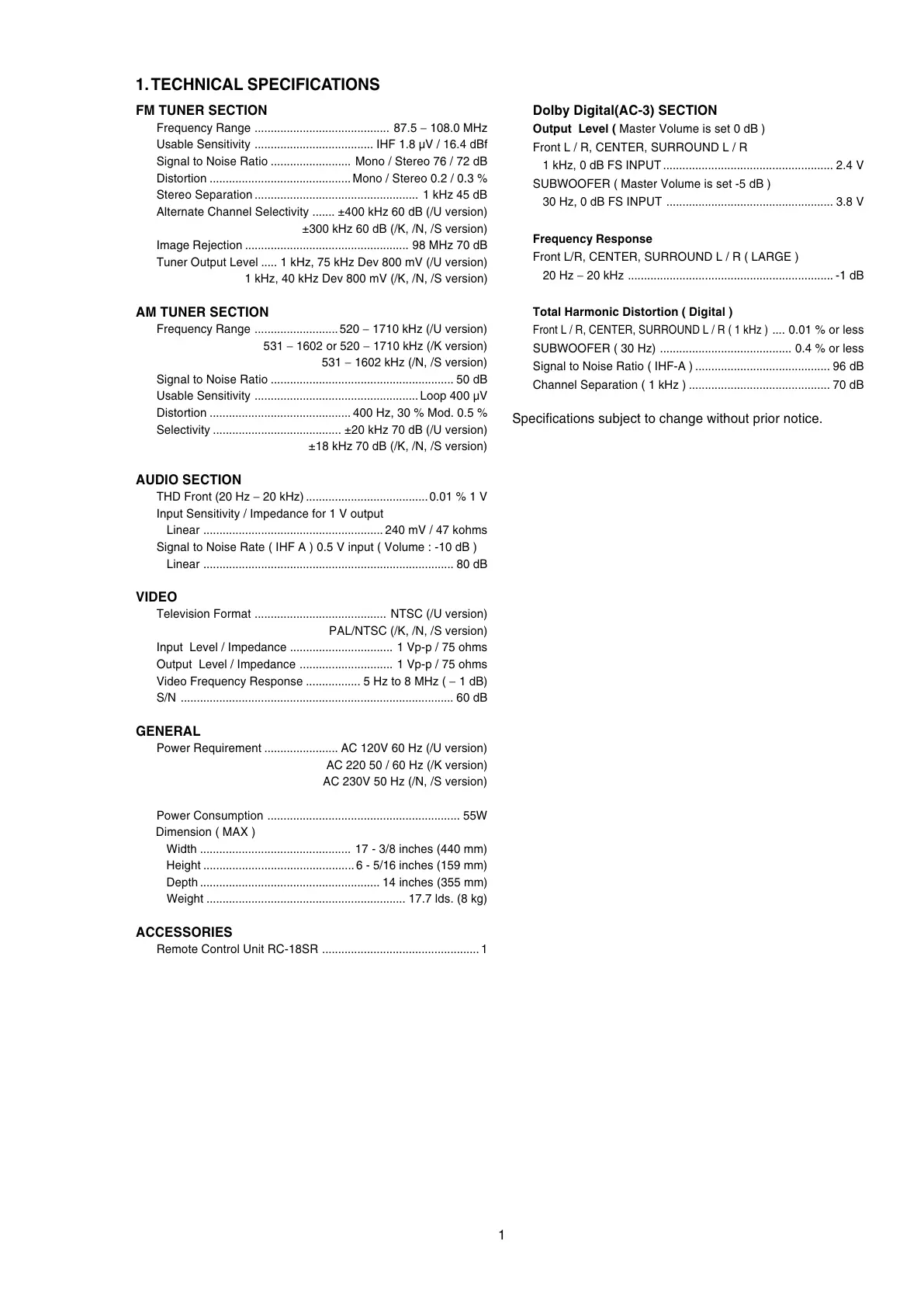

1. TECHNICAL SPECIFICATIONS
FM TUNER SECTION
Frequency Range .......................................... 87.5 − 108.0 MHz
Usable Sensitivity ..................................... IHF 1.8 µV / 16.4 dBf
Signal to Noise Ratio ......................... Mono / Stereo 76 / 72 dB
Distortion ............................................ Mono / Stereo 0.2 / 0.3 %
Stereo Separation ................................................... 1 kHz 45 dB
Alternate Channel Selectivity ....... ±400 kHz 60 dB (/U version)
±300 kHz 60 dB (/K, /N, /S version)
Image Rejection ................................................... 98 MHz 70 dB
Tuner Output Level ..... 1 kHz, 75 kHz Dev 800 mV (/U version)
1 kHz, 40 kHz Dev 800 mV (/K, /N, /S version)
AM TUNER SECTION
Frequency Range ..........................520 − 1710 kHz (/U version)
531 − 1602 or 520 − 1710 kHz (/K version)
531 − 1602 kHz (/N, /S version)
Signal to Noise Ratio ......................................................... 50 dB
Usable Sensitivity ................................................... Loop 400 µV
Distortion ............................................ 400 Hz, 30 % Mod. 0.5 %
Selectivity ........................................ ±20 kHz 70 dB (/U version)
±18 kHz 70 dB (/K, /N, /S version)
AUDIO SECTION
THD Front (20 Hz − 20 kHz) ......................................0.01 % 1 V
Input Sensitivity / Impedance for 1 V output
Linear ........................................................ 240 mV / 47 kohms
Signal to Noise Rate ( IHF A ) 0.5 V input ( Volume : -10 dB )
Linear .............................................................................. 80 dB
VIDEO
Television Format ......................................... NTSC (/U version)
PAL/NTSC (/K, /N, /S version)
Input Level / Impedance ................................ 1 Vp-p / 75 ohms
Output Level / Impedance ............................. 1 Vp-p / 75 ohms
Video Frequency Response ................. 5 Hz to 8 MHz ( − 1 dB)
S/N ..................................................................................... 60 dB
GENERAL
Power Requirement ....................... AC 120V 60 Hz (/U version)
AC 220 50 / 60 Hz (/K version)
AC 230V 50 Hz (/N, /S version)
Power Consumption ............................................................ 55W
Dimension ( MAX )
Width ............................................... 17 - 3/8 inches (440 mm)
Height ............................................... 6 - 5/16 inches (159 mm)
Depth ........................................................ 14 inches (355 mm)
Weight .............................................................. 17.7 lds. (8 kg)
ACCESSORIES
Remote Control Unit RC-18SR .................................................1
Dolby Digital(AC-3) SECTION
Output Level ( Master Volume is set 0 dB )
Front L / R, CENTER, SURROUND L / R
1 kHz, 0 dB FS INPUT ..................................................... 2.4 V
SUBWOOFER ( Master Volume is set -5 dB )
30 Hz, 0 dB FS INPUT .................................................... 3.8 V
Frequency Response
Front L/R, CENTER, SURROUND L / R ( LARGE )
20 Hz − 20 kHz ................................................................ -1 dB
Total Harmonic Distortion ( Digital )
Front L / R, CENTER, SURROUND L / R ( 1 kHz ) .... 0.01 % or less
SUBWOOFER ( 30 Hz) ......................................... 0.4 % or less
Signal to Noise Ratio ( IHF-A ) .......................................... 96 dB
Channel Separation ( 1 kHz ) ............................................ 70 dB
Specifications subject to change without prior notice.
