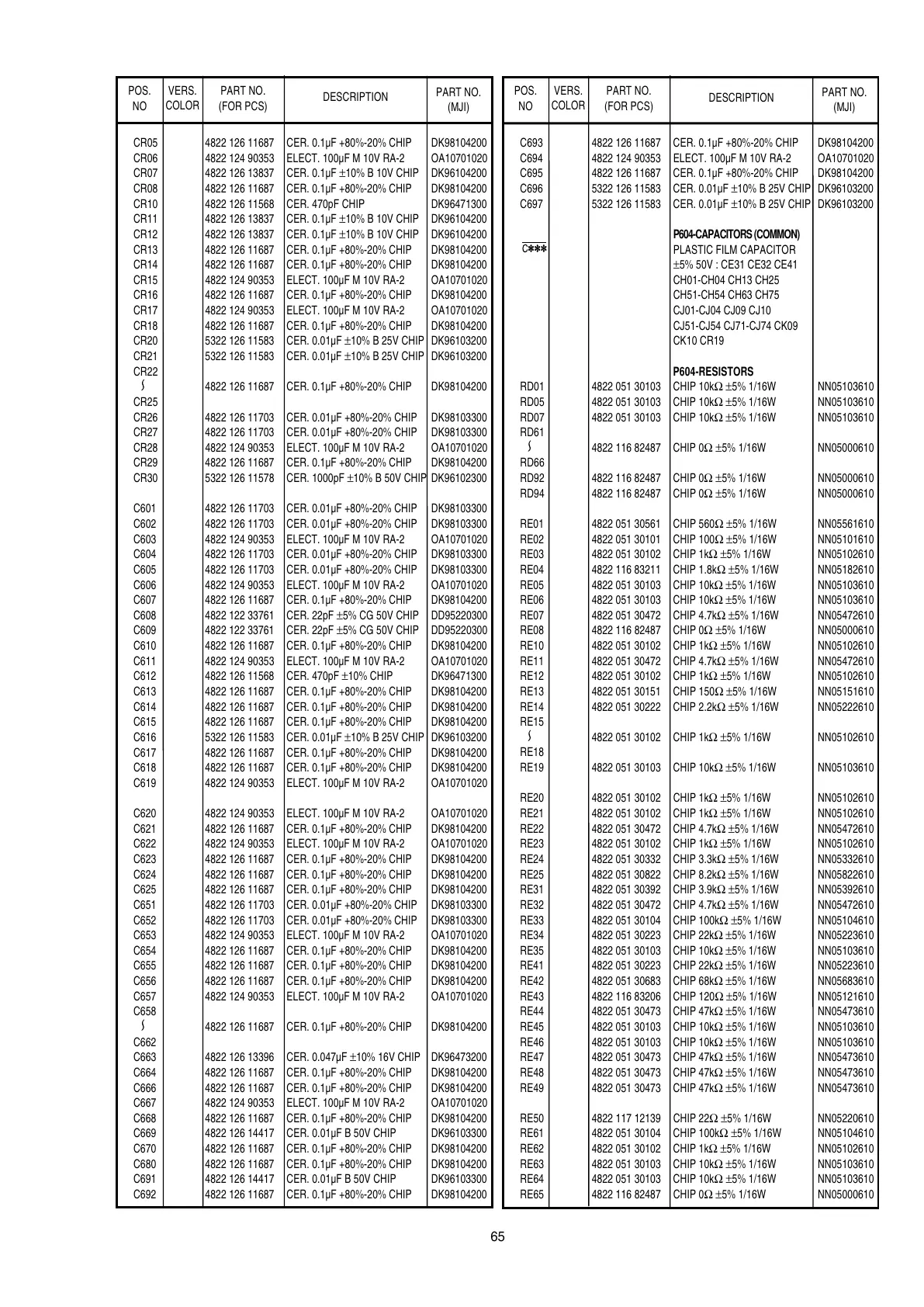

Marantz AV9000 - Page 39

65
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
CR05 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
CR06 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
CR07 4822 126 13837 CER. 0.1µF
±
10% B 10V CHIP DK96104200
CR08 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
CR10 4822 126 11568 CER. 470pF CHIP DK96471300
CR11 4822 126 13837 CER. 0.1µF
±
10% B 10V CHIP DK96104200
CR12 4822 126 13837 CER. 0.1µF
±
10% B 10V CHIP DK96104200
CR13 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
CR14 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
CR15 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
CR16 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
CR17 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
CR18 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
CR20 5322 126 11583 CER. 0.01µF
±
10% B 25V CHIP DK96103200
CR21 5322 126 11583 CER. 0.01µF
±
10% B 25V CHIP DK96103200
CR22
4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
CR25
CR26 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300
CR27 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300
CR28 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
CR29 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
CR30 5322 126 11578 CER. 1000pF
±
10% B 50V CHIP DK96102300
C601 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300
C602 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300
C603 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
C604 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300
C605 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300
C606 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
C607 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C608 4822 122 33761 CER. 22pF
±
5% CG 50V CHIP DD95220300
C609 4822 122 33761 CER. 22pF
±
5% CG 50V CHIP DD95220300
C610 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C611 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
C612 4822 126 11568 CER. 470pF
±
10% CHIP DK96471300
C613 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C614 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C615 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C616 5322 126 11583 CER. 0.01µF
±
10% B 25V CHIP DK96103200
C617 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C618 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C619 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
C620 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
C621 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C622 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
C623 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C624 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C625 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C651 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300
C652 4822 126 11703 CER. 0.01µF +80%-20% CHIP DK98103300
C653 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
C654 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C655 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C656 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C657 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
C658
4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C662
C663 4822 126 13396 CER. 0.047µF
±
10% 16V CHIP DK96473200
C664 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C666 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C667 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
C668 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C669 4822 126 14417 CER. 0.01µF B 50V CHIP DK96103300
C670 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C680 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C691 4822 126 14417 CER. 0.01µF B 50V CHIP DK96103300
C692 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C693 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C694 4822 124 90353 ELECT. 100µF M 10V RA-2 OA10701020
C695 4822 126 11687 CER. 0.1µF +80%-20% CHIP DK98104200
C696 5322 126 11583 CER. 0.01µF
±
10% B 25V CHIP DK96103200
C697 5322 126 11583 CER. 0.01µF
±
10% B 25V CHIP DK96103200
P604-CAPACITORS (COMMON)
PLASTIC FILM CAPACITOR
±
5% 50V : CE31 CE32 CE41
CH01-CH04 CH13 CH25
CH51-CH54 CH63 CH75
CJ01-CJ04 CJ09 CJ10
CJ51-CJ54 CJ71-CJ74 CK09
CK10 CR19
P604-RESISTORS
RD01 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RD05 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RD07 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RD61
4822 116 82487 CHIP 0
Ω ±
5% 1/16W NN05000610
RD66
RD92 4822 116 82487 CHIP 0
Ω ±
5% 1/16W NN05000610
RD94 4822 116 82487 CHIP 0
Ω ±
5% 1/16W NN05000610
RE01 4822 051 30561 CHIP 560
Ω ±
5% 1/16W NN05561610
RE02 4822 051 30101 CHIP 100
Ω ±
5% 1/16W NN05101610
RE03 4822 051 30102 CHIP 1k
Ω ±
5% 1/16W NN05102610
RE04 4822 116 83211 CHIP 1.8k
Ω ±
5% 1/16W NN05182610
RE05 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RE06 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RE07 4822 051 30472 CHIP 4.7k
Ω ±
5% 1/16W NN05472610
RE08 4822 116 82487 CHIP 0
Ω ±
5% 1/16W NN05000610
RE10 4822 051 30102 CHIP 1k
Ω ±
5% 1/16W NN05102610
RE11 4822 051 30472 CHIP 4.7k
Ω ±
5% 1/16W NN05472610
RE12 4822 051 30102 CHIP 1k
Ω ±
5% 1/16W NN05102610
RE13 4822 051 30151 CHIP 150
Ω ±
5% 1/16W NN05151610
RE14 4822 051 30222 CHIP 2.2k
Ω ±
5% 1/16W NN05222610
RE15
4822 051 30102 CHIP 1k
Ω ±
5% 1/16W NN05102610
RE18
RE19 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RE20 4822 051 30102 CHIP 1k
Ω ±
5% 1/16W NN05102610
RE21 4822 051 30102 CHIP 1k
Ω ±
5% 1/16W NN05102610
RE22 4822 051 30472 CHIP 4.7k
Ω ±
5% 1/16W NN05472610
RE23 4822 051 30102 CHIP 1k
Ω ±
5% 1/16W NN05102610
RE24 4822 051 30332 CHIP 3.3k
Ω ±
5% 1/16W NN05332610
RE25 4822 051 30822 CHIP 8.2k
Ω ±
5% 1/16W NN05822610
RE31 4822 051 30392 CHIP 3.9k
Ω ±
5% 1/16W NN05392610
RE32 4822 051 30472 CHIP 4.7k
Ω ±
5% 1/16W NN05472610
RE33 4822 051 30104 CHIP 100k
Ω ±
5% 1/16W NN05104610
RE34 4822 051 30223 CHIP 22k
Ω ±
5% 1/16W NN05223610
RE35 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RE41 4822 051 30223 CHIP 22k
Ω ±
5% 1/16W NN05223610
RE42 4822 051 30683 CHIP 68k
Ω ±
5% 1/16W NN05683610
RE43 4822 116 83206 CHIP 120
Ω ±
5% 1/16W NN05121610
RE44 4822 051 30473 CHIP 47k
Ω ±
5% 1/16W NN05473610
RE45 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RE46 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RE47 4822 051 30473 CHIP 47k
Ω ±
5% 1/16W NN05473610
RE48 4822 051 30473 CHIP 47k
Ω ±
5% 1/16W NN05473610
RE49 4822 051 30473 CHIP 47k
Ω ±
5% 1/16W NN05473610
RE50 4822 117 12139 CHIP 22
Ω ±
5% 1/16W NN05220610
RE61 4822 051 30104 CHIP 100k
Ω ±
5% 1/16W NN05104610
RE62 4822 051 30102 CHIP 1k
Ω ±
5% 1/16W NN05102610
RE63 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RE64 4822 051 30103 CHIP 10k
Ω ±
5% 1/16W NN05103610
RE65 4822 116 82487 CHIP 0
Ω ±
5% 1/16W NN05000610
