SPECIFICATIONS
GENERAL:
Mains voltage : 100V for /F
120V for /U
110-127V/220-240V Switchable for /K
220-230V for /N
Mains frequency : 50/60Hz
Power consumption : < 12W at Play mode
Dimension (WxDxH) : 435 x 380 x 119mm
AUDIO PERFORMANCE:
Output level : 2Vrms ± 2dB @ 47kohm
Frequency response within ± 0.4dB: 20Hz - 20kHz
Dynamic range at 1kHz : > 90dB
1)
Signal/Noise ratio at 1kHz : > 98dB
1)
Total Harmonic Distortion at 1kHz : < 0.004%
Channel unbalance at 1kHz : < 1dB
Channel separation at 1kHz : > 95dB
1)
Headphone impedance : 30 - 600 ohm
Headphone output (e.m.f.) : 4.5Vrms ± 2dB
Digital Output at 75ohm : 0.5V
1)
with 13th order Filter eg. 4822 395 30204

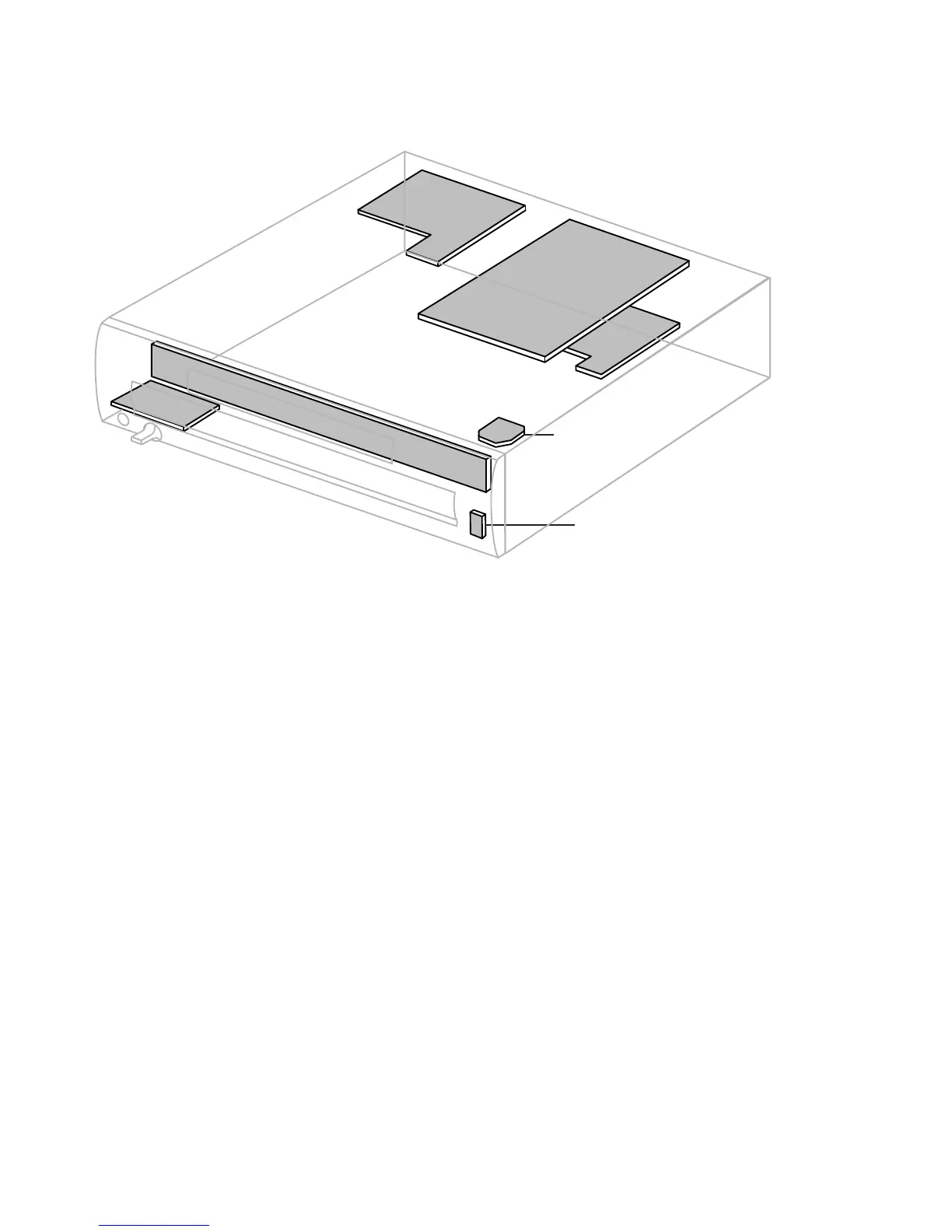

LOCATION OF PC BOARDS
SERVO /
DECODER BOARD
Load/QP Board
DAC / AF
BOARD
SUPPLY BOARD
FRONT BOARD
Open/close Board
H/P BOARD
