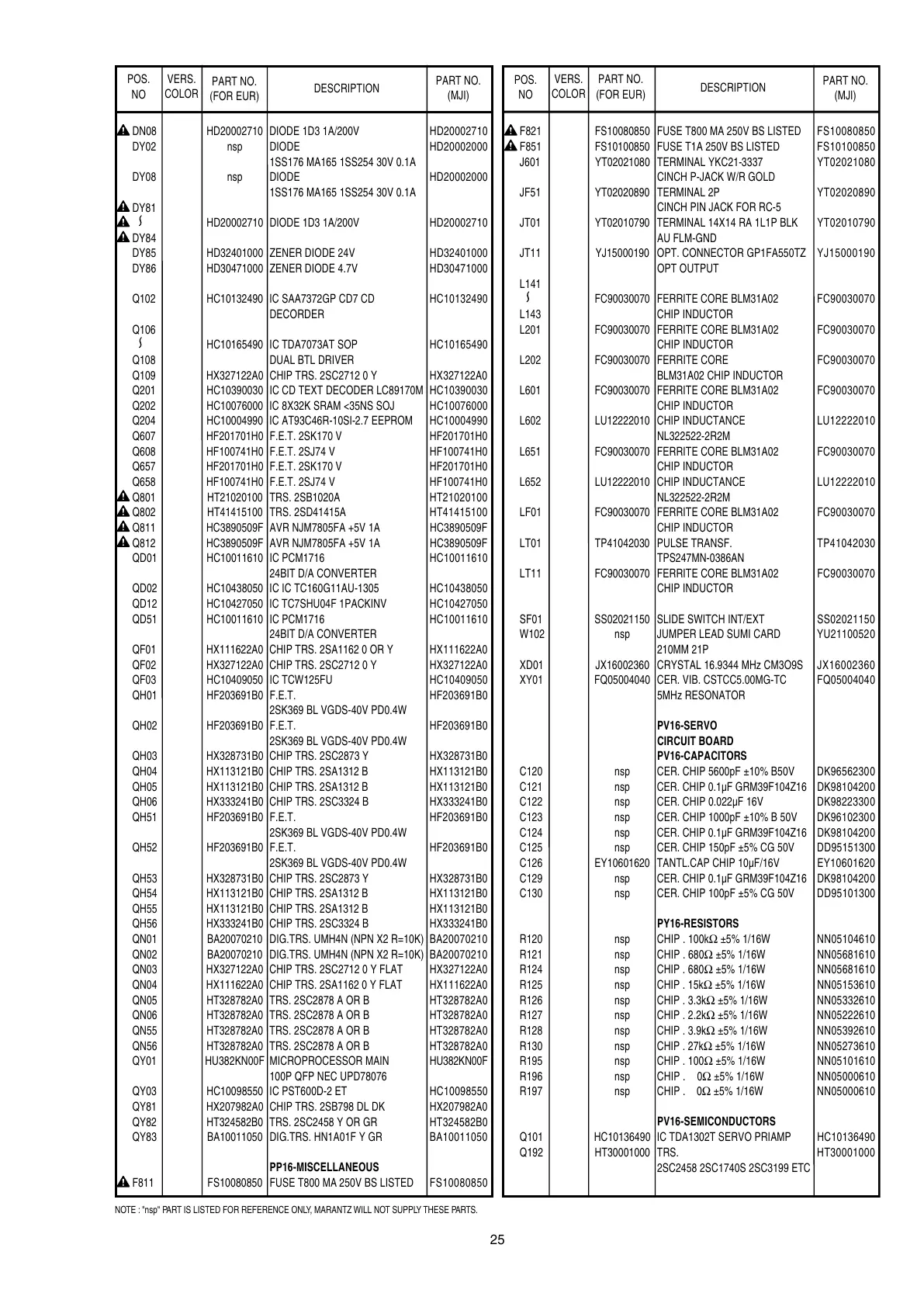

Marantz CD17MK3 - PY16 Board Component Categories

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
25
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
DN08 HD20002710 DIODE 1D3 1A/200V HD20002710
DY02 nsp DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
DY08 nsp DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
DY81
HD20002710 DIODE 1D3 1A/200V HD20002710
DY84
DY85 HD32401000 ZENER DIODE 24V HD32401000
DY86 HD30471000 ZENER DIODE 4.7V HD30471000
Q102 HC10132490 IC SAA7372GP CD7 CD
DECORDER
HC10132490
Q106
HC10165490 IC TDA7073AT SOP HC10165490
Q108 DUAL BTL DRIVER
Q109 HX327122A0 CHIP TRS. 2SC2712 0 Y HX327122A0
Q201 HC10390030 IC CD TEXT DECODER LC89170M HC10390030
Q202 HC10076000 IC 8X32K SRAM <35NS SOJ HC10076000
Q204 HC10004990 IC AT93C46R-10SI-2.7 EEPROM HC10004990
Q607 HF201701H0 F.E.T. 2SK170 V HF201701H0
Q608 HF100741H0 F.E.T. 2SJ74 V HF100741H0
Q657 HF201701H0 F.E.T. 2SK170 V HF201701H0
Q658 HF100741H0 F.E.T. 2SJ74 V HF100741H0
Q801 HT21020100 TRS. 2SB1020A HT21020100
Q802 HT41415100 TRS. 2SD41415A HT41415100
Q811 HC3890509F AVR NJM7805FA +5V 1A HC3890509F
Q812 HC3890509F AVR NJM7805FA +5V 1A HC3890509F
QD01 HC10011610 IC PCM1716
24BIT D/A CONVERTER
HC10011610
QD02 HC10438050 IC IC TC160G11AU-1305 HC10438050
QD12 HC10427050 IC TC7SHU04F 1PACKINV HC10427050
QD51 HC10011610 IC PCM1716
24BIT D/A CONVERTER
HC10011610
QF01 HX111622A0 CHIP TRS. 2SA1162 0 OR Y HX111622A0
QF02 HX327122A0 CHIP TRS. 2SC2712 0 Y HX327122A0
QF03 HC10409050 IC TCW125FU HC10409050
QH01 HF203691B0 F.E.T.
2SK369 BL VGDS-40V PD0.4W
HF203691B0
QH02 HF203691B0 F.E.T.
2SK369 BL VGDS-40V PD0.4W
HF203691B0
QH03 HX328731B0 CHIP TRS. 2SC2873 Y HX328731B0
QH04 HX113121B0 CHIP TRS. 2SA1312 B HX113121B0
QH05 HX113121B0 CHIP TRS. 2SA1312 B HX113121B0
QH06 HX333241B0 CHIP TRS. 2SC3324 B HX333241B0
QH51 HF203691B0 F.E.T.
2SK369 BL VGDS-40V PD0.4W
HF203691B0
QH52 HF203691B0 F.E.T.
2SK369 BL VGDS-40V PD0.4W
HF203691B0
QH53 HX328731B0 CHIP TRS. 2SC2873 Y HX328731B0
QH54 HX113121B0 CHIP TRS. 2SA1312 B HX113121B0
QH55 HX113121B0 CHIP TRS. 2SA1312 B HX113121B0
QH56 HX333241B0 CHIP TRS. 2SC3324 B HX333241B0
QN01 BA20070210 DIG.TRS. UMH4N (NPN X2 R=10K) BA20070210
QN02 BA20070210 DIG.TRS. UMH4N (NPN X2 R=10K) BA20070210
QN03 HX327122A0 CHIP TRS. 2SC2712 0 Y FLAT HX327122A0
QN04 HX111622A0 CHIP TRS. 2SA1162 0 Y FLAT HX111622A0
QN05 HT328782A0 TRS. 2SC2878 A OR B HT328782A0
QN06 HT328782A0 TRS. 2SC2878 A OR B HT328782A0
QN55 HT328782A0 TRS. 2SC2878 A OR B HT328782A0
QN56 HT328782A0 TRS. 2SC2878 A OR B HT328782A0
QY01 HU382KN00F MICROPROCESSOR MAIN
100P QFP NEC UPD78076
HU382KN00F
QY03 HC10098550 IC PST600D-2 ET HC10098550
QY81 HX207982A0 CHIP TRS. 2SB798 DL DK HX207982A0
QY82 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0
QY83 BA10011050 DIG.TRS. HN1A01F Y GR BA10011050
PP16-MISCELLANEOUS
F811 FS10080850 FUSE T800 MA 250V BS LISTED FS10080850
F821 FS10080850 FUSE T800 MA 250V BS LISTED FS10080850
F851 FS10100850 FUSE T1A 250V BS LISTED FS10100850
J601 YT02021080 TERMINAL YKC21-3337
CINCH P-JACK W/R GOLD
YT02021080
JF51 YT02020890 TERMINAL 2P
CINCH PIN JACK FOR RC-5
YT02020890
JT01 YT02010790 TERMINAL 14X14 RA 1L1P BLK
AU FLM-GND
YT02010790
JT11 YJ15000190 OPT. CONNECTOR GP1FA550TZ
OPT OUTPUT
YJ15000190
L141
FC90030070 FERRITE CORE BLM31A02 FC90030070
L143 CHIP INDUCTOR
L201 FC90030070 FERRITE CORE BLM31A02
CHIP INDUCTOR
FC90030070
L202 FC90030070 FERRITE CORE
BLM31A02 CHIP INDUCTOR
FC90030070
L601 FC90030070 FERRITE CORE BLM31A02
CHIP INDUCTOR
FC90030070
L602 LU12222010 CHIP INDUCTANCE
NL322522-2R2M
LU12222010
L651 FC90030070 FERRITE CORE BLM31A02
CHIP INDUCTOR
FC90030070
L652 LU12222010 CHIP INDUCTANCE
NL322522-2R2M
LU12222010
LF01 FC90030070 FERRITE CORE BLM31A02
CHIP INDUCTOR
FC90030070
LT01 TP41042030 PULSE TRANSF.
TPS247MN-0386AN
TP41042030
LT11 FC90030070 FERRITE CORE BLM31A02
CHIP INDUCTOR
FC90030070
SF01 SS02021150 SLIDE SWITCH INT/EXT SS02021150
W102 nsp JUMPER LEAD SUMI CARD
210MM 21P
YU21100520
XD01 JX16002360 CRYSTAL 16.9344 MHz CM3O9S JX16002360
XY01 FQ05004040 CER. VIB. CSTCC5.00MG-TC
5MHz RESONATOR
FQ05004040
PV16-SERVO
CIRCUIT BOARD
PV16-CAPACITORS
C120 nsp CER. CHIP 5600pF ±10% B50V DK96562300
C121 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200
C122 nsp CER. CHIP 0.022µF 16V DK98223300
C123 nsp CER. CHIP 1000pF ±10% B 50V DK96102300
C124 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200
C125 nsp CER. CHIP 150pF ±5% CG 50V DD95151300
C126 EY10601620 TANTL.CAP CHIP 10µF/16V EY10601620
C129 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200
C130 nsp CER. CHIP 100pF ±5% CG 50V DD95101300
PY16-RESISTORS
R120 nsp CHIP . 100kΩ ±5% 1/16W NN05104610
R121 nsp CHIP . 680Ω ±5% 1/16W NN05681610
R124 nsp CHIP . 680Ω ±5% 1/16W NN05681610
R125 nsp CHIP . 15kΩ ±5% 1/16W NN05153610
R126 nsp CHIP . 3.3kΩ ±5% 1/16W NN05332610
R127 nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610
R128 nsp CHIP . 3.9kΩ ±5% 1/16W NN05392610
R130 nsp CHIP . 27kΩ ±5% 1/16W NN05273610
R195 nsp CHIP . 100Ω ±5% 1/16W NN05101610
R196 nsp CHIP . 0Ω ±5% 1/16W NN05000610
R197 nsp CHIP . 0Ω ±5% 1/16W NN05000610
PV16-SEMICONDUCTORS
Q101 HC10136490 IC TDA1302T SERVO PRIAMP HC10136490
Q192 HT30001000 TRS.
2SC2458 2SC1740S 2SC3199 ETC
HT30001000
