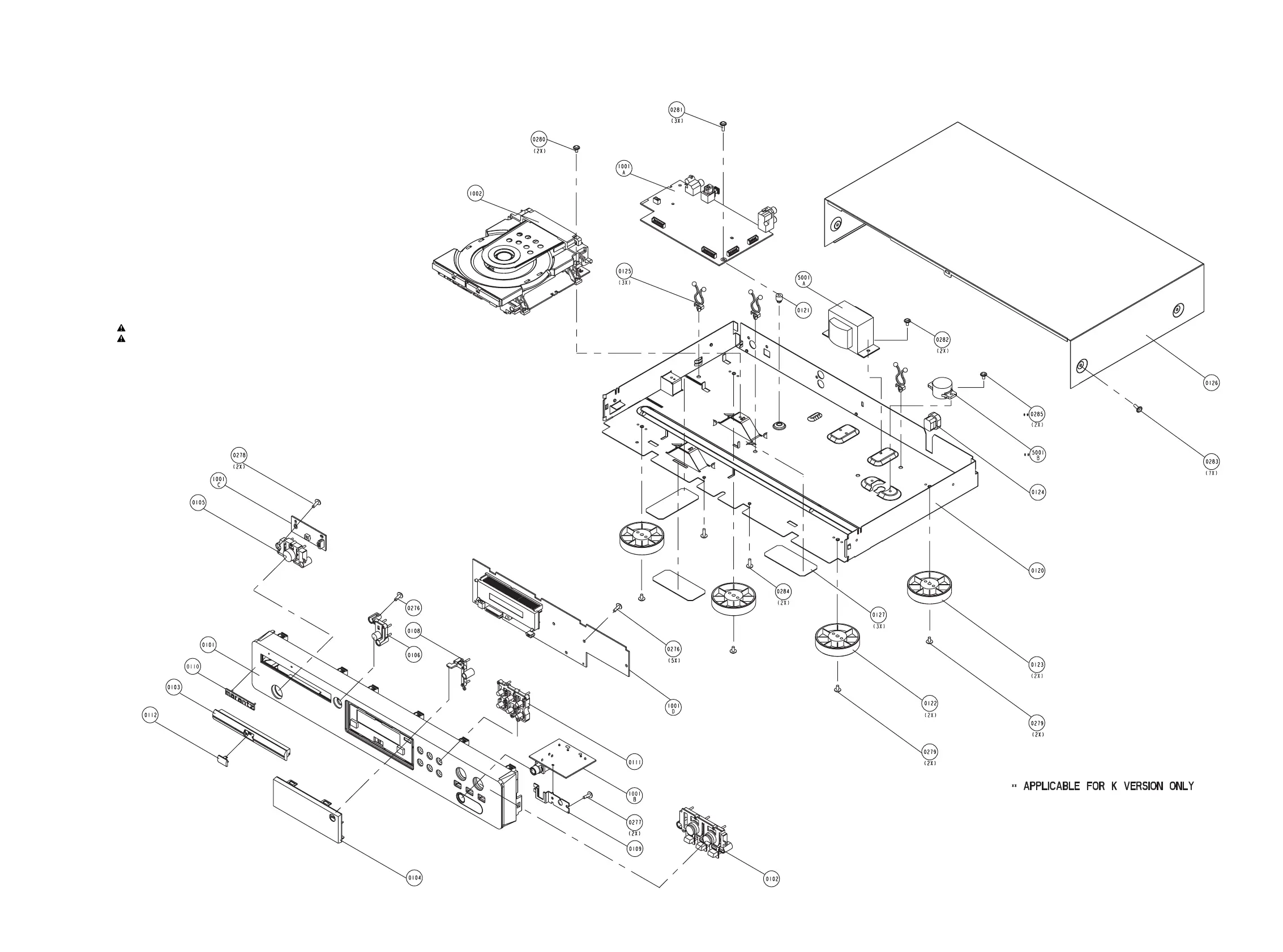

Marantz CD4000/N2B - Exploded View of Set

0101 3139 117 86920 CABINET FRONT
0102 3139 117 87030 BUTTON SET PLAY STOP
0103 3139 114 66310 COVER DOOR CD
0104 3139 117 86990 WINDOW
0105 3139 114 66330 BUTTON POWER
0106 3139 117 87040 BUTTON OPEN/CLOSE
0108 3139 114 66440 BUTTON TIME
0110 4822 454 11825 BADGE MARANTZ (BL)
0111 3139 114 66350 BUTTON SET PROGRAM
0112 3139 117 86940 BADGE COMPACT DISC
0122 4822 462 42129 FOOT GOLD FRONT
0123 4822 462 42129 FOOT GOLD FRONT
0124 4822 532 60948 BUSH. PLASTIC
5001
4822 146 11031 TRANSFORMER MAINS for /N
5001
4822 146 11032 TRANSFORMER MAINS for /K
3139 228 82590 REMOTE CONTROL RC07114/02
3139 116 18890 USER GUIDE for /N
3139 116 19100 USER GUIDE for /K
EXPLODED VIEW of SET
10-110-1
MECHANICAL PARTSLIST SET
