MECHANICAL INSTRUCTION
Dismantling Front

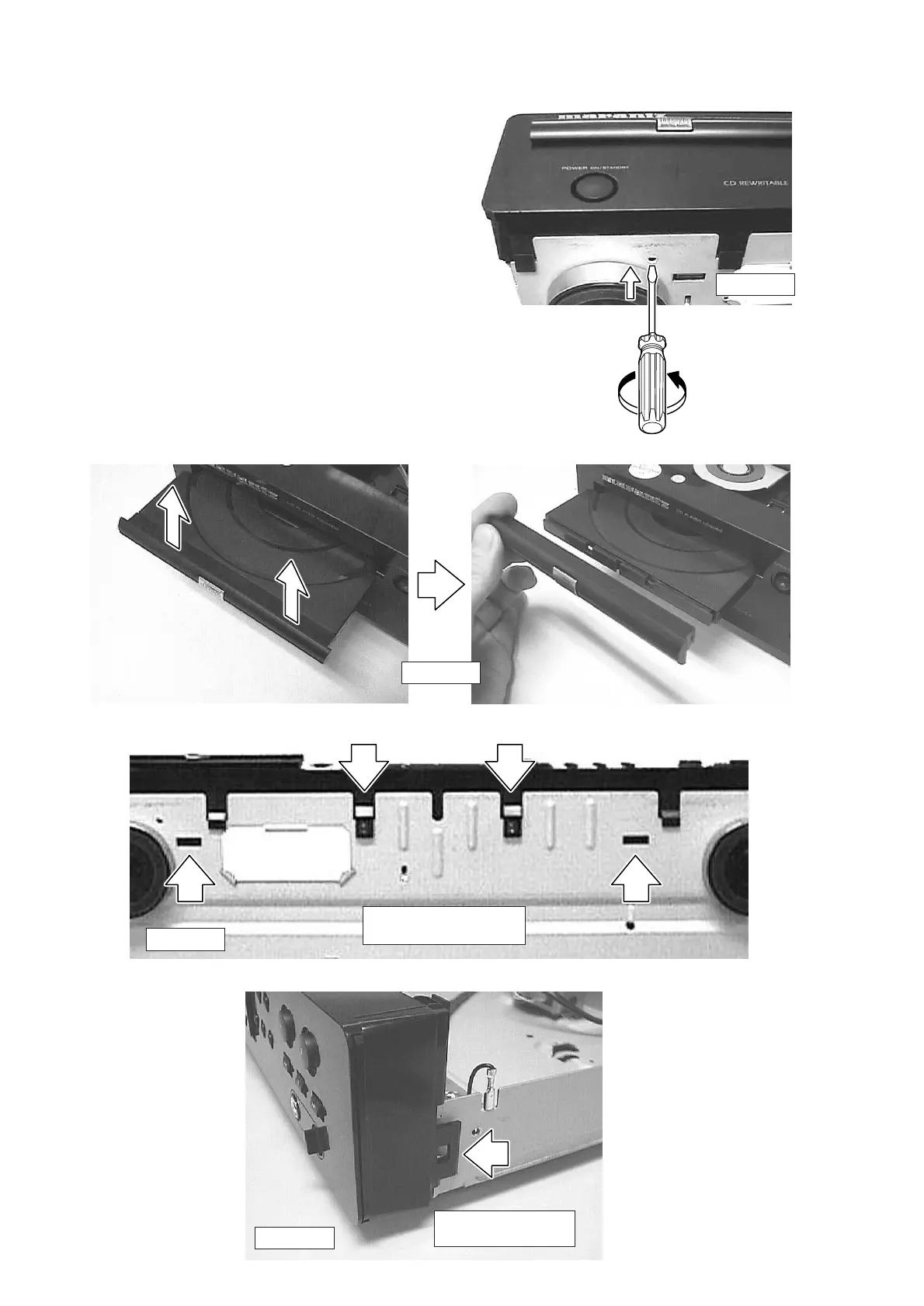

1) Press open/close button to open the tray. If the tray doesnít
work, turn counterclockwise a small screwdriver into the
hole as shown in picture 3. Then the tray comes out. After
the first centimeter it is possible to pull the tray out by
hand.
2) Release the door cover of the tray as shown in picture 4.
3) Loosen 2x screw as shown in picture 5.
4) Release 2x snap on button (see picture 5).
5) Release 2x snap on side (see picture 6).
6) Remove front.
