4-3
CS 53 142
Dismantling hints CD Short Loader
Dismantling the tray

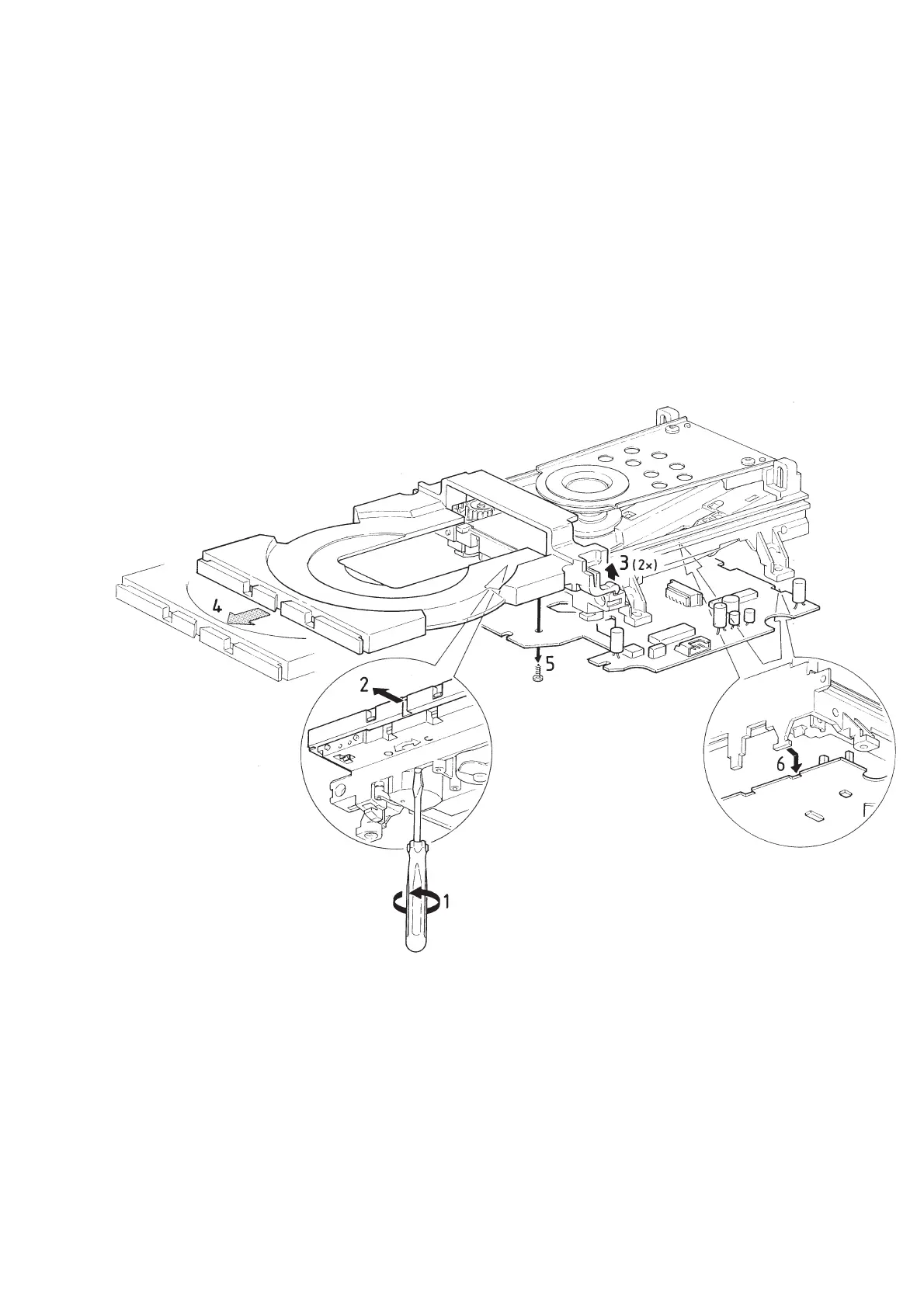

a) Press open/close button to open the tray. If the tray
doesn´t work, use a small screwdriver as shown in Fig.1
step 1 to move the tray outside. After the first centimetre
it is possible to pull the tray out by hand.
b) Release two snaps and remove tray.
Fig. 1
