Marantz CD5000 - Page 9

4-5
CS 53 144

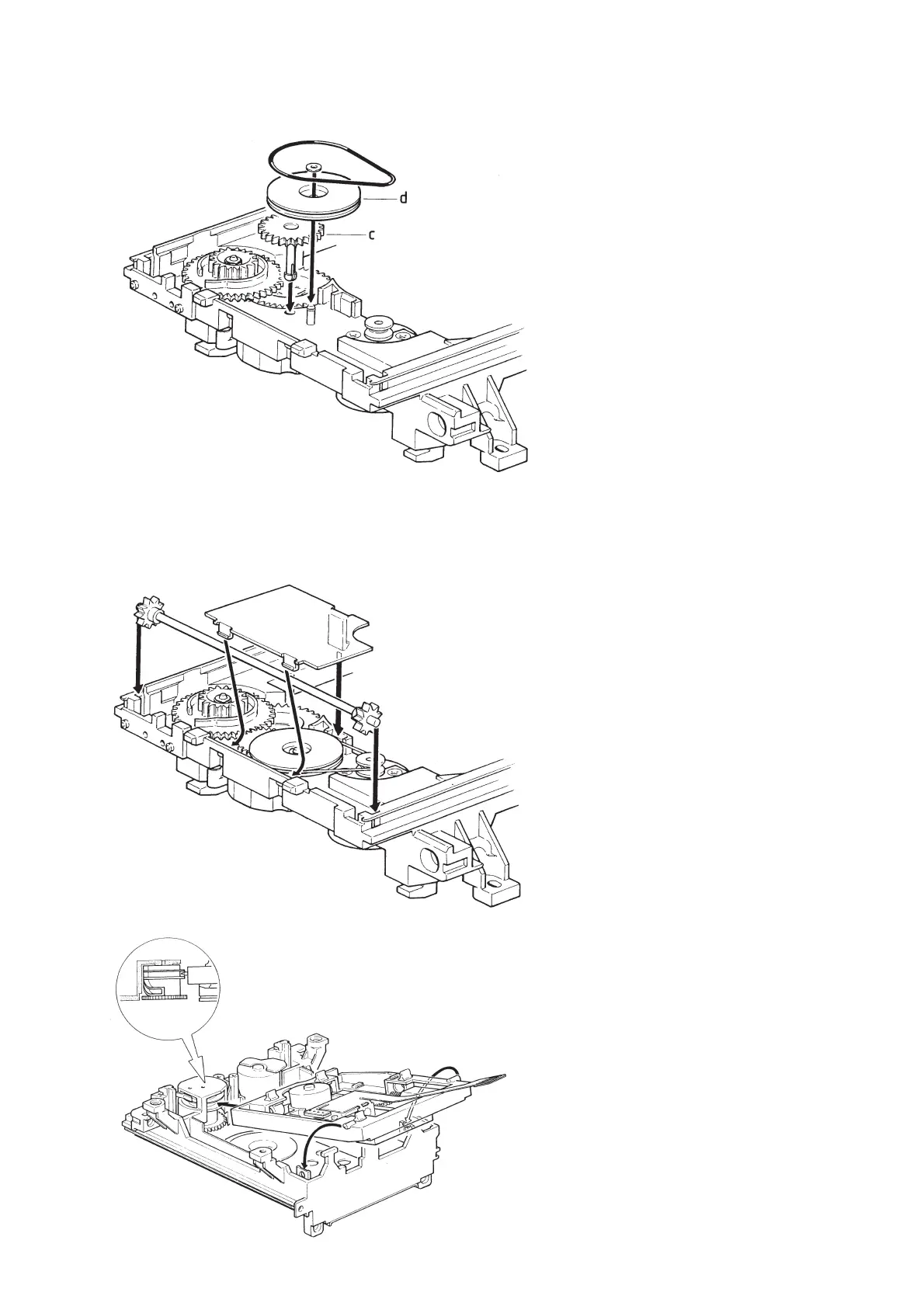

c) Mount idle wheel 2 (c) and idle wheel 1 (d) in any
position. See Fig. 3.
d) Fix the idle wheel 1 (d) with the small plastic washer.
e) Mount the driving belt.
f) Mount the pinion guiding assy and the cover as shown in
Fig. 4.
g) Turn the gear wheel (b) counter clockwise to
endposition.
Check if tray mechanism works correctly!
1) Turn the gear wheel (b) clockwise to its endposition
(Use a small screwdriver as shown in Fig. 1 step 1).
The tray has to move to inner position first and then the
CD mechanism has to move to its upper position.
2) Turn the gear wheel (b) counter clockwise to its
endposition.
The CD Mechanism has to move to its lower position first
and then the tray has to move outside.
h) Mount the CD Mechanism as shown in Fig. 5.
i) Mount the tray (Align the tray to the chassis and push it
inside).
Fig. 3
Fig. 4
Fig. 5
