q ANALOG OUT connectors ··························· (7)
w DIGITAL OUT COAXIAL connector ··········· (12)
e DIGITAL OUT OPTICAL connector ············ (12)
r REMOTE CONTROL IN /
OUT connectors ············································ (12)
t EXTERNAL/INTERNAL switch ·················· (12)
y AC inlet (AC IN) ············································· (7)
Part names and functions
q POWER button ·············································· (8)
w OPEN/CLOSE button (5) ····························· (8)
e SOUND MODE button ······························· (14)
r Auto music scan button (AMS) ··········· (11, 19)
t PROGRAM button ······································ (13)
y DISPLAY button ············································ (9)
u Pitch control down/reset/up buttons ······ (14)
(–/RESET/+)
i REPEAT button ······································ (10,18)
o Play button (1) ············································· (8)
Q0 Track skip buttons (8, 9) ················ (8, 9)
Q1 Search buttons (6, 7) ······················· (8, 9)
Q2 Number buttons (0 – 9) ································ (9)
Q3 MENU, ENTER button ································ (14)
Q4 A-B repeat button (A-B) ······················· (10, 18)
Q5 CANCEL button ·········································· (13)
Q6 RANDOM button ·································· (11, 19)
Q7 SCROLL/RECALL button ···························· (13)
Q8 TEXT button ············································ (9, 18)
Q9 TIME button ·················································· (9)
W0 Amplifi er operation buttons
Volume button (d, f)
Input button (u, i)
MUTE button
W1 Q. REPLAY button ······································ (16)
W2 Pause button (3) ·········································· (8)
W3 Stop button (2) ············································ (8)
• The supplied remote control can operate Marantz
amplifi ers.
• When using it, also refer to the operating
instructions of the other devices.
NOTE
The remote control may not operate some devices.

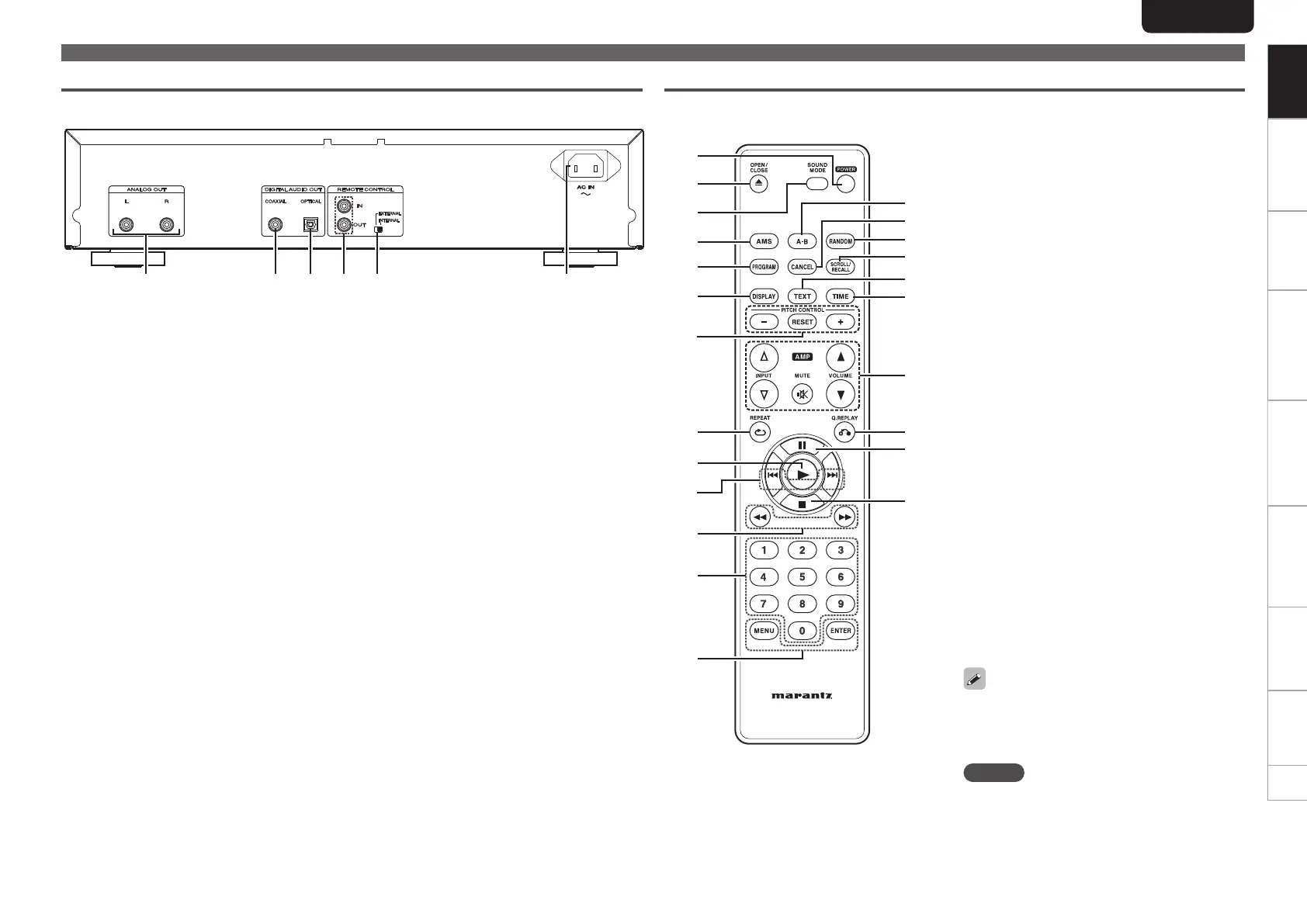

Rear panel Remote control
yr tq w e
w
r
i
W1
W2
W3
Q6
Q9
u
Q2
Q1
t
y
Q0
Q3
Q4
Q5
W0
o
q
e
Q8
Q7
