Cautions in Assembling and Disassembling

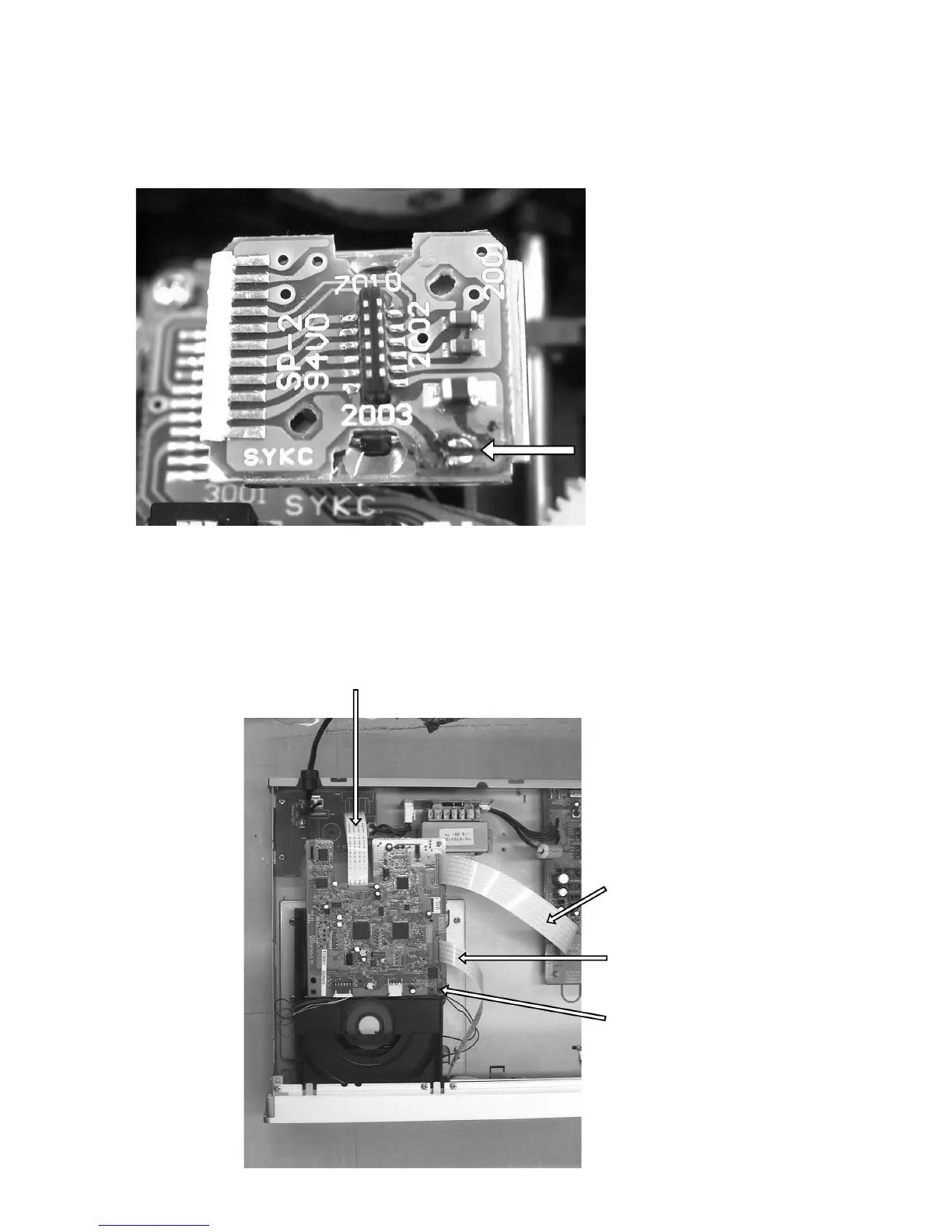

When removing the flat wire PS01, connecting the optical pick up and
the CD decorder board, short-cut the two lands pointed by the arrow
with solder. Otherwise the laser diode may be damaged by static electricity.
CD Decorder Board (PS01) Repair
When Repairing the CD decorder board PS01, you can fix the board on the loader unit
as shown in the pictuer below with the flat wires that are provided as service parts.
15P YU15170010
24P YU24230520
20P *YU001030R
PCB Fix Screw
