29
Front panel
For buttons not explained here, see the page indicated in parentheses ( ).

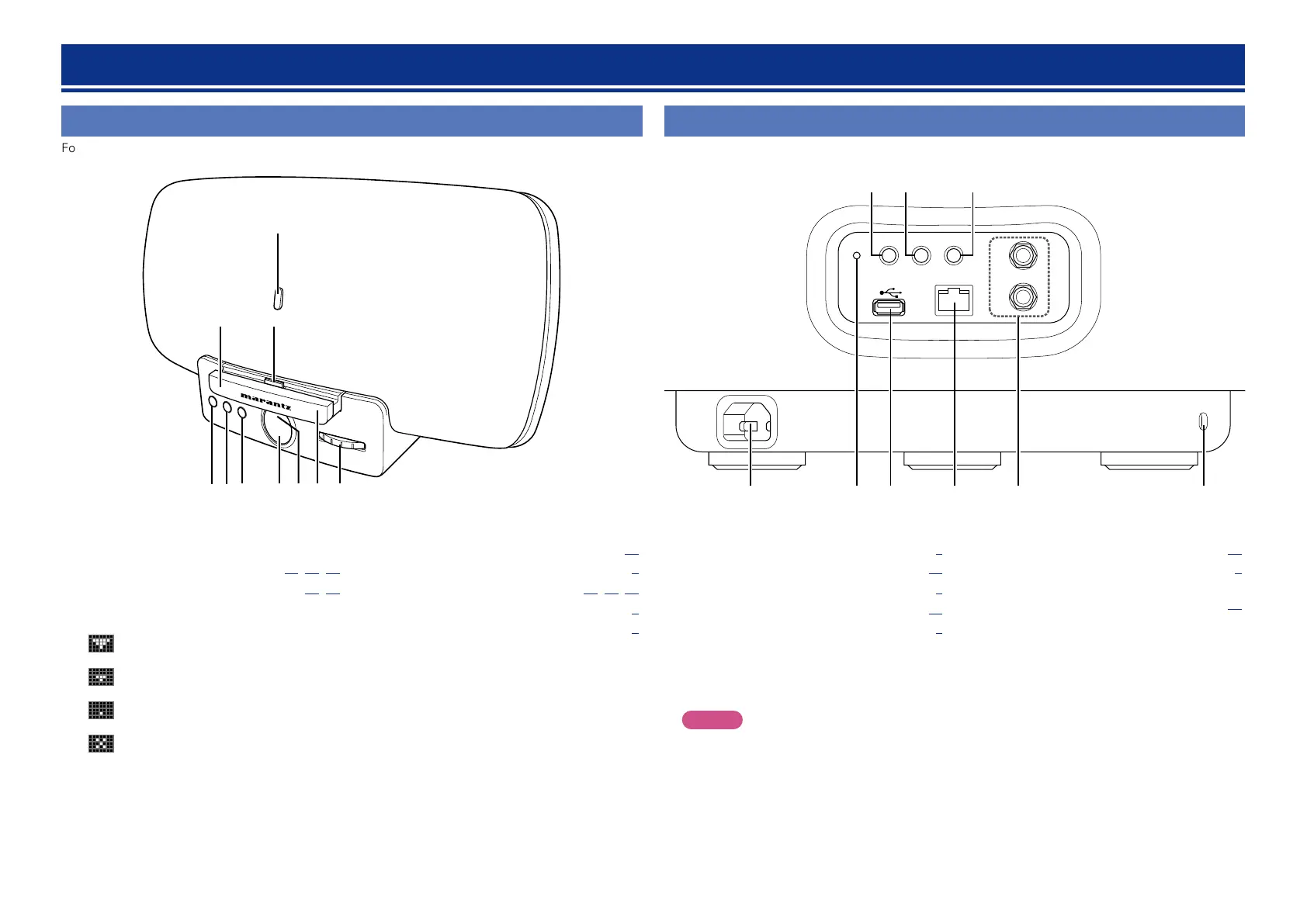

Part names and functions
Rear panel
See the page indicated in parentheses ( ).
NETLINKWPS
NETWORK
L
R
LINE IN
WIRELESS LAN
ON/STANDBY
wq e r t y
uio
q AC inlet ·························································· (5)
w Reset hole ··················································· (36)
e USB port ························································ (5)
r Network connector (NETWORK) ·············· (10)
t LINE IN connectors ······································· (5)
y Security slot
You can attach a security cable to deter theft.
Use a security cable that is compatible with this
unit. For details, contact your dealer.
NOTE
Security cables have deterrent effects, but do
not completely prevent theft or misuse of this
unit.
u NETLINK button ········································· (11)
i WPS button ··················································· (9)
o Power operation button
(ON/STANDBY) ·········································· (13)
Turns power to this unit on and off (standby).
ELECTRONIC GYRO TOUCH
ENTER
FUNCTION
PLAY/PAUSE
q
o
Q0
i
e
w
r y ut
q PLAY/PAUSE button
w FUNCTION button ·························· (13, 22, 36)
e ENTER button ······································· (22, 36)
r Display
GWireless LAN signal strengthH
: Strong
: Medium
: Weak
: Not connected
t Power indicator ·········································· (13)
y Dock ······························································· (6)
u GYRO ··············································· (13, 22, 36)
i Dock connector ············································· (6)
o Remote control sensor ································ (3)
Q0 CLOTH PROTECTOR
A rest for the back of an iOS device.
