Marantz DV7600 - Page 38

51
⵾ຠ᭎ⷐ
․ᓽ

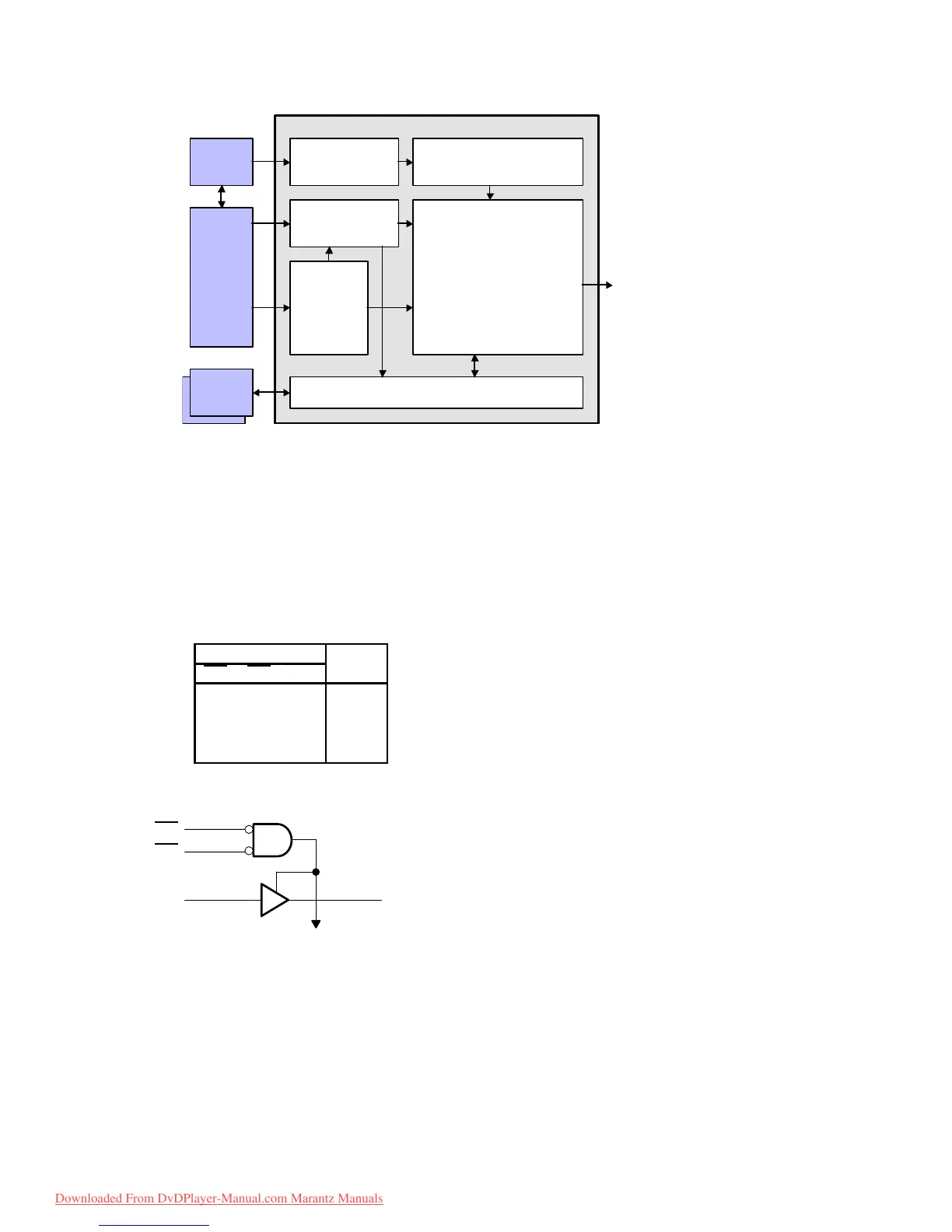

MPU Int e r f ac e
Timing Generator
Input
Interface
Video Processing Engine
SDRAM Interface
MPEG2 Video Decoder
or
Digital Video Decoder
MPU
SDRAM
SDRA M
Digital Out
Configuration Registers
IC51 : CD0040AF (I/P SCAN CONVER.)
IC53-IC57 : 74AHC541
FUNCTION TABLE
(each buffer/driver)
INPUTS
OUTPUT
OE1 OE2 A
Y
L L L L
L LH H
H XX Z
X H X Z
OE1
OE2
To Seven Other Channels
A1
Y1
1
19
218
