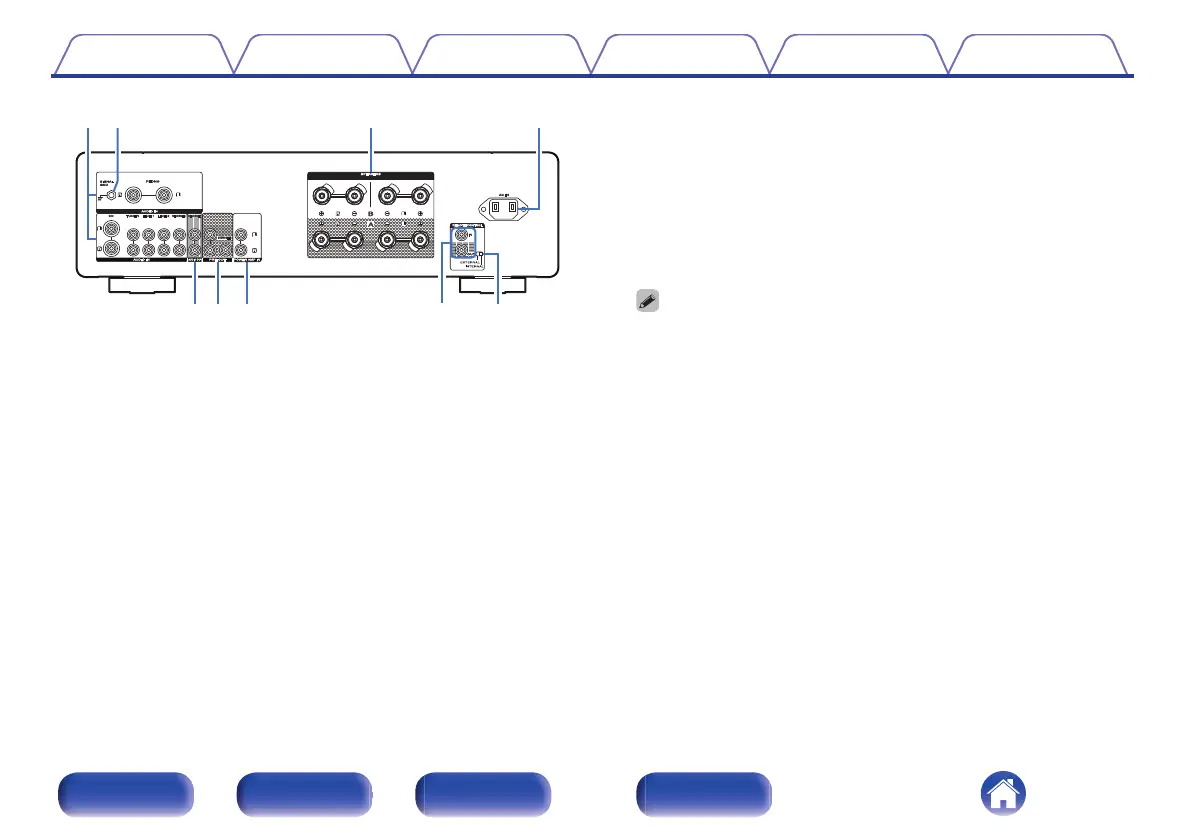

Marantz MODEL 50 - Rear Panel Ports and Switches; AC Inlet (AC IN); Analog Audio Input Connectors (AUDIO IN); SIGNAL GND Terminal

qw e r
uyt oi
A
Analog audio input connectors (AUDIO IN)
Used to connect devices equipped with analog audio output
connectors.
0
“Connecting a playback device” (v p. 19)
0
“Connecting a recording device” (v p. 20)
B
SIGNAL GND terminal
Used to connect the ground wire of a turntable. (v p. 19)
C
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 14)
D
AC inlet (AC IN)
Used to connect the power cord. (v p. 24)
E
AUDIO OUT connectors (RECORDER)
Used to connect the input connector of a recorder. (v p. 20)
F
PRE OUT connectors
Use this to add such equipment as a power amplifier or subwoofer.
0
“Subwoofer connection” (v p. 18)
0
“Connecting a pre-amplifier or power amplifier” (v p. 21)
0
When connecting a subwoofer, also consult the subwoofer instruction manual.
G
Power amplifier connectors (POWER AMP IN)
Used to connect a pre-amplifier when this unit is used as a power
amplifier. (v p. 21)
H
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v p. 22)
I
EXTERNAL/INTERNAL switch
Turn this switch to “EXTERNAL” to operate the unit by pointing the
remote control at the audio device connected to this unit using the
remote control connection. (v p. 22)
