Marantz PM4200 - Page 11

50
Figure 1
OUTINOUTIN
CD-RMD/TAPE AUX/DVD TUNERCD
R L
R L
SYSTEM 2
SYSTEM 1
SPEAKER SYSTEMS
SYSTEM 1 : 4 -16 OHMS
SYSTEM 2 : 4 -16 OHMS
SYSTEM 1+2 : 8 -16 OHMS
L
R
PHONO
GND
Tighten the terminal
5 mm
Loosen the terminal Inset the core

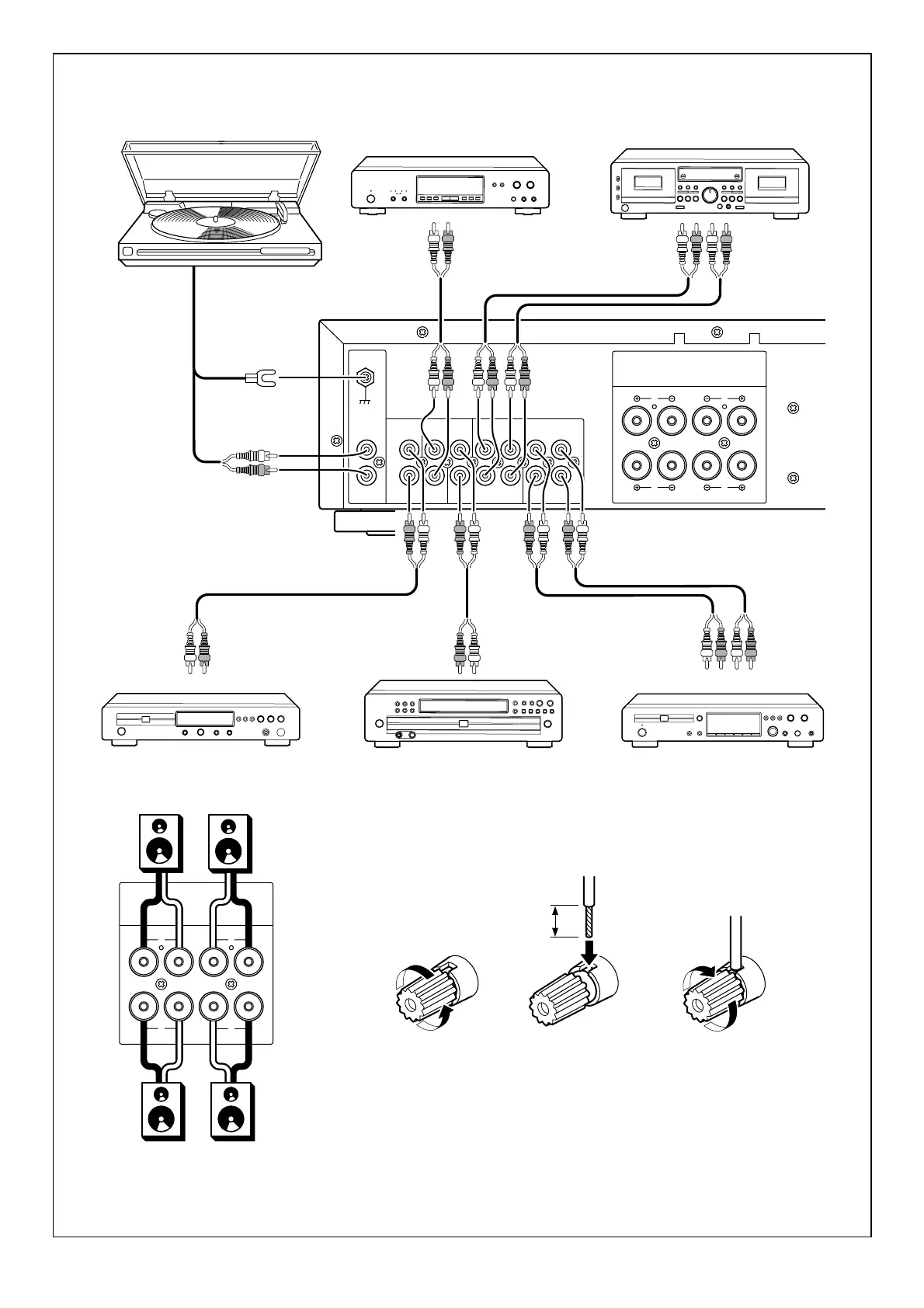

Connection of speaker cable
CD player
Analog output jacks of DVD player,
AV components, video disc player, etc.
CD recorder
MD or Tape deck
Tuner
Turntable
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
INPUT
INPUT
R L
R L
SYSTEM1
SYSTEM2
SPEAKER SYSTEMS
SYSTEM 1 : 8 -16 OHMS
SYSTEM 2 : 8 -16 OHMS
SYSTEM 1+2 : 16 OHMS
