14
Setup Examples

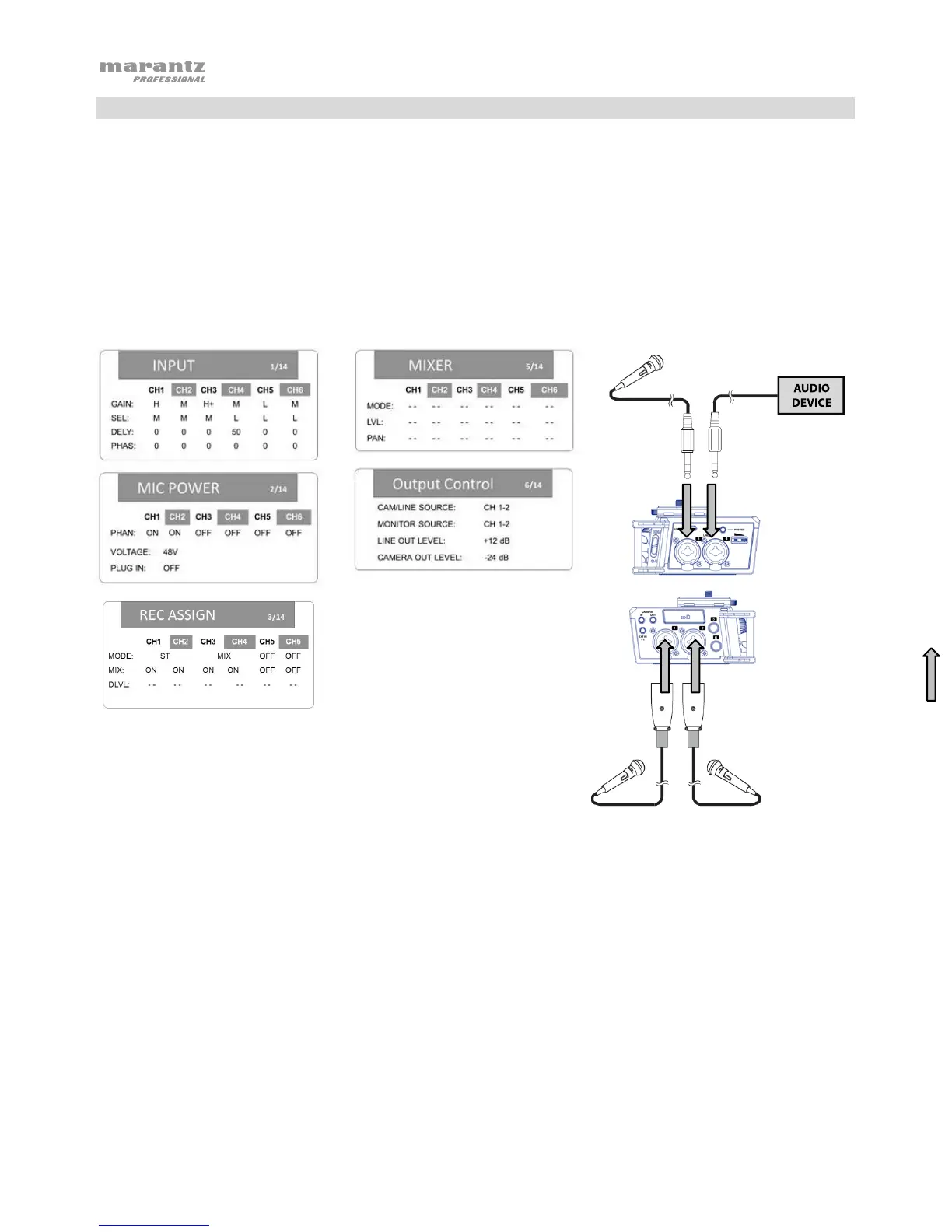

Example 1 – Mono/Stereo Recording
This example shows:
- condenser microphones on Inputs 1 and 2 (using +48V phantom power)
- a dynamic microphone on Input 3
- an audio device on Input 4 with a 50 ms delay
The menu options are configured to record a stereo file from Inputs 1 and 2 and two mono files from
Inputs 3 and 4.
The recorded files will be named as follows:
PMD706_0001_CH3_M.WAV
PMD706_0001_CH4_M.WAV
PMD706_0001_CH12_St.WAV
