P801
P851
10. EXPLODED VIEW AND PARTS LIST

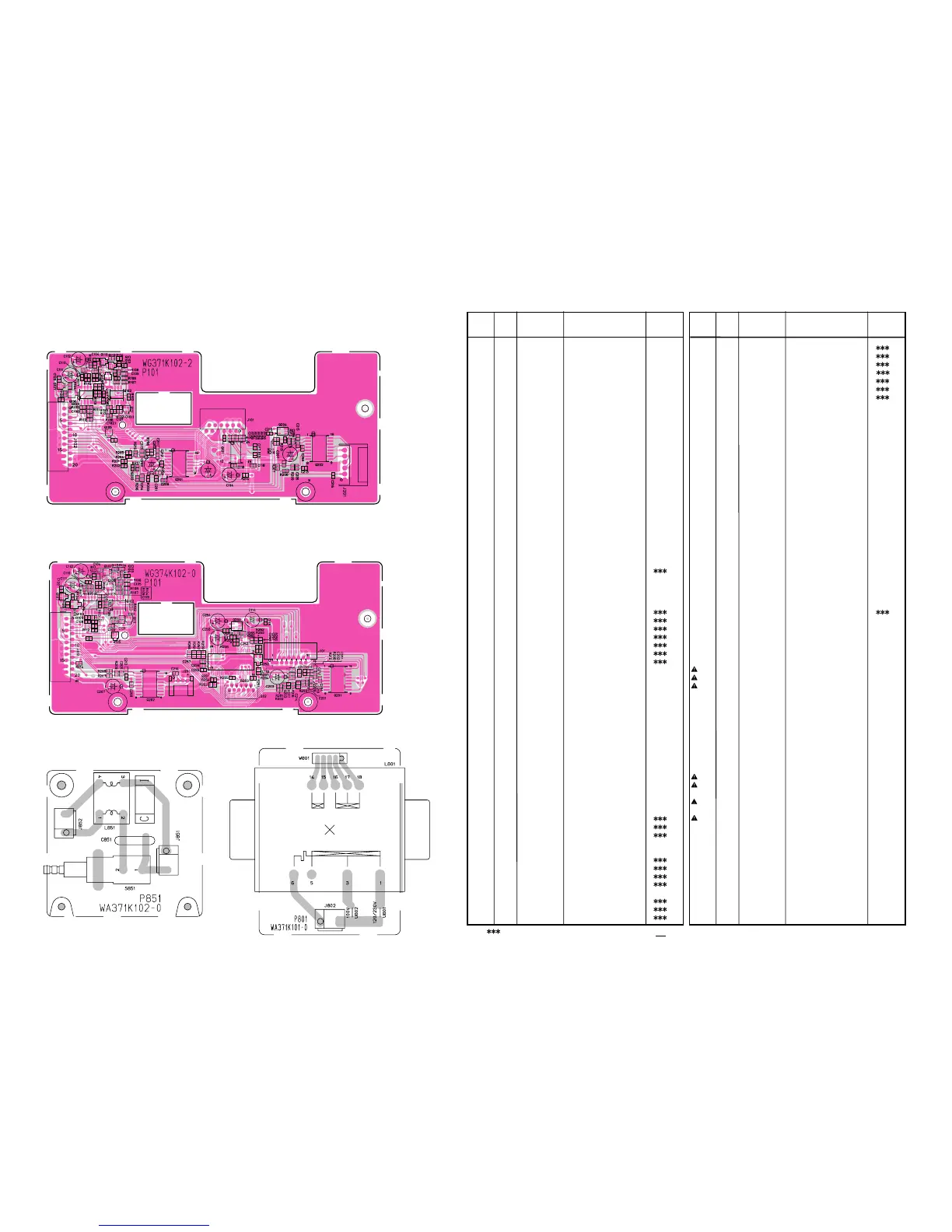

P101 (PMD340)
Q107 Q106 Q103 Q102
Q110 Q108 Q112
Q105 Q111 Q202 Q201
Q251 Q204 Q252
P101 (PMD330, PMD331)
Q107 Q106 Q103 Q102
Q110 Q108 Q112
Q105 Q111 Q201 Q101 Q204 Q202
27 28
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
001B BLACK FRONT PANEL PMD330 BLK 371K248010
001B GRAY 9965 000 01604 FRONT PANEL PMD330 GRAY 371K248020
001B BLACK FRONT PANEL PMD331 BLK 371K248110
001B GRAY 9965 000 01726 FRONT PANEL PMD331 GRAY 371K248120
001B BLACK FRONT PANEL PMD340 BLK 371K248210
001B GRAY 9965 000 01721 FRONT PANEL PMD340 GRAY 371K248220
003B BLACK FRONT CHASSIS PMD330 BLK 371K105020
003B GRAY 9965 000 01605 FRONT CHASSIS PMD330
GRAY
371K105030
003B BLACK FRONT CHASSIS BLACK
PMD331/N,/U, PMD340/N
371K105040
003B GRAY 9965 000 01722 FRONT CHASSIS PMD331/340
GRAY
371K105050
003B 340/U FRONT CHASSIS PMD340 USA
BLACK
371K105060
005B BLACK WINDOW BLK 371K158010
005B GRAY 9965 000 01606 WINDOW GRAY 371K158020
006B 9965 000 01607 IR LENS 371K355020
007B BLACK ESCUTCHEON 292K063220
007B 340/U ESCUTCHEON PMD340 USA 292K063260
007B GRAY 9965 000 01608 ESCUTCHEON 292K063230
009B BLACK POWER BUTTON 371K270150
009B GRAY 9965 000 01609 POWER BUTTON 371K270160
010B BLACK BUTTON 371K270170
010B GRAY 9965 000 01610 BUTTON 371K270180
011B LCD SHEET
012B BLACK ROTARY KNOB PMD331/340
BLACK
372K154010
012B GRAY 9965 000 01723 ROTARY KNOB PMD331/340
GRAY
372K154020
013B LCD SPACER
015B LCD HOLDER
016B INSULATOR FOR 015B
017B LCD REFLECTOR
019B LCD LENS
020B WEIGHT FOR KNOB
021B BRACKET FOR PHONE JACK
023B BLACK KNOB FOR PHONE VOLUME 284T154310
023B GRAY 9965 000 01611 KNOB FOR PHONE VOLUME 284T154050
027B 9965 000 01612 BUTTON RUBBER 371K270010
029B 9965 000 01614 BUTTON MODE KEY 371K270020
031B 9965 000 01615 BUTTON END KEY 371K270030
033B 9965 000 01616 BUTTON A-B KEY 371K270040
035B 9965 000 01617 BUTTON PITCH KEY 371K270050
037B 9965 000 01618 BUTTON +/- KEY 371K270070
039B 9965 000 01619 BUTTON NEXT/PREV KEY 371K270080
041B 9965 000 01620 BUTTON FF/FR KEY 371K270090
043B 9965 000 01621 BUTTON STOP KEY 371K270100
045B 9965 000 01622 BUTTON CUE KEY 371K270110
047B 9965 000 01623 BUTTON PLAY KEY 371K270120
001D /U1B LID TOP COVER BLACK 292J257030
003D /U1B MOUNT BRACKET L 371K160040
005D /U1B MOUNT BRACKET R 371K160050
001G CHASSIS
003G SIDE BRACKET L
007G SIDE BRACKET R
011G 9965 000 01624 LEG BLACK 371K057010
012G BUFFER FOR LEG 371K056020
015G LOADER BRACKET
026G BRACKET FOR PD01
030G SUPPORT FOR PD01
031G SUPPORT FOR P801
037G 4822 402 10913 LINK 318K121010
039G /U SCREW FOR GND
045G LABEL FOR GND
060G SHEET
062G STICKER
092G INNER LASER CAUTION
094G LABEL LASER CAUTION
901G REAR PANEL
907G LABEL
909G B.H. TAP. SCREW
911G PH.TAP.SCREW
001M 9965 000 01625 NEW LOADER LM302
OLD TRAY BLK
305K304680
005M 4822 464 10054 FRAME K 305K401500
010M 4822 361 21741 MOTOR MM0030002R
015M 4822 321 63208 CABLE YB00380590
016M 4822 271 30873 MINI SWITCH SM01020620
020M 4822 522 33521 GEAR 305K058030
021M 4822 528 81537 PULLEY 305K262010
025M 4822 522 33522 GEAR K 305K058500
030M 4822 358 31325 BELT 305K264010
031M 4822 459 50976 MASK 305K303010
035M 4822 443 51265 CASE 305K064110
036M 9965 000 01626 SUSPENSION 371K056010
040M 4822 402 11212 NEW LIFT ARM 305K002050
043M 9965 000 00234 CASE K NEW GEAR/OLD TRAY 305K064600
045M CASE BLACK 305K064010
046M SPRING 305K115010
050M CAM 305K054010
051M NEW SLIDER GEAR 305K058050
060M 4822 492 33495 SPRING 305K115020
501M 330,331 9965 000 01627 MECHANISM VAM 1202
9305 022 20200
371K304500
501M 340 9965 000 01724 MECHANISM VAM 1250
9305 022 25001
374K304500
510M BRACKET
518M STOPPER FOR DISC 371K114010
520M STOPPER FOR DISC 371K114020
522M ADHESIVE FOR 520M 371K122010
555M 330,331 CLAMPER ASSY VAM1202 371K005500
555M 340 9965 000 01725 CLAMPER ASSY VAM1250 374K005500
J001 /F 9965 000 01313 JACK 2P AC INLET M1910-H YJ04002440
J001 /N 9965 000 01313 JACK 2P AC INLET M1910-H YJ04002440
J001 /U JACK 3P AC INLET M1910-D YJ04002450
W051 9965 000 01602 JUMPER LEAD 20P FFC YU20170500
W052 9965 000 01603 JUMPER LEAD 30P FFC YU30170520
W053 331,340 JUMPER LEAD 5P FPC YU05090500
W054 331,340 JUMPER LEAD 5P FPC YU05090500
PACKING
001T /F USER MANUAL 371K851110
001T /N 9965 000 01628 USER MANUAL 371K851310
001T /U USER MANUAL 371K851250
W001 /F MAINS CORD 2P 12A 125V ZC02001180
W001 330/N
331/N
4822 321 11439 MAINS CORD 2P 10A 250V
CLASS2
ZC01803080
W001 340/N 4822 MAINS CORD 3P 10A 250V
CLASS1
ZC02003180
W001 /U MAINS CORD 3P 10A 125V ZC02002180
NOT STANDARD
SPEAR PARTS
001S 330 PACKING CASE PMD330 371K801010
001S 331 PACKING CASE PMD331 372K801010
001S 340 PACKING CASE PMD340 374K801010
003S CUSHION 371K809010
W004 /U AUDIO CABLE ZD01000330
NOTE : =PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
