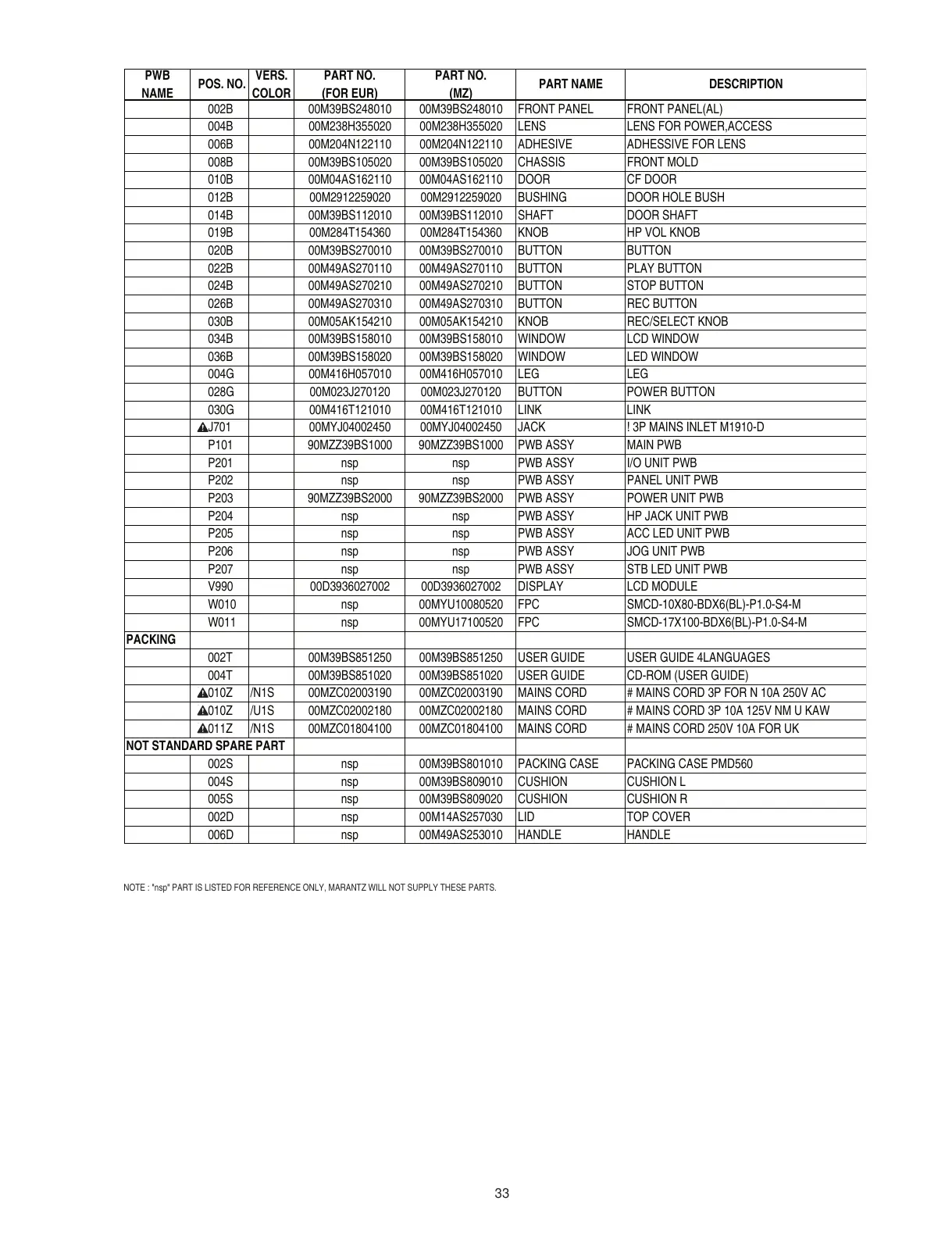

33
PWB
NAME
POS. NO.
VERS.
COLOR
PART NO.
(
FOR EUR
)
PART NO.
(
MZ
)
PART NAME DESCRIPTION
002B 00M39BS248010 00M39BS248010 FRONT PANEL FRONT PANEL(AL)
004B 00M238H355020 00M238H355020 LENS LENS FOR POWER,ACCESS
006B 00M204N122110 00M204N122110 ADHESIVE ADHESSIVE FOR LENS
008B 00M39BS105020 00M39BS105020 CHASSIS FRONT MOLD
010B 00M04AS162110 00M04AS162110 DOOR CF DOOR
012B 00M2912259020 00M2912259020 BUSHING DOOR HOLE BUSH
014B 00M39BS112010 00M39BS112010 SHAFT DOOR SHAFT
019B 00M284T154360 00M284T154360 KNOB HP VOL KNOB
020B 00M39BS270010 00M39BS270010 BUTTON BUTTON
022B 00M49AS270110 00M49AS270110 BUTTON PLAY BUTTON
024B 00M49AS270210 00M49AS270210 BUTTON STOP BUTTON
026B 00M49AS270310 00M49AS270310 BUTTON REC BUTTON
030B 00M05AK154210 00M05AK154210 KNOB REC/SELECT KNOB
034B 00M39BS158010 00M39BS158010 WINDOW LCD WINDOW
036B 00M39BS158020 00M39BS158020 WINDOW LED WINDOW
004G 00M416H057010 00M416H057010 LEG LEG
028G 00M023J270120 00M023J270120 BUTTON POWER BUTTON
030G 00M416T121010 00M416T121010 LINK LINK
!
J701 00MYJ04002450 00MYJ04002450 JACK ! 3P MAINS INLET M1910-D
P101 90MZZ39BS1000 90MZZ39BS1000 PWB ASSY MAIN PWB
P201 nsp nsp PWB ASSY I/O UNIT PWB
P202 nsp nsp PWB ASSY PANEL UNIT PWB
P203 90MZZ39BS2000 90MZZ39BS2000 PWB ASSY POWER UNIT PWB
P204 nsp nsp PWB ASSY HP JACK UNIT PWB
P205 nsp nsp PWB ASSY ACC LED UNIT PWB
P206 nsp nsp PWB ASSY JOG UNIT PWB
P207 nsp nsp PWB ASSY STB LED UNIT PWB
V990 00D3936027002 00D3936027002 DISPLAY LCD MODULE
W010 nsp 00MYU10080520 FPC SMCD-10X80-BDX6(BL)-P1.0-S4-M
W011 nsp 00MYU17100520 FPC SMCD-17X100-BDX6(BL)-P1.0-S4-M
PACKING
002T 00M39BS851250 00M39BS851250 USER GUIDE USER GUIDE 4LANGUAGES
004T 00M39BS851020 00M39BS851020 USER GUIDE CD-ROM (USER GUIDE)
!
010Z /N1S 00MZC02003190 00MZC02003190 MAINS CORD # MAINS CORD 3P FOR N 10A 250V AC
!
010Z /U1S 00MZC02002180 00MZC02002180 MAINS CORD # MAINS CORD 3P 10A 125V NM U KAW
!
011Z /N1S 00MZC01804100 00MZC01804100 MAINS CORD # MAINS CORD 250V 10A FOR UK
NOT STANDARD SPARE PART
002S nsp 00M39BS801010 PACKING CASE PACKING CASE PMD560
004S nsp 00M39BS809010 CUSHION CUSHION L
005S nsp 00M39BS809020 CUSHION CUSHION R
002D nsp 00M14AS257030 LID TOP COVER
006D nsp 00M49AS253010 HANDLE HANDLE
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
