Marantz PMD560 Service Manual

36

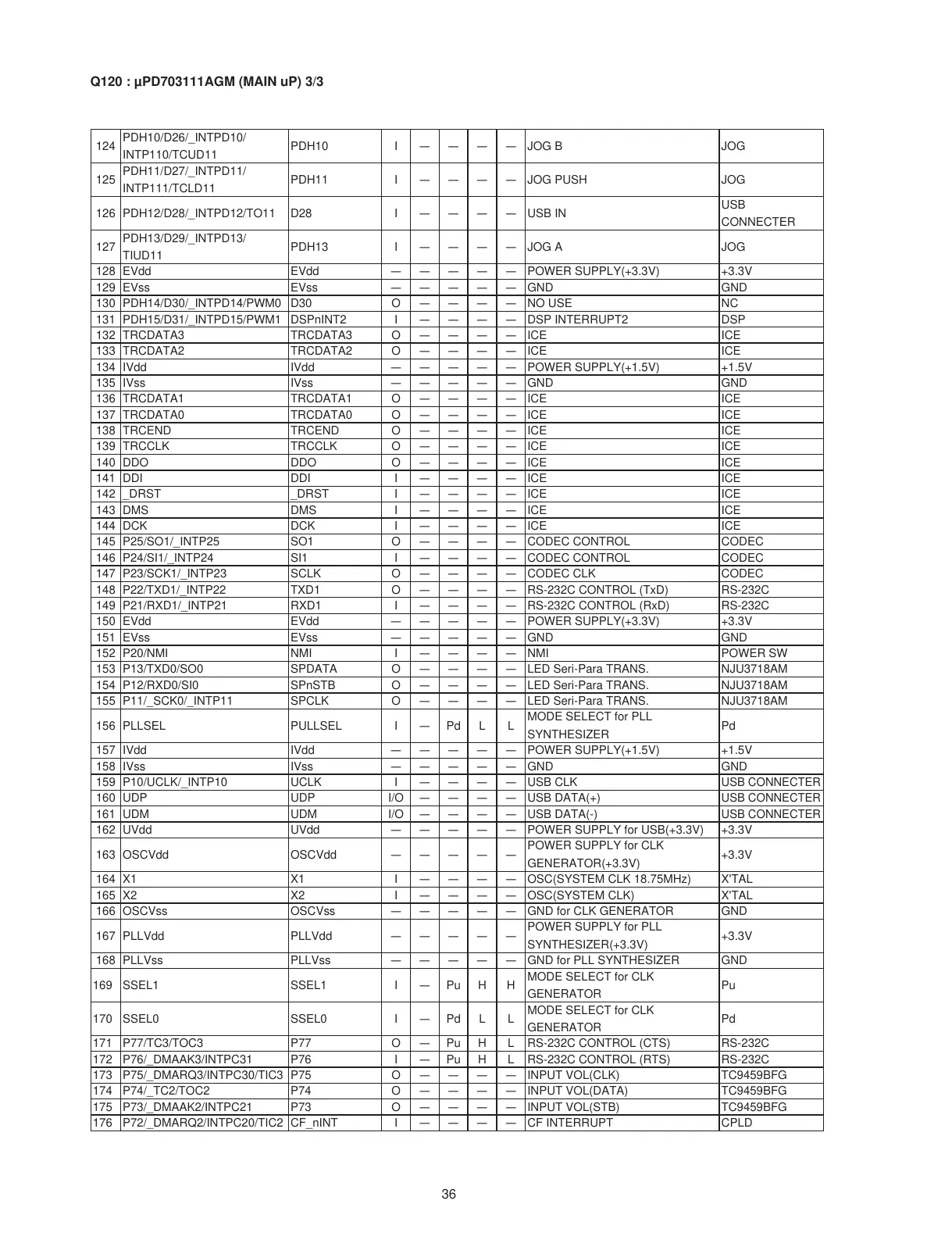

Q120 : µPD703111AGM (MAIN uP) 3/3
124
PDH10/D26/_INTPD10/
INTP110/TCUD11
PDH10 I –––– JOG B JOG
125
PDH11/D27/_INTPD11/
INTP111/TCLD11
PDH11 I
–––– JOG PUSH JOG
126 PDH12/D28/_INTPD12/TO11 D28 I
–––– USB IN
USB
CONNECTER
127
PDH13/D29/_INTPD13/
TIUD11
PDH13 I
–––– JOG A JOG
128 EVdd EVdd
––––– POWER SUPPLY(+3.3V) +3.3V
129 EVss EVss
––––– GND GND
130 PDH14/D30/_INTPD14/PWM0 D30 O
–––– NO USE NC
131 PDH15/D31/_INTPD15/PWM1 DSPnINT2 I
–––– DSP INTERRUPT2 DSP
132 TRCDATA3 TRCDATA3 O
–––– ICE ICE
133 TRCDATA2 TRCDATA2 O
–––– ICE ICE
134 IVdd IVdd
––––– POWER SUPPLY(+1.5V) +1.5V
135 IVss IVss
––––– GND GND
136 TRCDATA1 TRCDATA1 O
–––– ICE ICE
137 TRCDATA0 TRCDATA0 O
–––– ICE ICE
138 TRCEND TRCEND O
–––– ICE ICE
139 TRCCLK TRCCLK O
–––– ICE ICE
140 DDO DDO O
–––– ICE ICE
141 DDI DDI I
–––– ICE ICE
142 _DRST _DRST I
–––– ICE ICE
143 DMS DMS I
–––– ICE ICE
144 DCK DCK I
–––– ICE ICE
145 P25/SO1/_INTP25 SO1 O
–––– CODEC CONTROL CODEC
146 P24/SI1/_INTP24 SI1 I
–––– CODEC CONTROL CODEC
147 P23/SCK1/_INTP23 SCLK O
–––– CODEC CLK CODEC
148 P22/TXD1/_INTP22 TXD1 O
–––– RS-232C CONTROL (TxD) RS-232C
149 P21/RXD1/_INTP21 RXD1 I
–––– RS-232C CONTROL (RxD) RS-232C
150 EVdd EVdd
––––– POWER SUPPLY(+3.3V) +3.3V
151 EVss EVss
––––– GND GND
152 P20/NMI NMI I
–––– NMI POWER SW
153 P13/TXD0/SO0 SPDATA O
–––– LED Seri-Para TRANS. NJU3718AM
154 P12/RXD0/SI0 SPnSTB O
–––– LED Seri-Para TRANS. NJU3718AM
155 P11/_SCK0/_INTP11 SPCLK O
–––– LED Seri-Para TRANS. NJU3718AM
156 PLLSEL PULLSEL I
– Pd L L
MODE SELECT for PLL
SYNTHESIZER
Pd
157 IVdd IVdd
––––– POWER SUPPLY(+1.5V) +1.5V
158 IVss IVss
––––– GND GND
159 P10/UCLK/_INTP10 UCLK I
–––– USB CLK USB CONNECTER
160 UDP UDP I/O –––– USB DATA(+) USB CONNECTER
161 UDM UDM I/O –––– USB DATA(-) USB CONNECTER
162 UVdd UVdd ––––– POWER SUPPLY for USB(+3.3V) +3.3V
163 OSCVdd OSCVdd
–––––
POWER SUPPLY for CLK
GENERATOR(+3.3V)
+3.3V
164 X1 X1 I
–––– OSC(SYSTEM CLK 18.75MHz) X'TAL
165 X2 X2 I
–––– OSC(SYSTEM CLK) X'TAL
166 OSCVss OSCVss
––––– GND for CLK GENERATOR GND
167 PLLVdd PLLVdd
–––––
POWER SUPPLY for PLL
SYNTHESIZER(+3.3V)
+3.3V
168 PLLVss PLLVss
––––– GND for PLL SYNTHESIZER GND
169 SSEL1 SSEL1 I
– Pu H H
MODE SELECT for CLK
GENERATOR
Pu
170 SSEL0 SSEL0 I
– Pd L L
MODE SELECT for CLK
GENERATOR
Pd
171 P77/TC3/TOC3 P77 O
– Pu H L RS-232C CONTROL (CTS) RS-232C
172 P76/_DMAAK3/INTPC31 P76 I
– Pu H L RS-232C CONTROL (RTS) RS-232C
173 P75/_DMARQ3/INTPC30/TIC3 P75 O
–––– INPUT VOL(CLK) TC9459BFG
174 P74/_TC2/TOC2 P74 O
–––– INPUT VOL(DATA) TC9459BFG
175 P73/_DMAAK2/INTPC21 P73 O
–––– INPUT VOL(STB) TC9459BFG
176 P72/_DMARQ2/INTPC20/TIC2 CF_nINT I
–––– CF INTERRUPT CPLD
