41

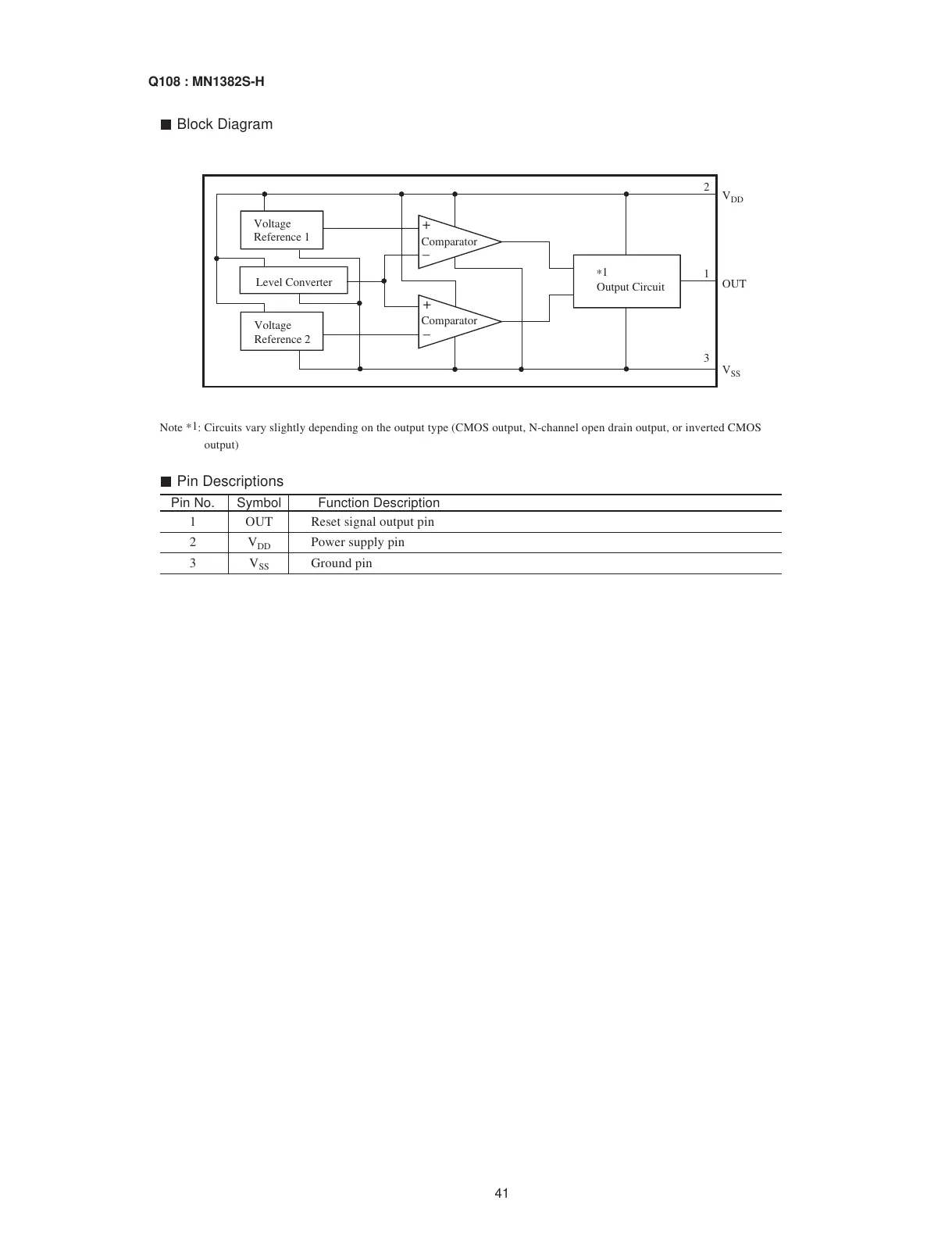

Block Diagram
Pin Descriptions
Pin No. Symbol Function Description
1 OUT Reset signal output pin
2V
DD
Power supply pin
3V
SS
Ground pin
Note *
1
: Circuits vary slightly depending on the output type (CMOS output, N-channel open drain output, or inverted CMOS
output)
Voltage
Reference 1
Voltage
Reference 2
Level Converter
Comparator
Comparator
Output Circuit
*
1
V
DD
OUT
V
SS
2
1
3
+
–
+
–
Q108 : MN1382S-H
