Marantz PMD560 Service Manual

47

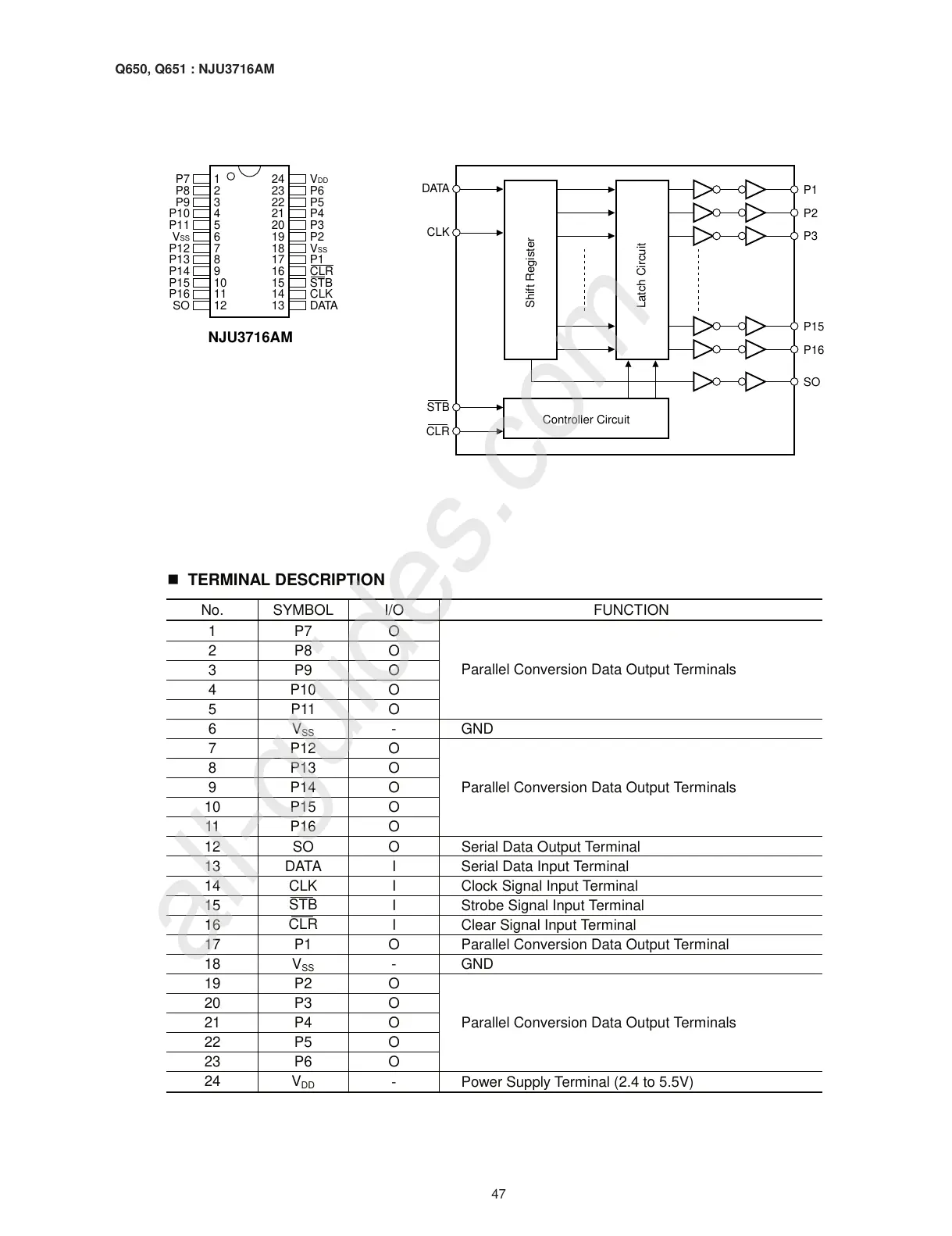

Q650, Q651 : NJU3716AM
1VDD24P7
2P623P8
3P522P9
4P421P10
5P320P11
6P219V
SS
7VSS18P12
8P117P13
9 CLR16P14
10 STB15P15
11 CLK14P16
12 DATA13
NJU3716AM
SO
Shift Register Latch Circuit
P1
DATA
CLK
STB
P2
P3
P15
P16
SO
CLR
Controller Circuit
TERMINAL DESCRIPTION
No. SYMBOL I/O FUNCTION
1 P7 O
2 P8 O
3 P9 O
4 P10 O
5 P11 O
Parallel Conversion Data Output Terminals
6 V
SS
- GND
7 P12 O
8 P13 O
9 P14 O
10 P15 O
11 P16 O
Parallel Conversion Data Output Terminals
12 SO O Serial Data Output Terminal
13 DATA I Serial Data Input Terminal
14 CLK I Clock Signal Input Terminal
15
STB
I Strobe Signal Input Terminal
16
CLR
I Clear Signal Input Terminal
17 P1 O Parallel Conversion Data Output Terminal
18 V
SS
- GND
19 P2 O
20 P3 O
21 P4 O
22 P5 O
23 P6 O
Parallel Conversion Data Output Terminals
24 V
DD
- Power Supply Terminal (2.4 to 5.5V)
