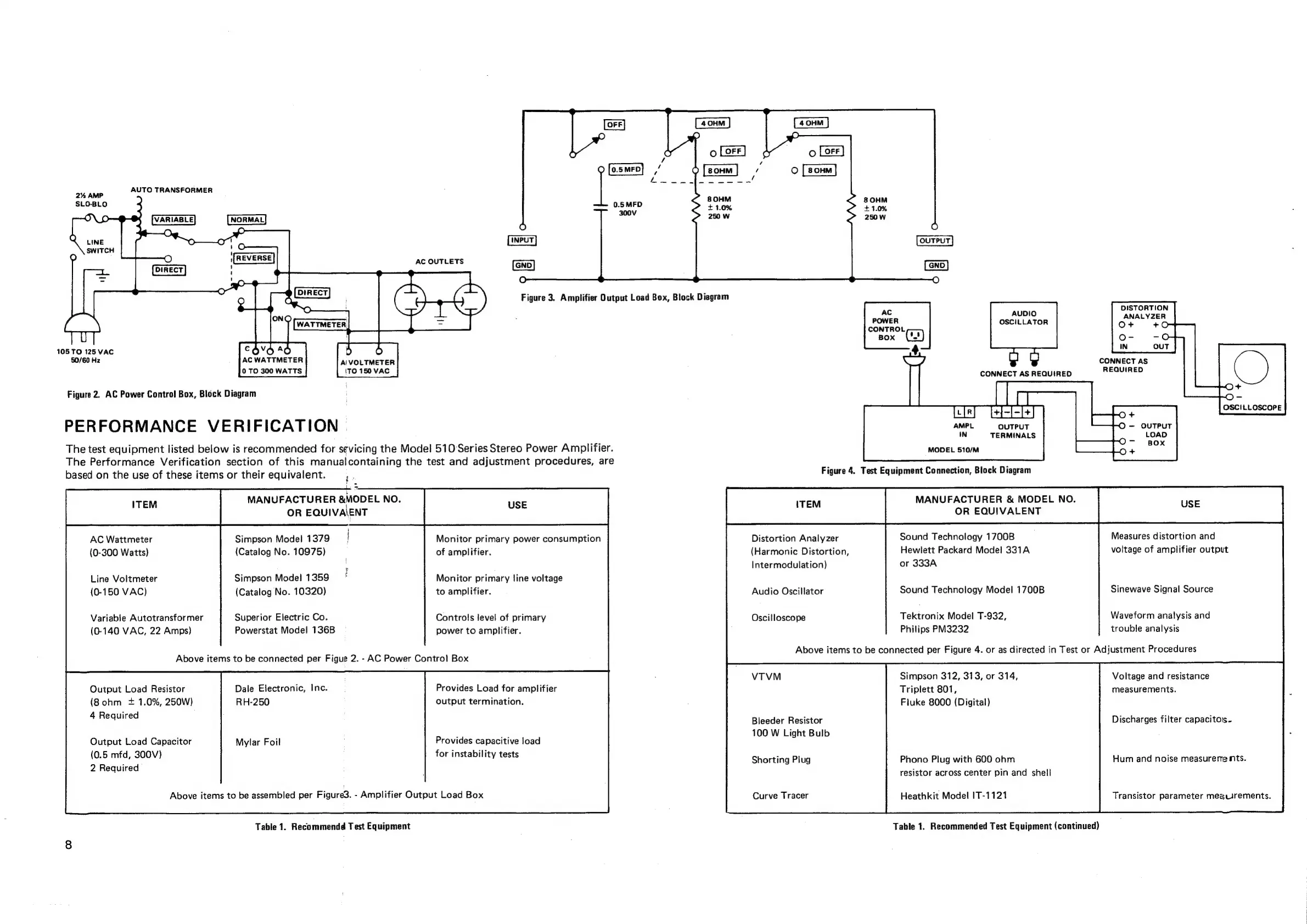

PERFORMANCE
VERIFICATION
The
test
equipment
listed
below
is
recommended
for
sevicing
the
Model
510
Series
Stereo
Power
Amplifier.
The
Performance
Verification
section
of
this
manualcontaining
the
test
and
adjustment
procedures,
are
based
on
the
use
of
these
items
or
their
equivalent.
bs
ITEM
MANUFACTURER
&MODEL
NO.
USE
OR
EQUIVA\ENT
AC
Wattmeter
Simpson
Model
1379
|
Monitor
primary
power
consumption
(0-300
Watts)
(Catalog
No.
10975)
of
amplifier.
Line
Voltmeter
Simpson
Model
1359
F
Monitor
primary
tine
voltage
(0-150
VAC)
(Catalog
No.
10320)
to
amplifier.
Variable
Autotransformer
Superior
Electric
Co.
Controls
level
of
primary
(0-140
VAC,
22
Amps}
Powerstat
Model
136B
power
to
amplifier.
Above
items
to
be
connected
per
Figue
2.
-
AC
Power
Control
Box
Output
Load
Resistor
Dale
Electronic,
Inc.
Provides
Load
for
amplifier
(8
ohm
+
1.0%,
250W)
RH-250
output
termination.
4
Required
Output
Load
Capacitor
Mylar
Foil
Provides
capacitive
load
(0.5
mfd,
300V)
for
instability
tests
2
Required
Above
items
to
be
assembled
per
Figure3.
-
Amplifier
Output
Load
Box
Table
1.
Recommendd
Test
Equipment
DISTORTION
ANALYZER
O+
AUDIO
OSCILLATOR
CONNECT
AS
REQUIRED
CONNECT
AS
REQUIRED
OSCILLOSCOPE
AMPL
OUTPUT
IN
TERMINALS
MODEL
510/M
Figure
4.
Test
Equipment
Connection,
Block
Diagram
MANUFACTURER
&
MODEL
NO.
M
Distortion
Analyzer
Sound
Technology
1700B
Measures
distortion
and
Hewlett
Packard
Model
331A
voltage
of
amplifier
output
or
333A
(Harmonic
Distortion,
Intermodulation)
Sound
Technology
Model
1700B
Sinewave
Signal
Source
Audio
Oscillator
Waveform
analysis
and
trouble
analysis
Tektronix
Model
T-932,
Philips
PM3232
Oscilloscope
Above
items
to
be
connected
per
Figure
4.
or
as
directed
in
Test
or
Adjustment
Procedures
Simpson
312, 313,
or
314,
Triplett
801,
Fiuke
8000
(Digital)
Voltage
and
resistance
measurements.
Discharges
filter
capacitors.
Bleeder
Resistor
100
W
Light
Bulb
Phono
Plug
with
600
ohm
Hum
and
noise
measureme
nts.
resistor
across
center
pin
and
shell
Shorting
Plug
Curve
Tracer
Heathkit
Model
IT-1121
Transistor
parameter
mesurements.
Table
1.
Recommended
Test
Equipment
(continued)
