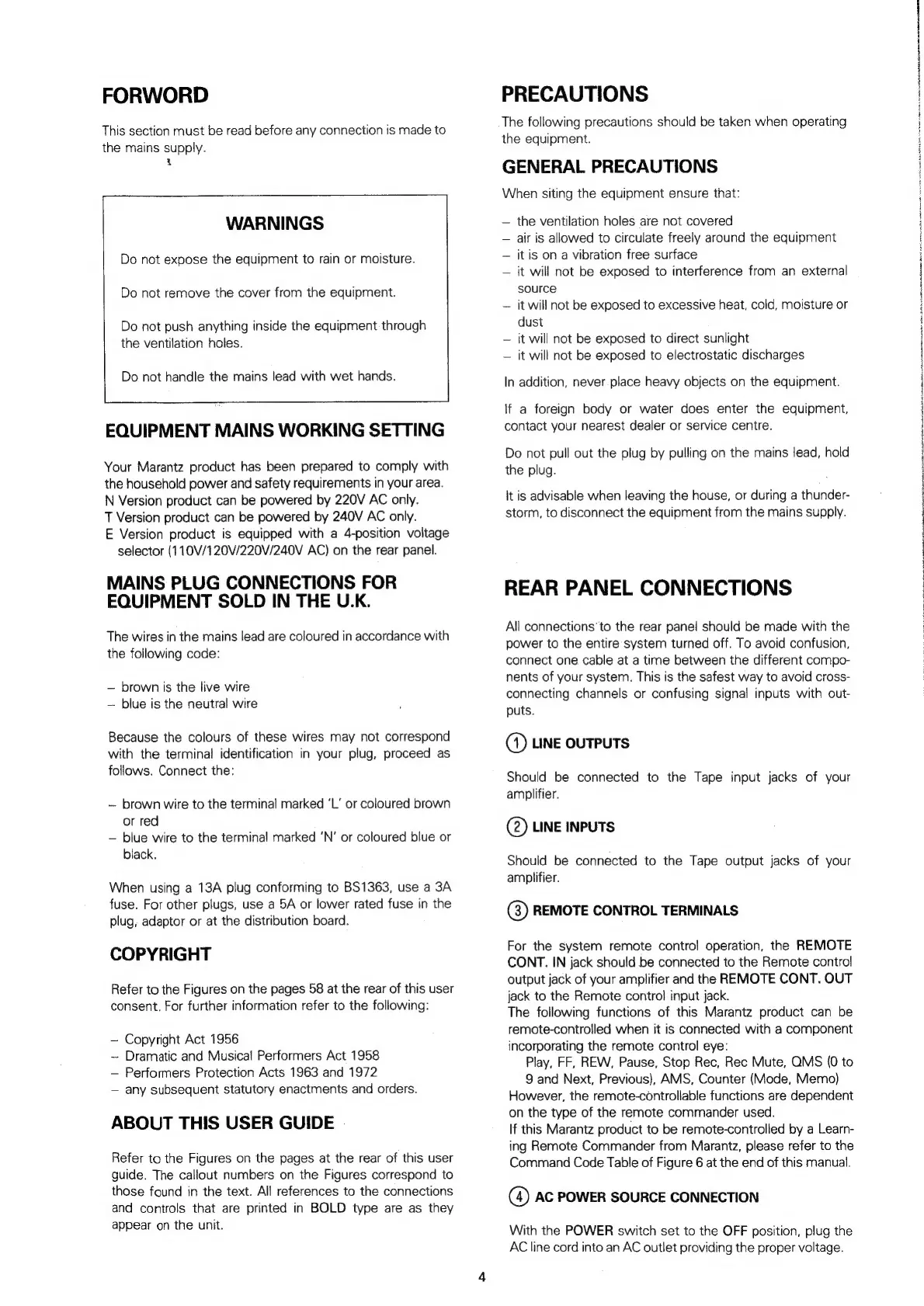

FORWORD
This section must be read before any connection is made to
the mains supply.
z
WARNINGS
Do not expose the equipment to rain or moisture.
Do not remove the cover from the equipment.
Do not push anything inside the equipment through
the ventilation holes.
Do not handle the mains lead with wet hands.
EQUIPMENT MAINS WORKING SETTING
Your Marantz product has been prepared to comply with
the household power and safety requirements in your area.
N Version product can be powered by 220V AC only.
T Version product can be powered by 240V AC only.
E Version product is equipped with a 4-position voltage
selector (110V/120V/220V/240V AC) on the rear panel.
MAINS PLUG CONNECTIONS FOR
EQUIPMENT SOLD IN THE U.K.
The wires in the mains lead are coloured in accordance with
the following code:
— brown is the live wire
— blue is the neutral wire
Because the colours of these wires may not correspond
with the terminal identification in your plug, proceed as
follows. Connect the:
— brown wire to the terminal marked ‘L’ or coloured brown
or red
— blue wire to the terminal marked ‘N’ or coloured blue or
black.
When using a 13A plug conforming to BS1363, use a 3A
fuse. For other plugs, use a 5A or lower rated fuse in the
plug, adaptor or at the distribution board.
COPYRIGHT
Refer to the Figures on the pages 58 at the rear of this user
consent. For further information refer to the following:
— Copyright Act 1956
~- Dramatic and Musical Performers Act 1958
— Performers Protection Acts 1963 and 1972
— any subsequent statutory enactments and orders.
ABOUT THIS USER GUIDE
Refer to the Figures on the pages at the rear of this user
guide. The callout numbers on the Figures correspond to
those found in the text. All references to the connections
and controls that are printed in BOLD type are as they
appear on the unit.
PRECAUTIONS
The following precautions should be taken when operating
the equipment.
GENERAL PRECAUTIONS
When siting the equipment ensure that:
— the ventilation holes are not covered
— air is allowed to circulate freely around the equipment
— it is on a vibration free surface
— it will not be exposed to interference from an external
source
— it will not be exposed to excessive heat, cold, moisture or
dust
— it will not be exposed to direct sunlight
— it will not be exposed to electrostatic discharges
In addition, never place heavy objects on the equipment.
If a foreign body or water does enter the equipment,
contact your nearest dealer or service centre.
Do not pull out the plug by pulling on the mains lead, hold
the plug.
It is advisable when leaving the house, or during a thunder-
storm, to disconnect the equipment from the mains supply.
REAR PANEL CONNECTIONS
All connections’to the rear panel should be made with the
power to the entire system turned off. To avoid confusion,
connect one cable at a time between the different compo-
nents of your system. This is the safest way to avoid cross-
connecting channels or confusing signal inputs with out-
puts.
(1) LINE OUTPUTS
Should be connected to the Tape input jacks of your
amplifier.
(2) LINE INPUTS
Should be connected to the Tape output jacks of your
amplifier.
(3) REMOTE CONTROL TERMINALS
For the system remote control operation, the REMOTE
CONT. IN jack should be connected to the Remote control
output jack of your amplifier and the REMOTE CONT. OUT
jack to the Remote control input jack.
The following functions of this Marantz product can be
remote-controlled when it is connected with a component
incorporating the remote control eye:
Play, FF, REW, Pause, Stop Rec, Rec Mute, OMS (0 to
9 and Next, Previous), AMS, Counter (Mode, Memo)
However, the remote-controllable functions are dependent
on the type of the remote commander used.
If this Marantz product to be remote-controlled by a Learn-
ing Remote Commander from Marantz, please refer to the
Command Code Table of Figure 6 at the end of this manual.
(4) AC POWER SOURCE CONNECTION
With the POWER switch set to the OFF position, plug the
AC line cord into an AC outlet providing the proper voltage.
