Marantz SD1010 - Page 10

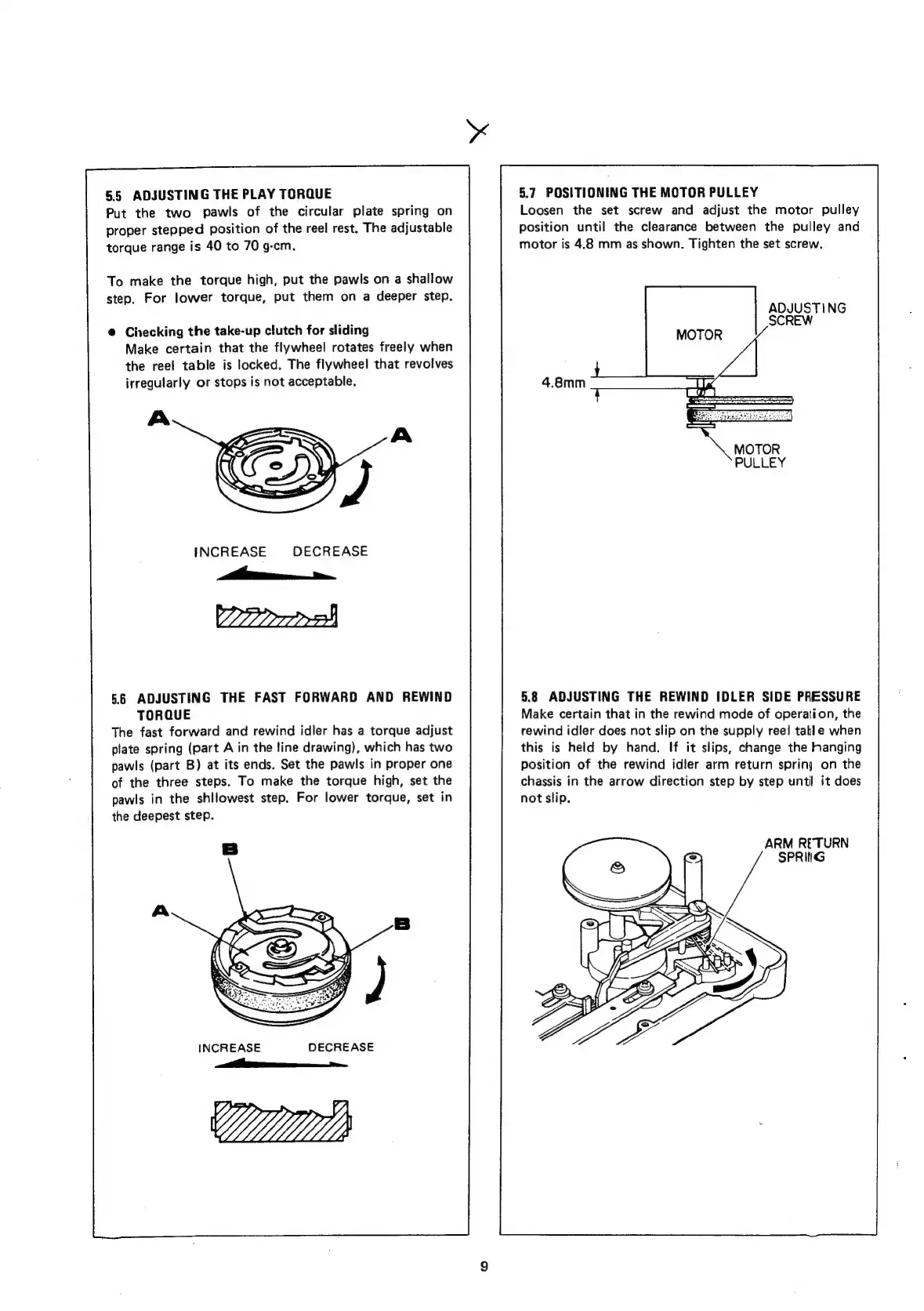

5.5 ADJUSTING THE PLAY TORQUE
Put the two pawls of the circular plate spring on
proper
stepped
position
of
the
reel
rest.
The
adjustable
torque range is 40 to 70 g-cm.
To
make
the
torque
high,
put
the
pawls
on
a
shallow
step.
For
lower
torque,
put
them
on
a
deeper
step.
@ Checking the take-up clutch for sliding
Make certain that the flywhee! rotates freely when
the reel table is locked. The flywheel that revoives
irregularly or stops is not acceptable.
INCREASE DECREASE
i
P2277 >=)
56
ADJUSTING
THE
FAST
FORWARD
AND
REWIND
TORQUE
The fast forward and rewind idler has a torque adjust
plate spring (part A in the line drawing), which has two
pawls (part B) at its ends. Set the pawls in proper one
of the three steps. To make the torque high, set the
pawls in the shllowest step. For lower torque, set in
the deepest step.
INCREASE DECREASE
i
LILIA
5.7 POSITIONING THE MOTOR PULLEY
Loosen the set screw and adjust the motor pulley
position until the clearance between the pulley and
motor is 4.8 mm as shown. Tighten the set screw.
ADJUSTING
SCREW
5.8 ADJUSTING THE REWIND IDLER SIDE PRESSURE
Make certain that in the rewind mode of operation, the
rewind idler does not slip on the supply ree! table when
this is held by hand. If it slips, change the hanging
position of the rewind idler arm return spring on the
chassis in the arrow direction step by step until it does
not slip.
ARM RETURN
SPRING
