Marantz SD1010 - Page 11

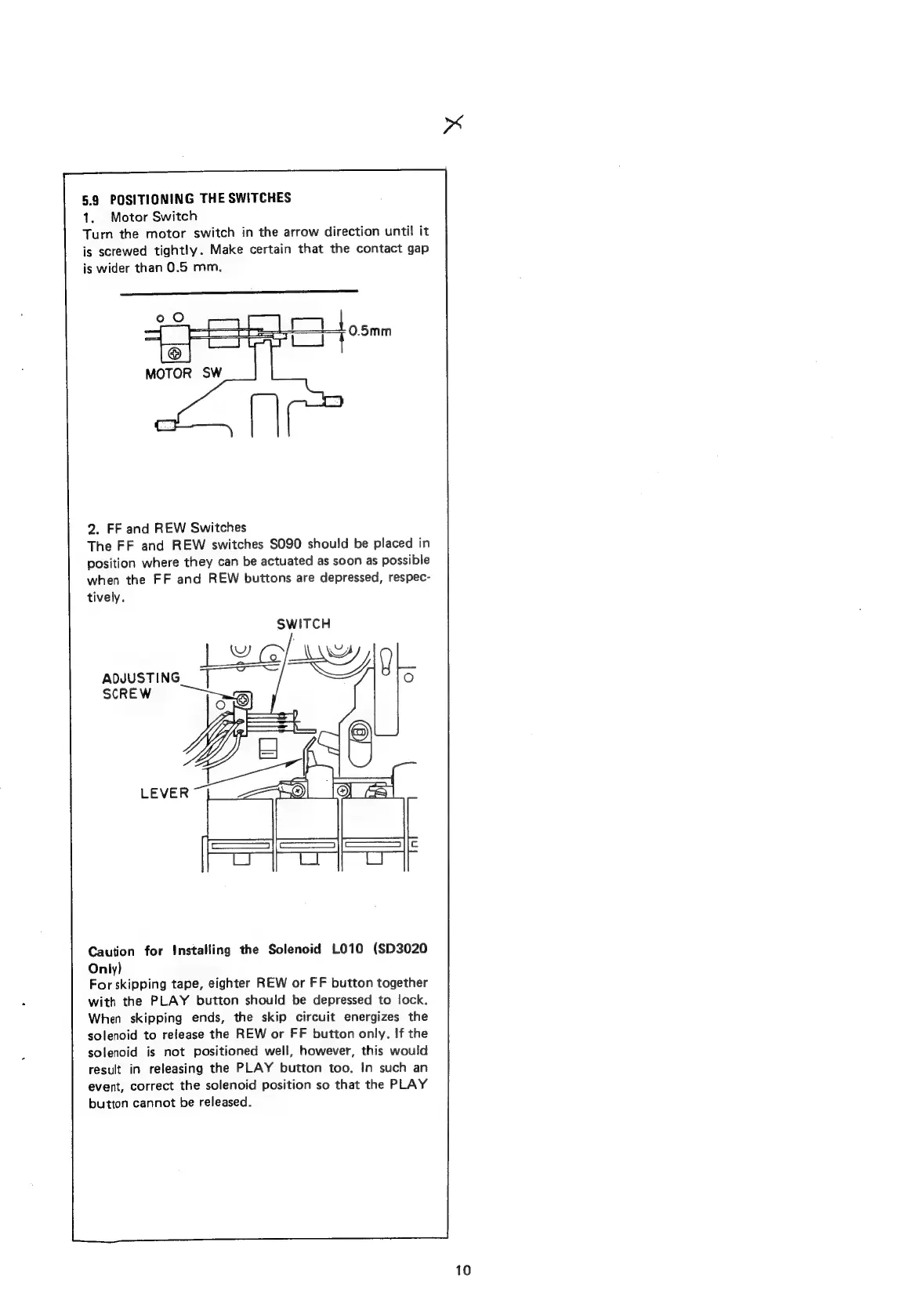

5.9
POSITIONING
THE
SWITCHES
1. Motor Switch
Turn
the
motor
switch
in
the
arrow
direction
until
it
is
screwed
tightly.
Make
certain
that
the
contact
gap
is
wider
than
0.5
mm.
2. FF and REW Switches
The
FF
and
REW
switches
S090
should
be
placed
in
position
where
they
can
be
actuated
as
soon
as
possible
when
the
FF
and
REW
buttons
are
depressed,
respec-
tively.
SWITCH
ADJUSTING
Caution
for
Installing
the
Solenoid
L010
(SD3020
Only)
For skipping tape, eighter REW or FF button together
with the PLAY button should be depressed to lock.
When skipping ends, the skip circuit energizes the
solenoid to release the REW or FF button only. If the
solenoid is not positioned well, however, this would
result in releasing the PLAY button too. In such an
event, correct the solenoid position so that the PLAY
button cannot be released.
10
