Marantz SD1010 - Page 7

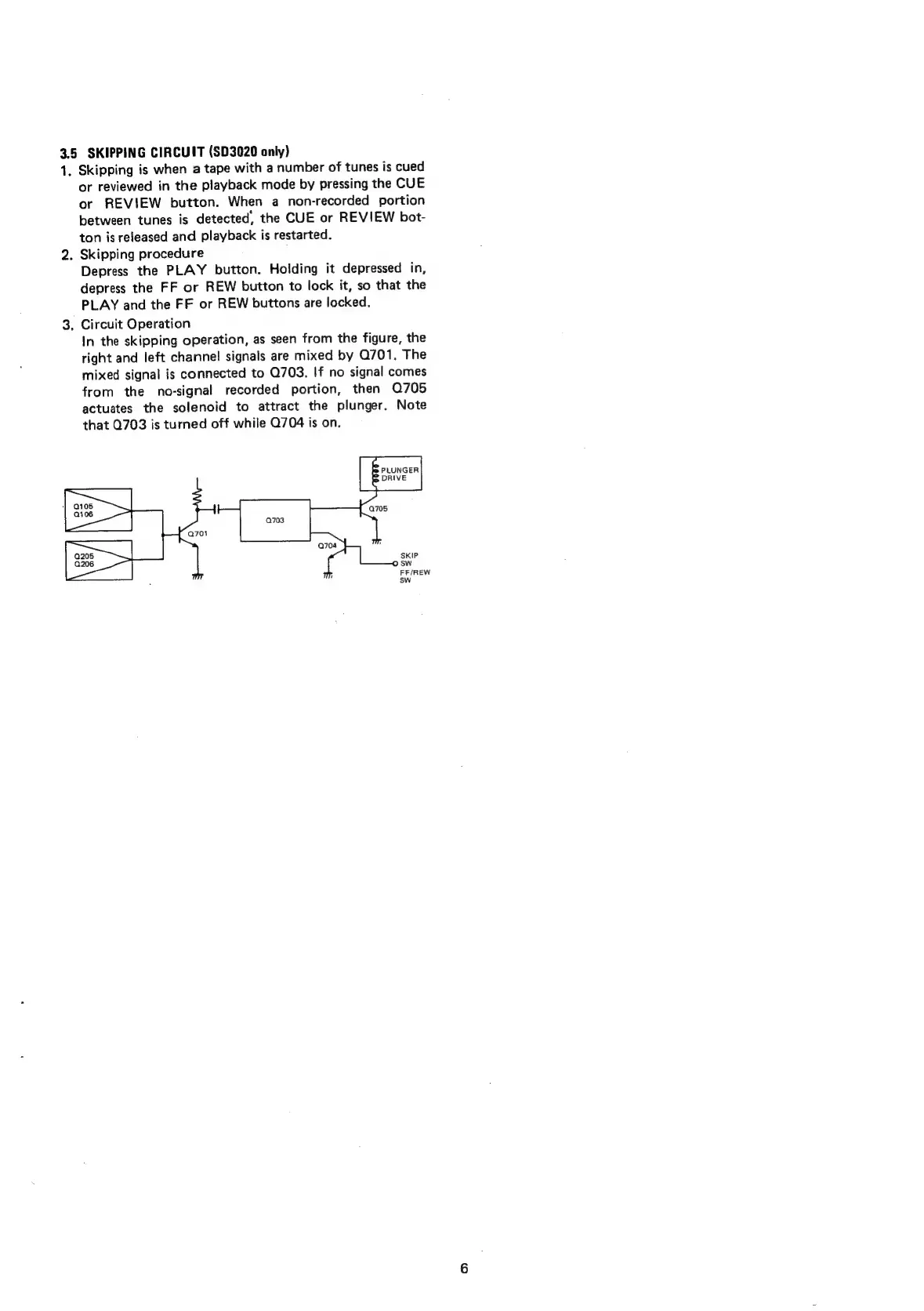

3.5
SKIPPING
CIRCUIT
(SD3020
only)
1.
Skipping
is
when
a
tape
with
a
number
of
tunes
is
cued
or
reviewed
in
the
playback
mode
by
pressing
the
CUE
or
REVIEW
button.
When
a
non-recorded
portion
between
tunes
is
detected,
the
CUE
or
REVIEW
bot-
ton
is
released
and
playback
is
restarted.
. Skipping procedure
Depress
the
PLAY
button.
Holding
it
depressed
in,
depress
the
FF
or
REW
button
to
lock
it,
so
that
the
PLAY
and
the
FF
or
REW
buttons
are
locked.
, Circuit Operation
In
the
skipping
operation,
as
seen
from
the
figure,
the
right
and
left
channel
signals
are
mixed
by
Q701.
The
mixed
signal
is
connected
to
Q703.
If
no
signal
comes
from
the
no-signal
recorded
portion,
then
Q705
actuates
the
solenoid
to
attract
the
plunger.
Note
that
0703
is
turned
off
while
Q704
is
on.
