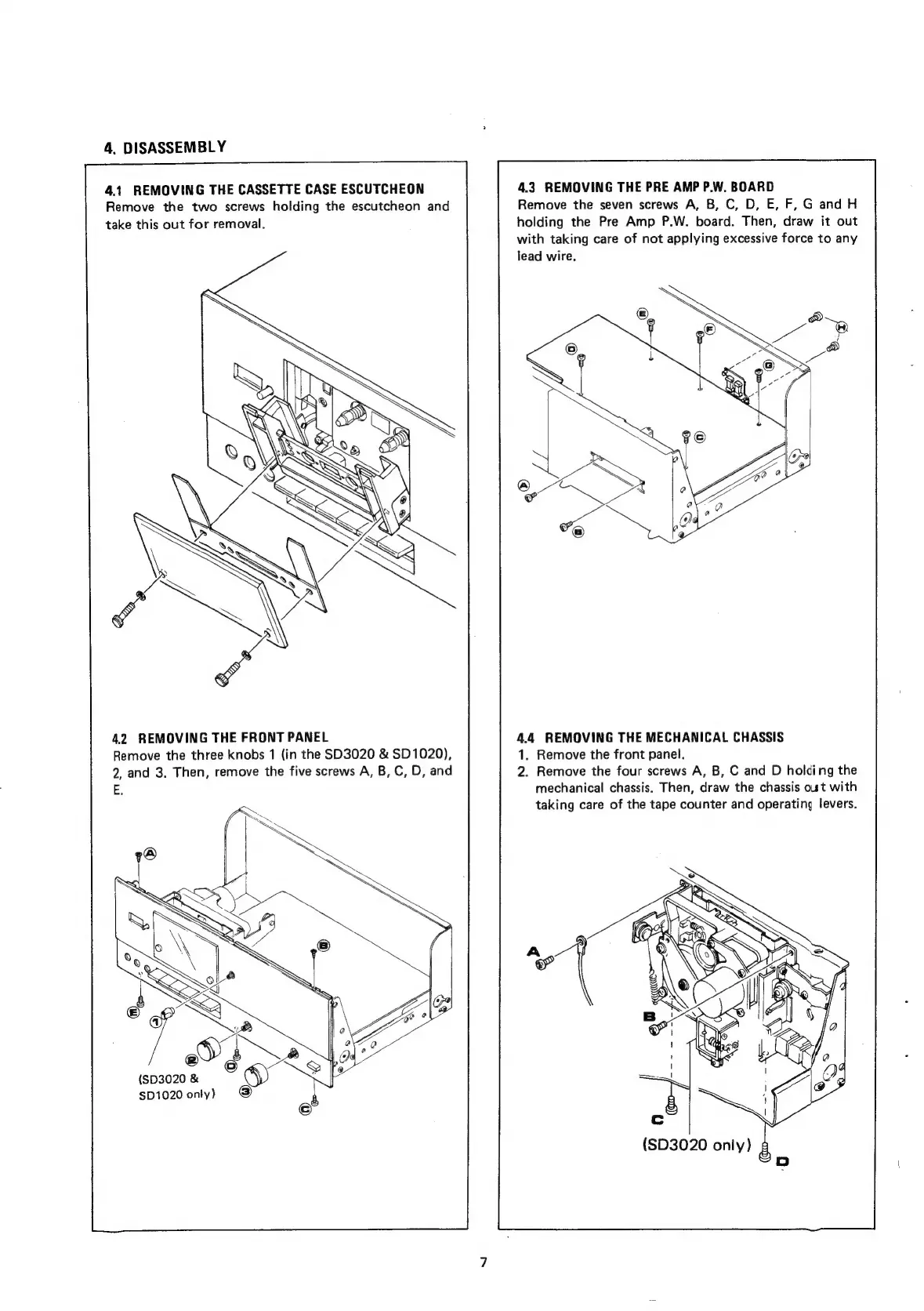

4. DISASSEMBLY
4.1 REMOVING THE CASSETTE CASE ESCUTCHEON
Remove the two screws holding the escutcheon and
take this out for removal.
4.2 REMOVING THE FRONT PANEL
Remove the three knobs 1 (in the SD3020 & SD1020),
2, and 3. Then, remove the five screws A, B, C, D, and
E.
(SD3020 &
§$D1020 only)
4.3 REMOVING THE PRE AMP P.W. BOARD
Remove the seven screws A, B, C, D, E, F, G and H
holding the Pre Amp P.W. board. Then, draw it out
with taking care of not applying excessive force to any
lead wire.
4.4 REMOVING THE MECHANICAL CHASSIS
1. Remove the front panel.
2. Remove the four screws A, B, C and D holding the
mechanical chassis. Then, draw the chassis out with
taking care of the tape counter and operating levers.
(SD3020 only)
