Marantz SD4000 - Chassis Top Assembly Parts

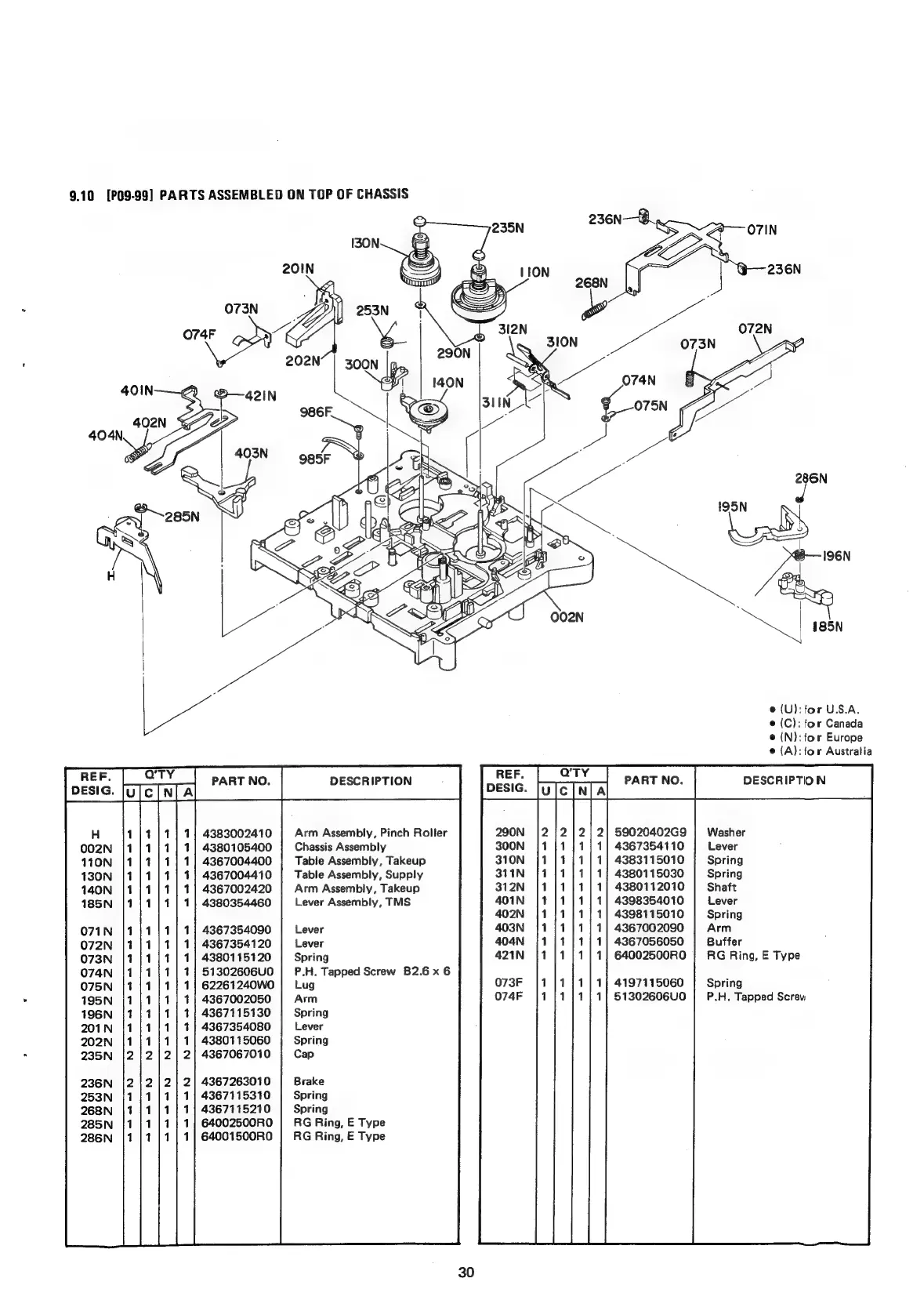

9.10 [P09-99] PARTS ASSEMBLED ON TOP OF CHASSIS
[NO ee ee ee ee ee ee ey
aa et er AD
PART NO.
4383002410
4380105400
4367004400
4367004410
4367002420
4380354460
4367354090
4367354120
4380115120
51302606U0
62261240W0
4367002050
4367115130
4367354080
4380115060
4367067010
4367263010
4367115310
4367115210
64002500R0
64001500R0
DESCRIPTION
Arm Assembly, Pinch Roller
Chassis Assembly
Table Assembly, Takeup
Table Assembly, Supply
Arm Assembly, Takeup
Lever Assembly, TMS
Lever
Lever
Spring
P.H. Tapped Screw B2.6x6
Lug
Arm
Spring
Lever
Spring
Cap
Brake
Spring
Spring
RG Ring, E Type
RG Ring, E Type
30
se eo oe er or ND
o_o =
@ (U): for U.S.A.
© (C): for Canada
e (N): for Europe
@ (A): for Australia
PART NO. DESCRIPTION
59020402G9
4367354110
4383115010
4380115030
4380112010
4398354010
4398115010
4367002090
4367056050
64002500R0
4197115060
51302606U0
Washer
Lever
Spring
Spring
Shaft
Lever
Spring
Arm
Buffer
RG Ring, E Type
Spring
P.H. Tapped Screw
