Marantz SM-17SA - Connection of Speaker Systems

ENGLISH
ENGLISH
2
AC IN
SPEAKERS
L
BTL
R
L
R
SPEAKERS IMPEDANCE L&R : 4 OHMS BTL : 8 OHMS
1.0A 120W MAX TOTAL
AC OUTLETS
SWITCHED UNSWITCHED
1.0A 120W MAX
120V 60HZ
2
L+
NORMAL
L
-
L
INPUT BTL OUT
0
R+
R
-
BTL - 6
(dB)
ATT
SERIAL NO.
LR
OFF
CD
SPEAKERS
REC SELECTOR
LINE 3
PHONO
TAPECD-R
COPY
LINE 1
TEMP
LINE 2
LINE 1
TAPE
PHONO
CD
INPUT SELECTOR
6 +
4
2
0
2
4
- 6
(dB)
OFF ON
(-dB)
6 +- 6
0
2
4
2
4
(dB)
LEFT RIGHT
BASS
LINE 3
POWER
VOLUME
BALANCE
PHONES
TREBLE
8
43
4
13
27
35
10
DIRECT
SOURCE
15
20
58
0
CD-R
LINE 2
ON
CONNECTIONS OF AMPLIFIER
Connect the output jacks of your pre amplifier to the INPUT jacks
Connection of speaker systems
Each of the speaker systems connected to this unit should have a impedance between 4 and 16 ohm. Connecting a speaker
system with a lower impedance than 4 ohm may activate the protection circuitry during sound reproduction.
The output terminals are provided with the positive ( :Red) and negative ( : White) polarity, and the input terminal of each
speaker system also has the polarity (
and ). Be sure to connect the terminals with the identical polarity.
Caution:
If you will be using two speaker systems, or you will be using the SM-17SA in BTL mode, use speaker systems that have an
impedance of at least 8 ohm. If you connect a speaker system that has an impedance of less than 8 ohm, the SM-17SA’s
protective circuitry may be worked, making the amplifier incapable of normal stereo playback.
Connection of speaker cord
CONNECTIONS

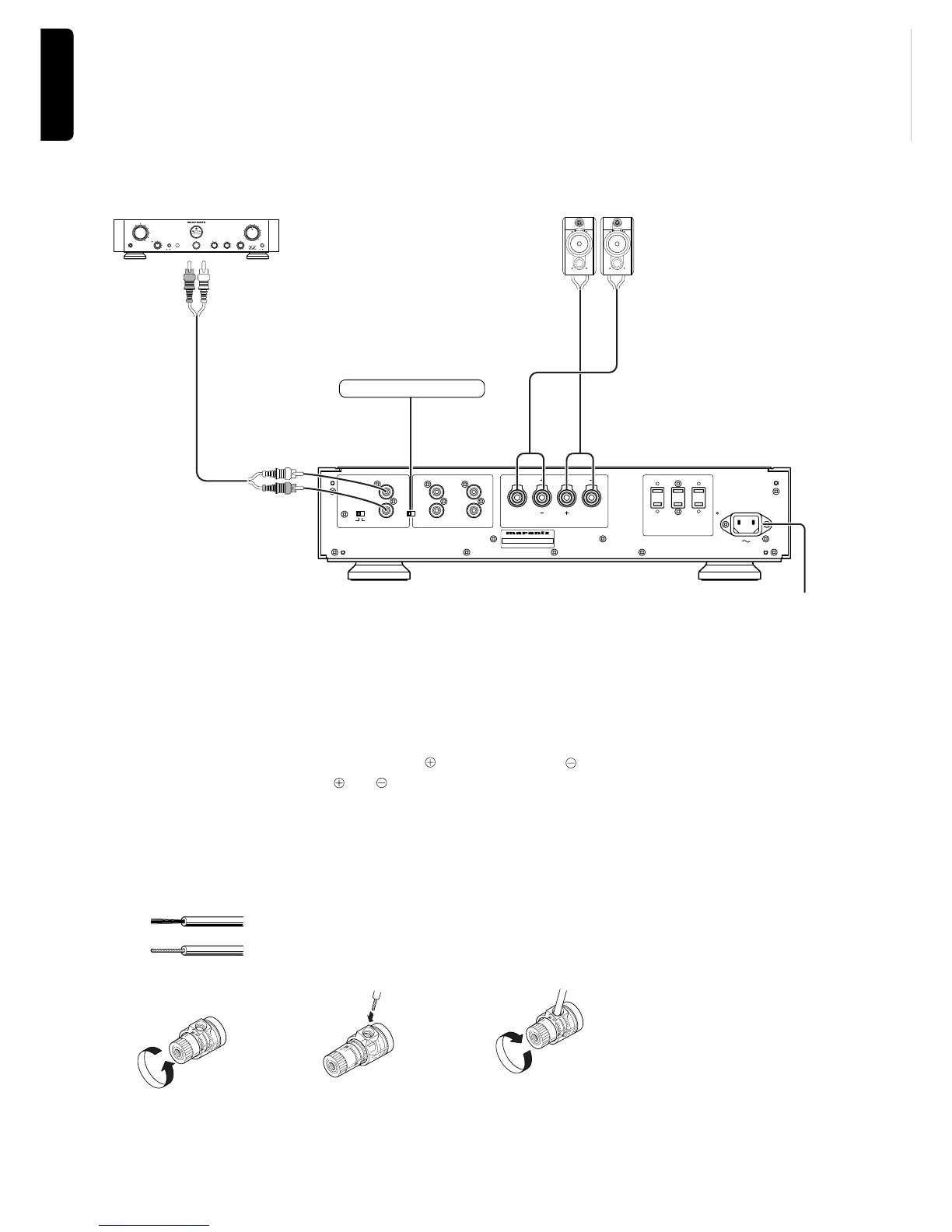

The connection method illustrated below is used when the SM-17SA is being used as a stereo power amp.
For details on other connection methods, refer to the examples on the following page.
Speaker system
Connect the right channel
speaker system to the R out-
put terminals and the left chan-
nel speaker system to the L
output terminals.
To AC power outlet
MRANTZ PM-17SA Integrated-amp
or other pre-amp
To pre output
Set NORMAL position
Strip coating from extermity.
Twist conductors.
Turn counterclockwise to loosen. Insert conductors. Turn clockwise to tighten.
Speaker cord
