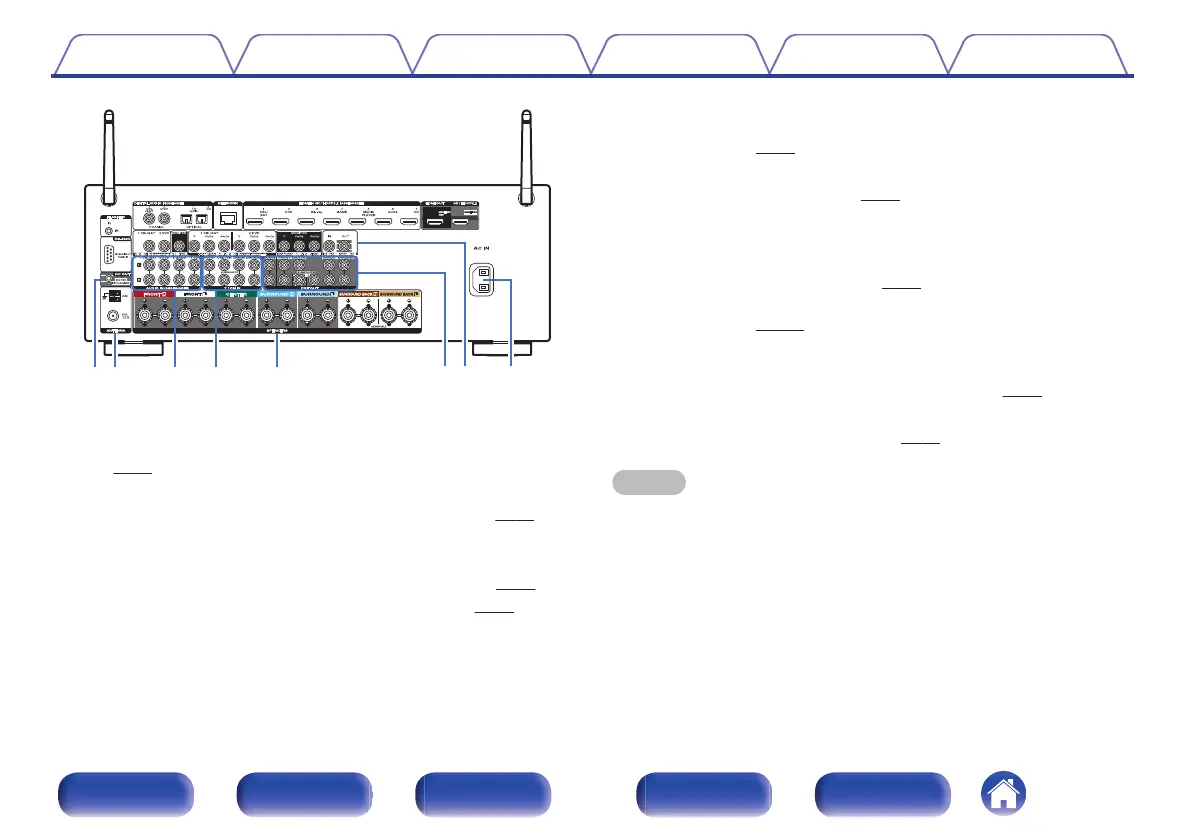

I
DC OUT jack
Used to connect devices equipped with the trigger function.
(v
p. 67)
J
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 62)
K
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 57)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 58)
L
7.1-channel input connectors (7.1CH IN)
Used to connect to a device that has multi-channel audio output
connectors. (v p. 60)
M
Speaker terminals (SPEAKERS)
Used to connect speakers. (v
p. 36)
N
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or an external power
amplifier.
0
“Connecting the subwoofer” (v
p. 37)
0
“Connection 2 : Connection using an external amplifier
(ZONE2)” (v
p. 139)
O
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v p. 66)
P
AC inlet (AC IN)
Used to connect the power cord. (v p. 68)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
