This unit is compatible with Dolby Atmos and DTS:X which offers an even wider
and deeper surround sensation.
0
Dolby Atmos is not supported in a 5.1-channel or less speaker configuration.
0
DTS:X can be selected regardless of the speaker configuration.
0

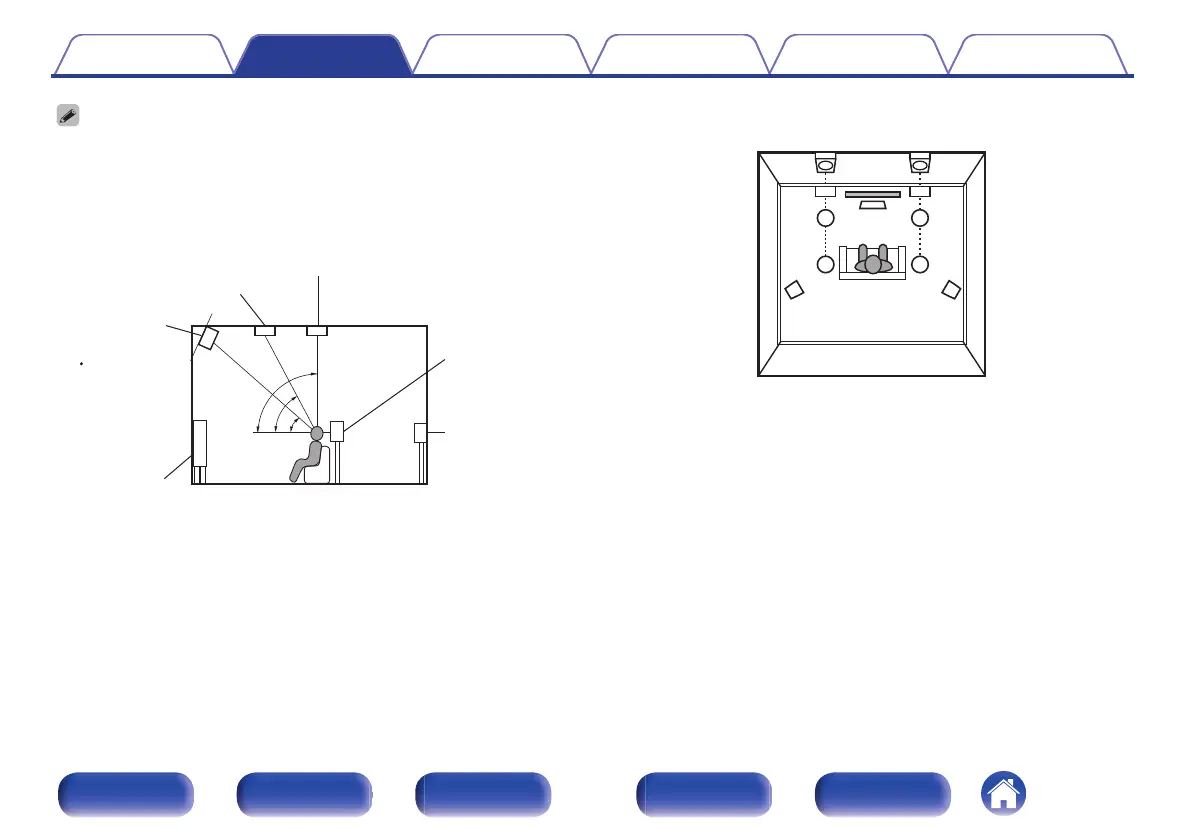

Use the illustration below as a guide for how high each speaker should be
installed. The height does not need to be exactly the same.
.
z
1
z2
z3
Front height
speaker
z1: 30° – 45° z2: 30° – 55°
z3: 65° – 100°
GViewed from the sideH
Top middle speaker
Top front speaker
Front speaker
Surround
speaker
Surround
back
speaker
Point slightly
downwards
.
SL
FHL
TML
TFL
FL
SR
FHR
TMR
TFR
FR
C
Height speakers layout
GViewed from the topH
