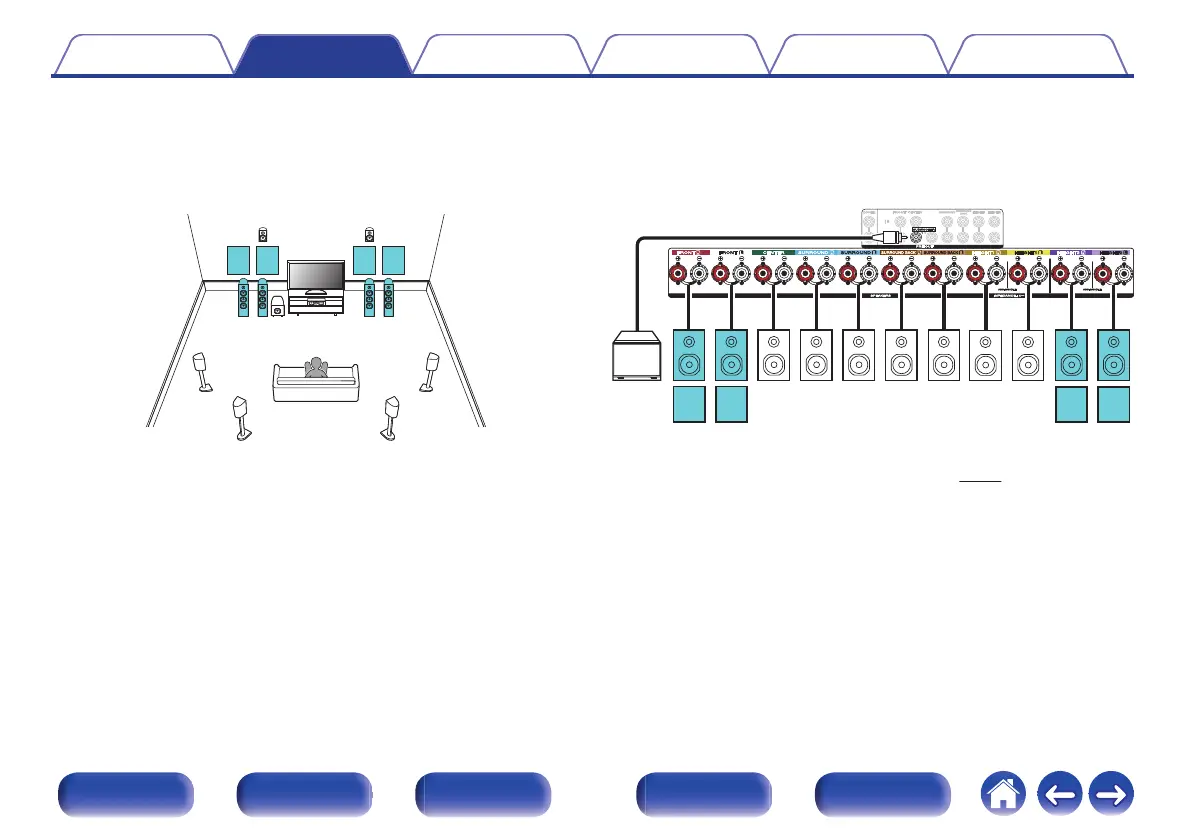

7.1-channel playback + second pair of front speakers
This system enables switching playback between front speakers A and B as desired.
You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers
automatically switch according to the input signal and sound mode.
.
FHL
SW
C
SL
SBL
FHR
SR
SBR
FLFL
(B) (A)
FRFR
(A) (B)
.
SBR SBL
CSRSL
SW
FR
(A)
FL
(A)
FHR FHL
zz
FR
(B)
FL
(B)
z
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can
be connected to the HEIGHT1 speaker terminals. Set the speaker to be
connected from “Height” - “Layout” in the menu. (v p. 218)
