Marantz SR8012OM - Page 160

o

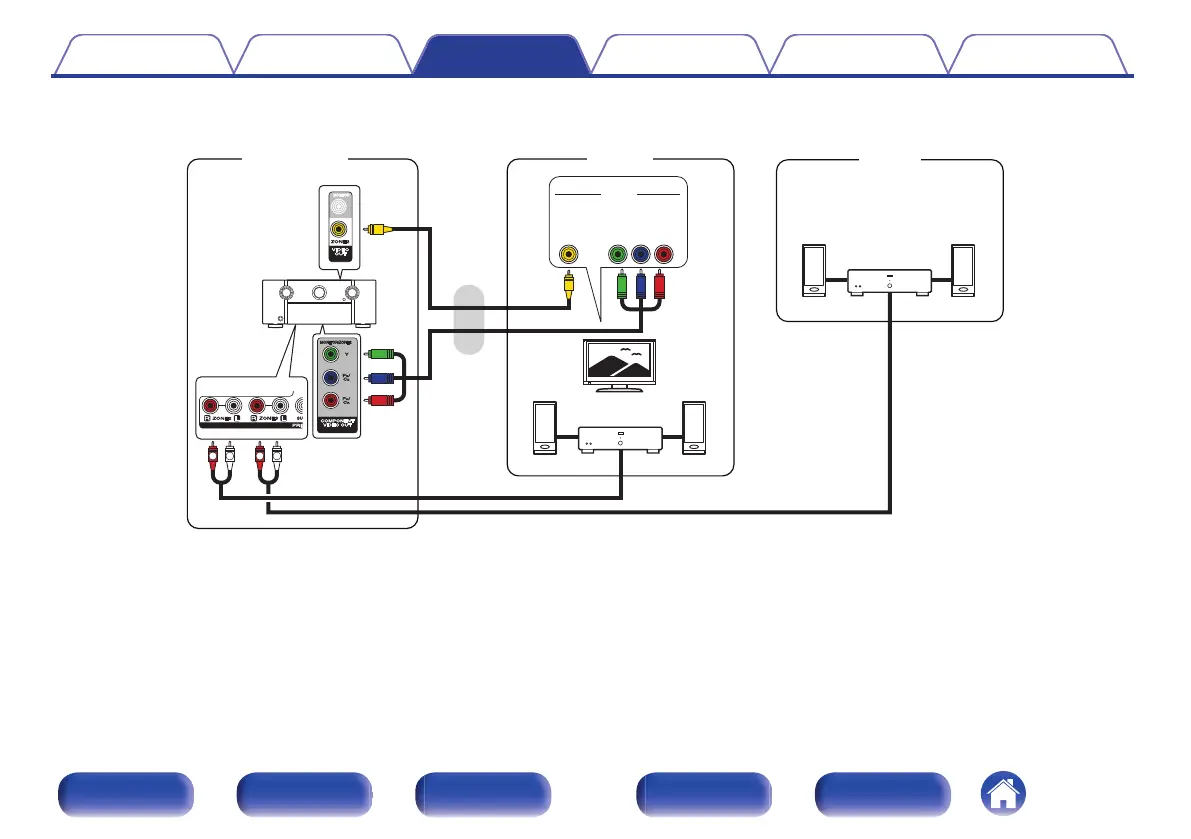

Connection 3 : Connection through the video output connector and external power amplifiers
The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are played on the ZONE2 and ZONE3 power amplifiers.
.
R
L
R
L
IN
VIDEO
VIDEO
COMPONENT VIDEO
YP
B PR
IN
AUX IN
AUX IN
Power amplifier
ZONE3
ZONE2
or
This unit
MAIN ZONE
Power amplifier
