Connecting 7.1-channel speakers
o

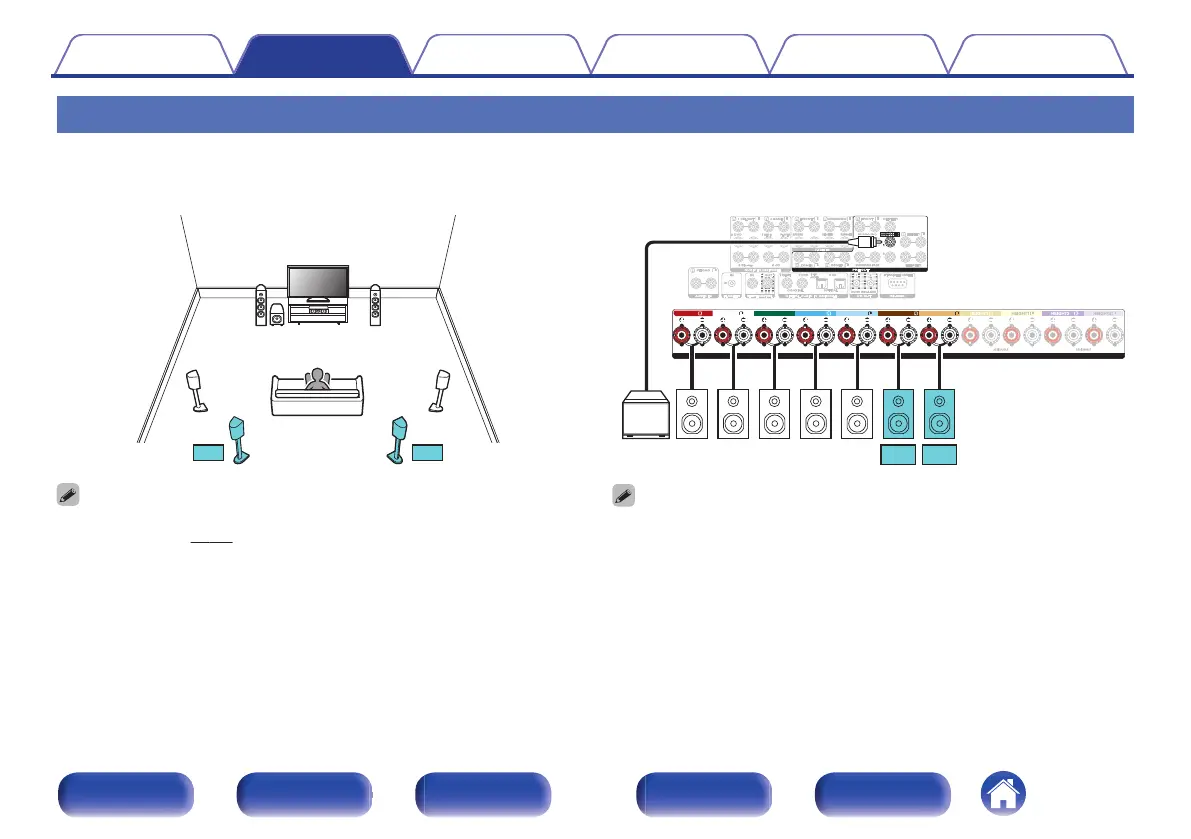

Example connections when using surround back speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.
.
0
Set “Floor” - “Layout” to “5ch & SB” in the menu when connecting in this
configuration. (v
p. 216)
.
ASSIGNABLE
SPEAKERS
CENTER SURROUND
SURROUND BACK
SURROUNDFRONT
SURROUND BACK
FRONT
SBR SBL
SW
FR FL C SR SL
0
When using a single surround back speaker, connect it to the SURROUND BACK
L terminal.
