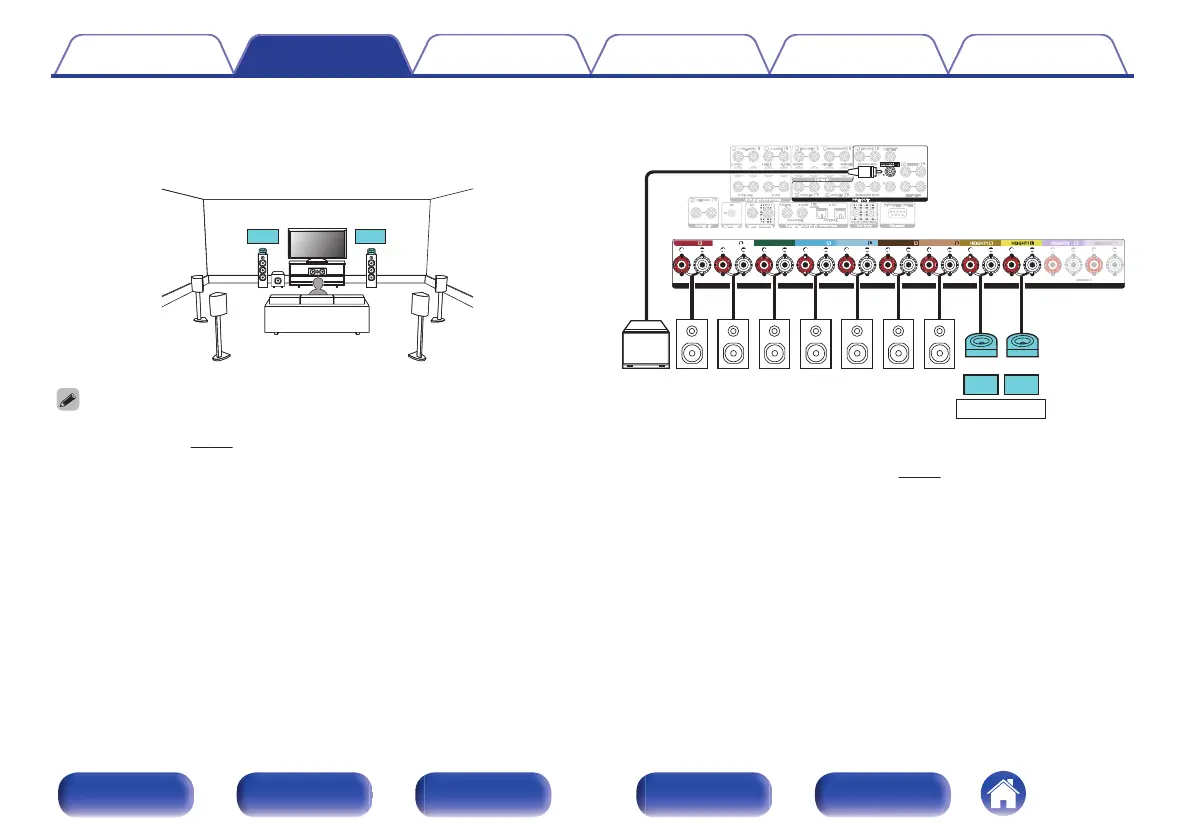

Example connection when using one set of Dolby Atmos Enabled speakers
.
C
SBL
SBR
SW
SL SR
FL
FR
FDL FDR
0
Set “Height” - “Dolby Sp” to “2ch” in the menu when connecting in this
configuration. (v
p. 217)
.
ASSIGNABLE ASSIGNABLE
SPEAKERS
CENTER SURROUND
SURROUND BACK
SURROUNDFRONT
SURROUND BACK
FRONT
FDR FDL
HEIGHT 1
z
SW
SBR SBL
FR FL C SR SL
z
The surround Dolby speakers can be connected instead of the front Dolby
speakers. In this case, set the Dolby Atmos Enabled speakers to be connected
under “Height” - “Layout” in the menu. (v p. 218)
