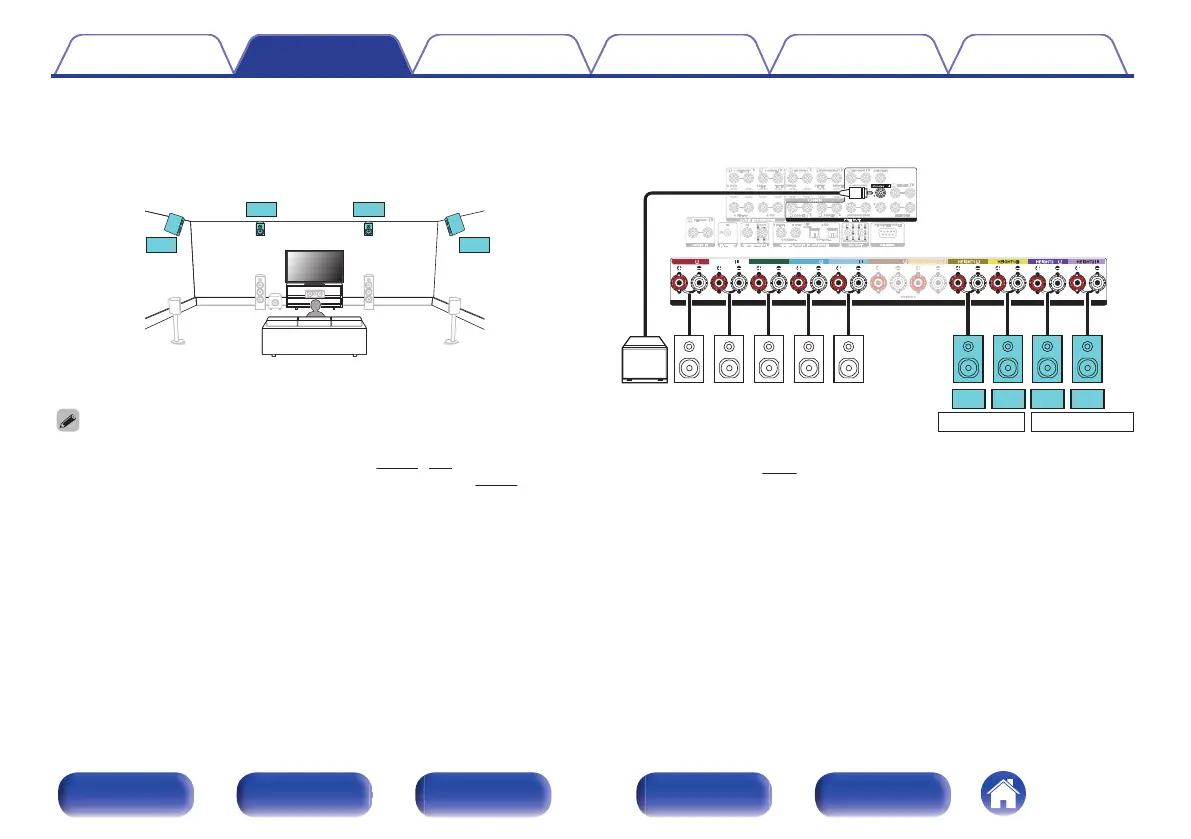

Example connection for the Auro-3D 9.1-channel system
This speaker configuration is optimized for Auro-3D playback.
.
FL FR
SW
SL SR
C
FHL FHR
SHL SHR
0
Set “Floor” - “Layout” to “5ch” or set “5ch & SB” and “Height Sp” to “4ch” in the
menu when connecting in this configuration. (v
p. 216, 217)
Next, set “Height” - “Layout” to “Front Height & Surr. Height”. (v
p. 218)
.
ASSIGNABLE ASSIGNABLE
SPEAKERS
CENTER SURROUND SURROUNDFRONTFRONT
SURROUND BACKSURROUND BACK
SHR SHLFHR FHL
SW
FR FL C SR SL
HEIGHT 1
z
1
HEIGHT 2
z
1
z
2
z1
You can change the combination of the HEIGHT1 and HEIGHT2 channels in
the settings. (v
p. 61)
z2
For the best Auro-3D experience Surround Height speakers are
recommended, however you may substitute Rear Height speakers from a
Dolby Atmos speaker setup in place of Surround Height speakers.
