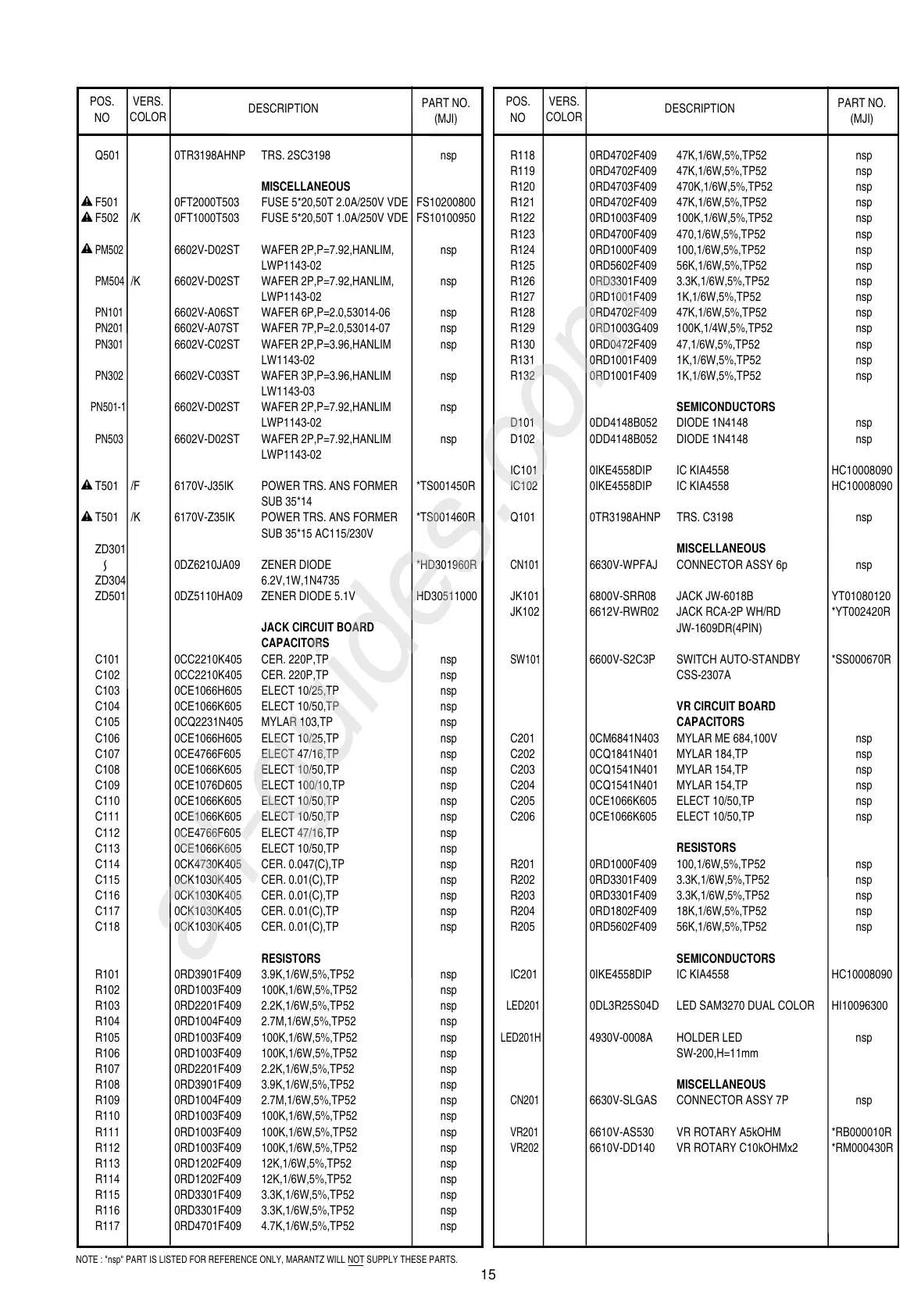

15
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
Q501 0TR3198AHNP TRS. 2SC3198 nsp
MISCELLANEOUS
F501 0FT2000T503 FUSE 5*20,50T 2.0A/250V VDE FS10200800
F502 /K 0FT1000T503 FUSE 5*20,50T 1.0A/250V VDE FS10100950
PM502
6602V-D02ST WAFER 2P,P=7.92,HANLIM,
LWP1143-02
nsp
PM504
/K 6602V-D02ST WAFER 2P,P=7.92,HANLIM,
LWP1143-02
nsp
PN101
6602V-A06ST WAFER 6P,P=2.0,53014-06 nsp
PN201
6602V-A07ST WAFER 7P,P=2.0,53014-07 nsp
PN301
6602V-C02ST WAFER 2P,P=3.96,HANLIM
LW1143-02
nsp
PN302
6602V-C03ST WAFER 3P,P=3.96,HANLIM
LW1143-03
nsp
PN501-1
6602V-D02ST WAFER 2P,P=7.92,HANLIM
LWP1143-02
nsp
PN503
6602V-D02ST WAFER 2P,P=7.92,HANLIM
LWP1143-02
nsp
T501 /F 6170V-J35IK POWER TRS. ANS FORMER
SUB 35*14
*TS001450R
T501 /K 6170V-Z35IK POWER TRS. ANS FORMER
SUB 35*15 AC115/230V
*TS001460R
ZD301
ZD304
0DZ6210JA09 ZENER DIODE
6.2V,1W,1N4735
*HD301960R
ZD501 0DZ5110HA09 ZENER DIODE 5.1V HD30511000
JACK CIRCUIT BOARD
CAPACITORS
C101 0CC2210K405 CER. 220P,TP nsp
C102 0CC2210K405 CER. 220P,TP nsp
C103 0CE1066H605 ELECT 10/25,TP nsp
C104 0CE1066K605 ELECT 10/50,TP nsp
C105 0CQ2231N405 MYLAR 103,TP nsp
C106 0CE1066H605 ELECT 10/25,TP nsp
C107 0CE4766F605 ELECT 47/16,TP nsp
C108 0CE1066K605 ELECT 10/50,TP nsp
C109 0CE1076D605 ELECT 100/10,TP nsp
C110 0CE1066K605 ELECT 10/50,TP nsp
C111 0CE1066K605 ELECT 10/50,TP nsp
C112 0CE4766F605 ELECT 47/16,TP nsp
C113 0CE1066K605 ELECT 10/50,TP nsp
C114 0CK4730K405 CER. 0.047(C),TP nsp
C115 0CK1030K405 CER. 0.01(C),TP nsp
C116 0CK1030K405 CER. 0.01(C),TP nsp
C117 0CK1030K405 CER. 0.01(C),TP nsp
C118 0CK1030K405 CER. 0.01(C),TP nsp
RESISTORS
R101 0RD3901F409 3.9K,1/6W,5%,TP52 nsp
R102 0RD1003F409 100K,1/6W,5%,TP52 nsp
R103 0RD2201F409 2.2K,1/6W,5%,TP52 nsp
R104 0RD1004F409 2.7M,1/6W,5%,TP52 nsp
R105 0RD1003F409 100K,1/6W,5%,TP52 nsp
R106 0RD1003F409 100K,1/6W,5%,TP52 nsp
R107 0RD2201F409 2.2K,1/6W,5%,TP52 nsp
R108 0RD3901F409 3.9K,1/6W,5%,TP52 nsp
R109 0RD1004F409 2.7M,1/6W,5%,TP52 nsp
R110 0RD1003F409 100K,1/6W,5%,TP52 nsp
R111 0RD1003F409 100K,1/6W,5%,TP52 nsp
R112 0RD1003F409 100K,1/6W,5%,TP52 nsp
R113 0RD1202F409 12K,1/6W,5%,TP52 nsp
R114 0RD1202F409 12K,1/6W,5%,TP52 nsp
R115 0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R116 0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R117 0RD4701F409 4.7K,1/6W,5%,TP52 nsp
R118 0RD4702F409 47K,1/6W,5%,TP52 nsp
R119 0RD4702F409 47K,1/6W,5%,TP52 nsp
R120 0RD4703F409 470K,1/6W,5%,TP52 nsp
R121 0RD4702F409 47K,1/6W,5%,TP52 nsp
R122 0RD1003F409 100K,1/6W,5%,TP52 nsp
R123 0RD4700F409 470,1/6W,5%,TP52 nsp
R124 0RD1000F409 100,1/6W,5%,TP52 nsp
R125 0RD5602F409 56K,1/6W,5%,TP52 nsp
R126 0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R127 0RD1001F409 1K,1/6W,5%,TP52 nsp
R128 0RD4702F409 47K,1/6W,5%,TP52 nsp
R129 0RD1003G409 100K,1/4W,5%,TP52 nsp
R130 0RD0472F409 47,1/6W,5%,TP52 nsp
R131 0RD1001F409 1K,1/6W,5%,TP52 nsp
R132 0RD1001F409 1K,1/6W,5%,TP52 nsp
SEMICONDUCTORS
D101 0DD4148B052 DIODE 1N4148 nsp
D102 0DD4148B052 DIODE 1N4148 nsp
IC101 0IKE4558DIP IC KIA4558 HC10008090
IC102 0IKE4558DIP IC KIA4558 HC10008090
Q101 0TR3198AHNP TRS. C3198 nsp
MISCELLANEOUS
CN101
6630V-WPFAJ CONNECTOR ASSY 6p nsp
JK101 6800V-SRR08 JACK JW-6018B YT01080120
JK102 6612V-RWR02 JACK RCA-2P WH/RD
JW-1609DR(4PIN)
*YT002420R
SW101
6600V-S2C3P SWITCH AUTO-STANDBY
CSS-2307A
*SS000670R
VR CIRCUIT BOARD
CAPACITORS
C201 0CM6841N403 MYLAR ME 684,100V nsp
C202 0CQ1841N401 MYLAR 184,TP nsp
C203 0CQ1541N401 MYLAR 154,TP nsp
C204 0CQ1541N401 MYLAR 154,TP nsp
C205 0CE1066K605 ELECT 10/50,TP nsp
C206 0CE1066K605 ELECT 10/50,TP nsp
RESISTORS
R201 0RD1000F409 100,1/6W,5%,TP52 nsp
R202 0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R203 0RD3301F409 3.3K,1/6W,5%,TP52 nsp
R204 0RD1802F409 18K,1/6W,5%,TP52 nsp
R205 0RD5602F409 56K,1/6W,5%,TP52 nsp
SEMICONDUCTORS
IC201 0IKE4558DIP IC KIA4558 HC10008090
LED201
0DL3R25S04D LED SAM3270 DUAL COLOR HI10096300
LED201H
4930V-0008A HOLDER LED
SW-200,H=11mm
nsp
MISCELLANEOUS
CN201
6630V-SLGAS CONNECTOR ASSY 7P nsp
VR201
6610V-AS530 VR ROTARY A5kOHM *RB000010R
VR202
6610V-DD140 VR ROTARY C10kOHMx2 *RM000430R
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
