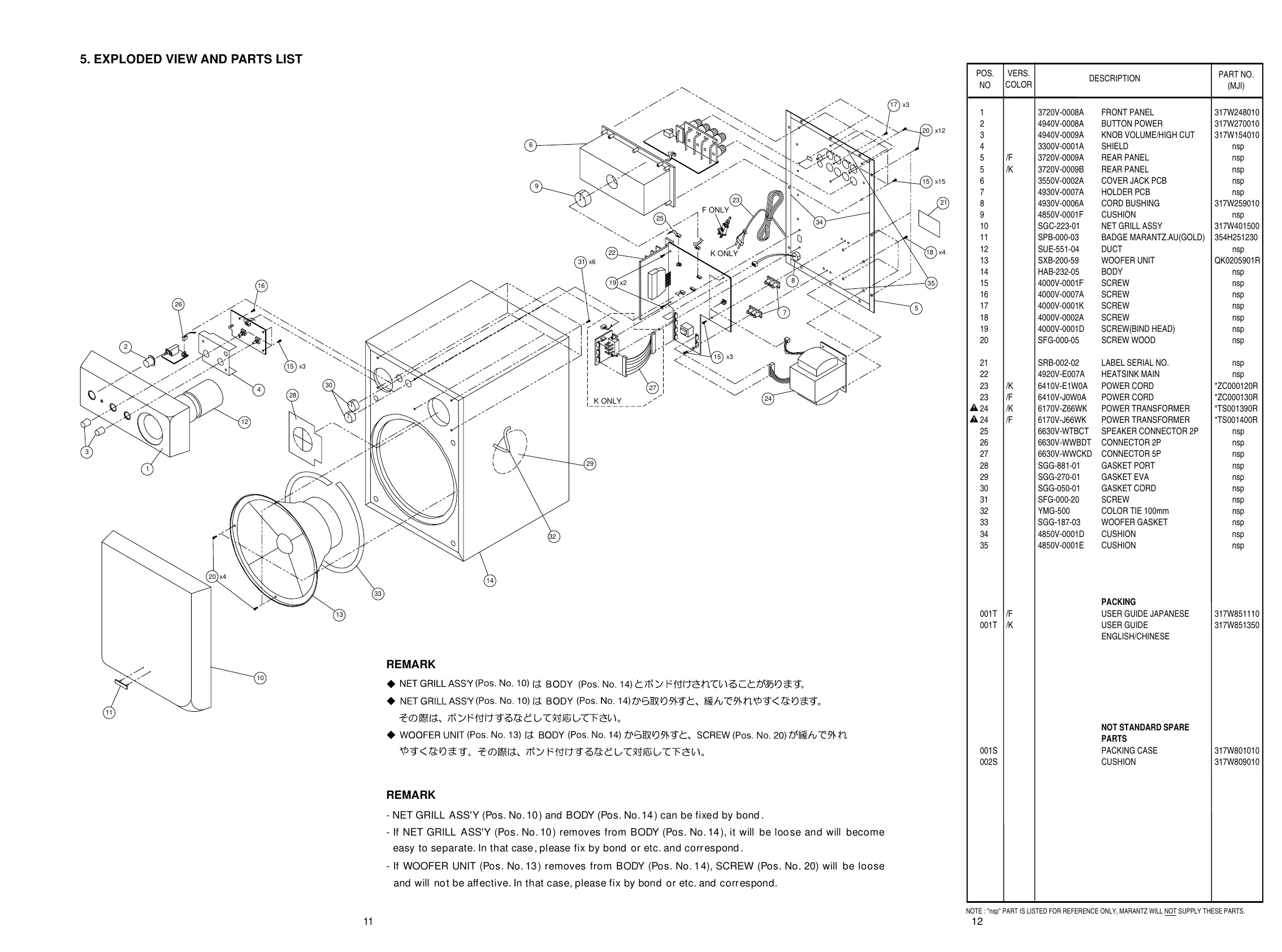

5. EXPLODED VIEW AND PARTS LIST
29
6
9
16
15 x3
28
30
14
2
26
4
12
1
20 x4
3
11
10
13
8
23
19 x2
22
25
17 x3
5
7
24
15 x3
27
K ONLY
K ONLY
F ONLY
31 x6
34
35
32
33
20 x12
15 x15
21
18 x4
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
1 3720V-0008A FRONT PANEL 317W248010
2 4940V-0008A BUTTON POWER 317W270010
3 4940V-0009A KNOB VOLUME/HIGH CUT 317W154010
4 3300V-0001A SHIELD nsp
5 /F 3720V-0009A REAR PANEL nsp
5 /K 3720V-0009B REAR PANEL nsp
6 3550V-0002A COVER JACK PCB nsp
7 4930V-0007A HOLDER PCB nsp
8 4930V-0006A CORD BUSHING 317W259010
9 4850V-0001F CUSHION nsp
10 SGC-223-01 NET GRILL ASSY 317W401500
11 SPB-000-03 BADGE MARANTZ.AU(GOLD) 354H251230
12 SUE-551-04 DUCT nsp
13 SXB-200-59 WOOFER UNIT QK0205901R
14 HAB-232-05 BODY nsp
15 4000V-0001F SCREW nsp
16 4000V-0007A SCREW nsp
17 4000V-0001K SCREW nsp
18 4000V-0002A SCREW nsp
19 4000V-0001D SCREW(BIND HEAD) nsp
20 SFG-000-05 SCREW WOOD nsp
21 SRB-002-02 LABEL SERIAL NO. nsp
22 4920V-E007A HEATSINK MAIN nsp
23 /K 6410V-E1W0A POWER CORD *ZC000120R
23 /F 6410V-J0W0A POWER CORD *ZC000130R
24 /K 6170V-Z66WK POWER TRANSFORMER *TS001390R
24 /F 6170V-J66WK POWER TRANSFORMER *TS001400R
25 6630V-WTBCT SPEAKER CONNECTOR 2P nsp
26 6630V-WWBDT CONNECTOR 2P nsp
27 6630V-WWCKD CONNECTOR 5P nsp
28 SGG-881-01 GASKET PORT nsp
29 SGG-270-01 GASKET EVA nsp
30 SGG-050-01 GASKET CORD nsp
31 SFG-000-20 SCREW nsp
32 YMG-500 COLOR TIE 100mm nsp
33 SGG-187-03 WOOFER GASKET nsp
34 4850V-0001D CUSHION nsp
35 4850V-0001E CUSHION nsp
PACKING
001T /F USER GUIDE JAPANESE 317W851110
001T /K USER GUIDE
ENGLISH/CHINESE
317W851350
NOT STANDARD SPARE
PARTS
001S PACKING CASE 317W801010
002S CUSHION 317W809010
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
REMARK
REMARK
- NET GRILL ASS'Y (Pos. No. 10) and BODY (Pos. No. 14) can be fixed by bond.
- If NET GRILL ASS'Y (Pos. No. 10) removes from BODY (Pos. No. 14), it will be loose and will become
easy to separate. In that case, please fix by bond or etc. and correspond.
- If WOOFER UNIT (Pos. No. 13) removes from BODY (Pos. No. 14), SCREW (Pos. No. 20) will be loose
and will not be affective. In that case, please fix by bond or etc. and correspond.
