Marantz SW200 - Wiring Diagram

TO.SPK UNIT
MAINS CORD
MAIN TRANSFORMER
SECONDARY
PRIMARY
AC100V AC200V
CN101
JK101
JK102
SW101
PN302
PN101
PN201
PN301
IC302
PN503 PN504
T501
PN502
PN601
SW601
CN201
VR201
VR202
PN501-1 PN501-2 PN501-3
PN702
PN701-3 PN701-2 PN701-1
SW701
JACK PWB
MAIN PWB
VR PWB
POWER SWITCH PWB
F ONLY
F ONLY
K ONLY
K ONLY
VOLTAGE SELECTOR PCB

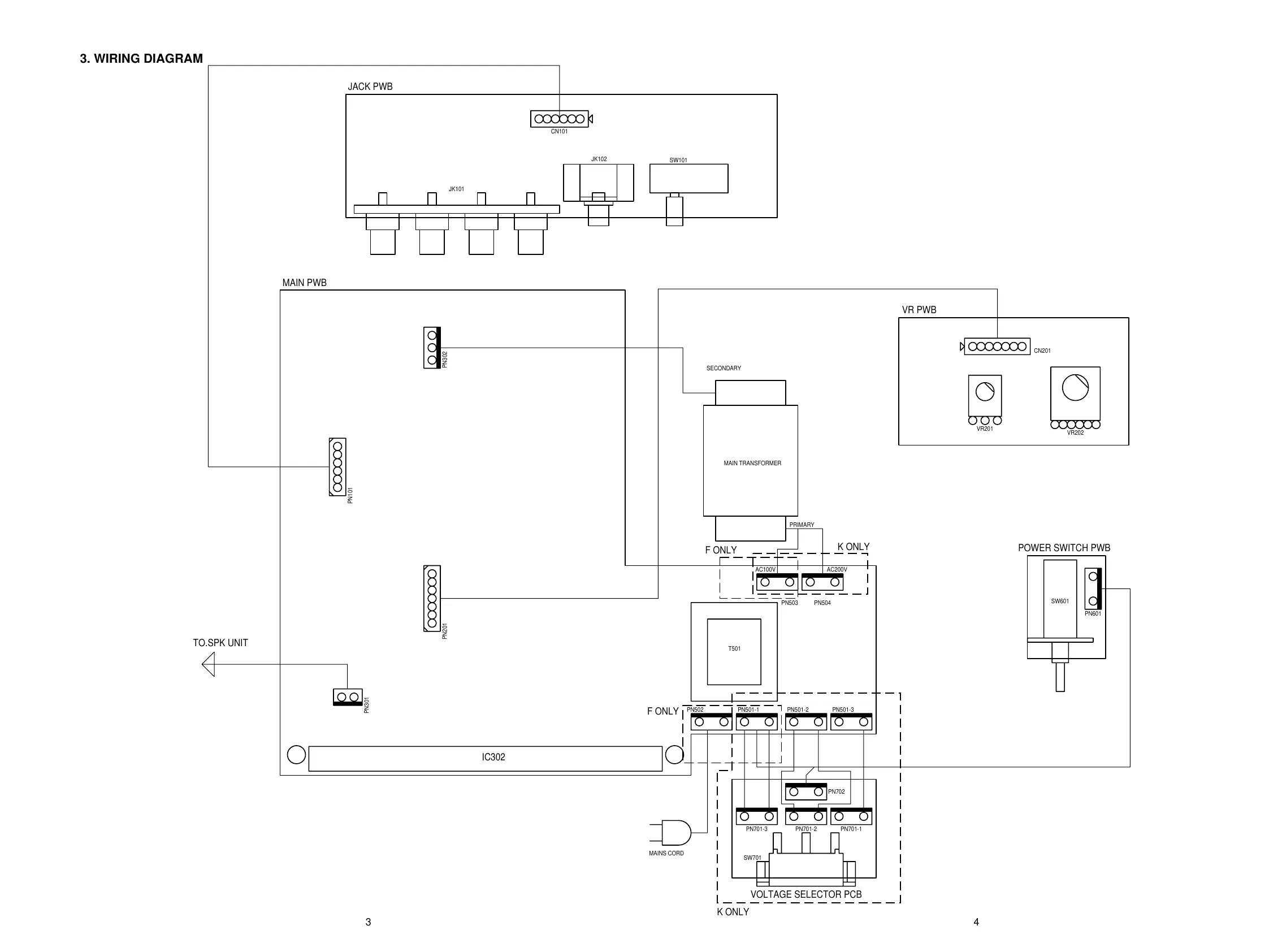

3. WIRING DIAGRAM
