This ring acts as a seal.
VOLTAGE STICKERS (except PN HT)

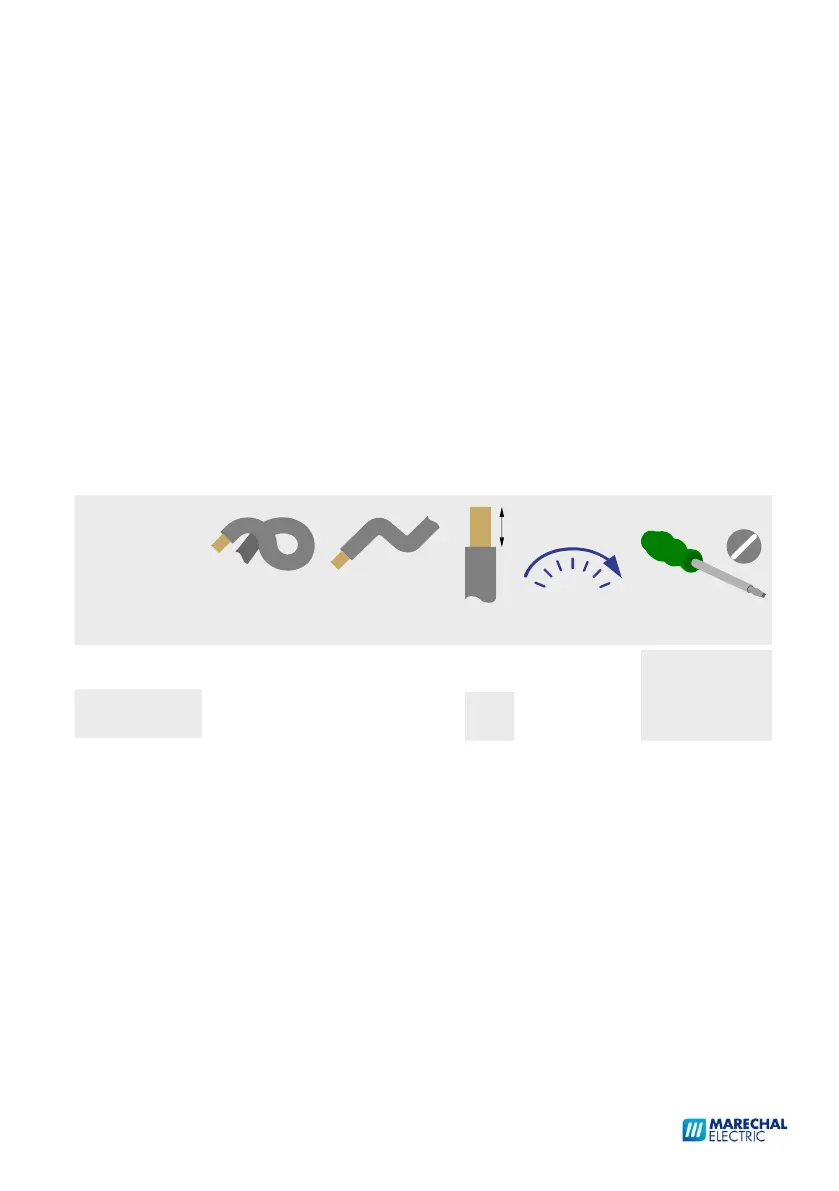

• Do not back terminal screws completely out;
• Fully insert the conductor and tighten the terminal screws to
the torque indicated.
COLOUR-CODED RINGS (except PN HT)
• Strip conductors' insulation to the lengths indicated. A
crimped lug may prevent the dispersion of strands of flexible
conductors.
Insert a colour-coded ring between the device and its rear
accessory (handle, angle adapter, etc.).
The two protrusions of the rings must be positioned on the
cover hinge side for the socket-outlet/connector and on the
catch side for the plug/appliance inlet.
If necessary, affix the voltage stickers supplied in a bag.
• Remove an adequate length of cable outer sheath,
according to the accessory used. The cable sheathing must
extend through the cord grip into the accessory as required to
achieve the intended sealing and cord gripping performance.
IS 24 [PN/PN HT] Rev B.1 - 2022-12
