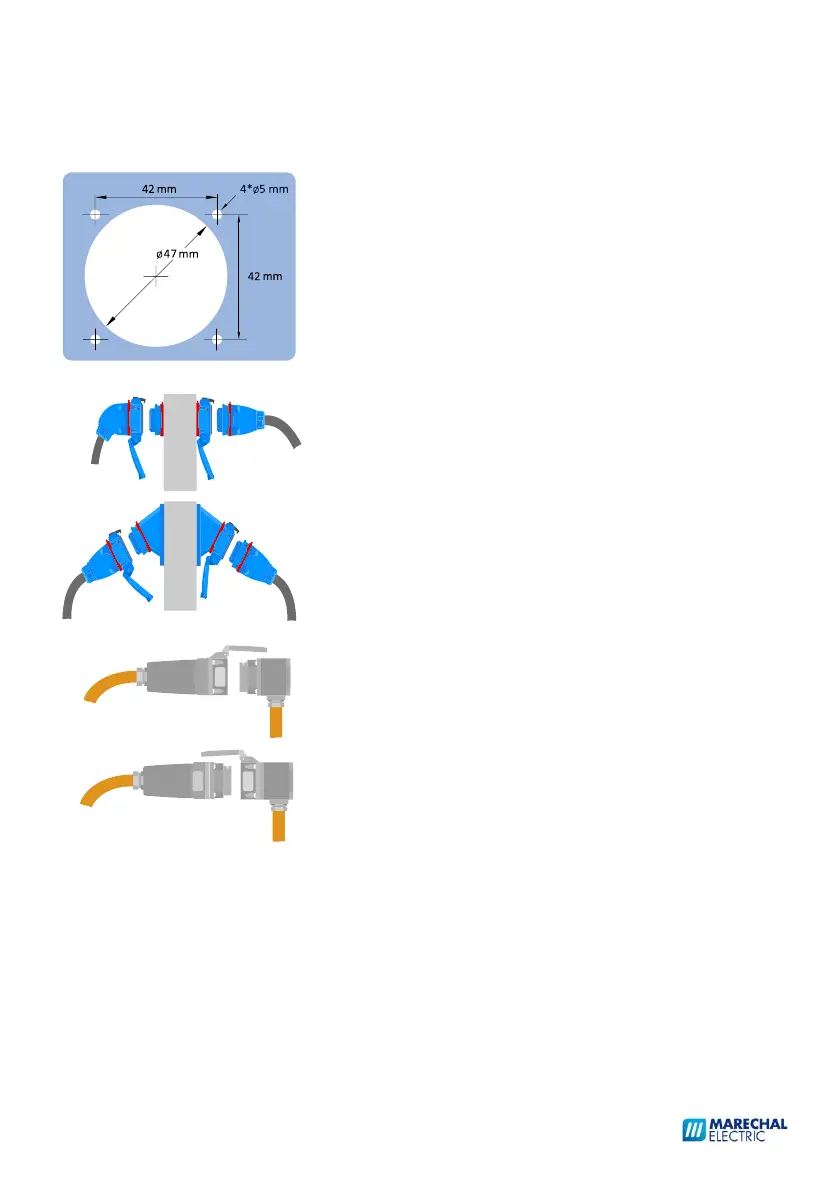

• When panel mounting devices are
assembled on a metallic surface, the
following drillings must be observed.
• Install the PN IP66/IP67 socket-outlets
with the latch at the top (or on the side
in case of risk of accumulation of foreign
bodies inside the cover).
• Install the PNHT socket-outlets with
the cover hinge at the top .
Plug/appliance inlet (except PN HT)
Affix the CE sticker either on the handle or on the box, or near
the inlet if semi-flush mounted.
IS 24 [PN/PN HT] Rev B.1 - 2022-12
