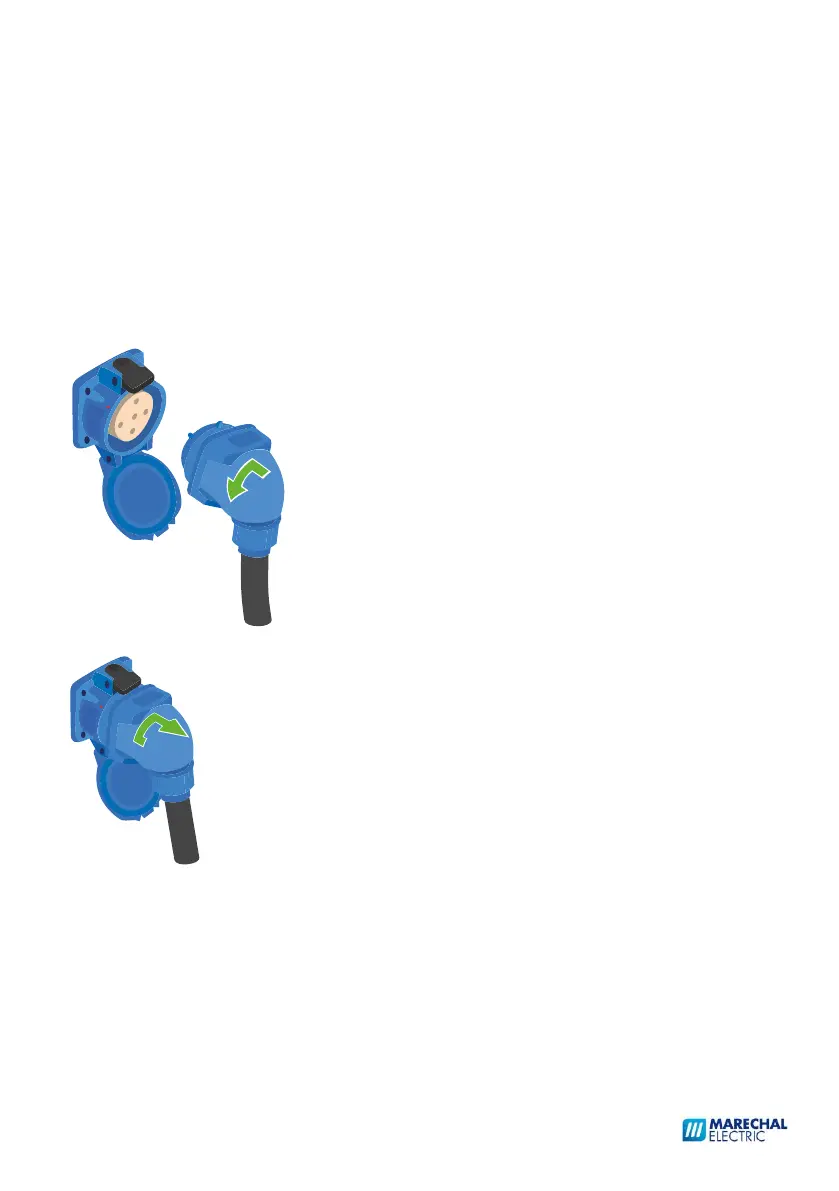

• To connect, align the bayonets with
the hollow parts of the complementary
device (if any, use the two red marks as
a visual indication), push the device in
and turn anticlockwise: the circuit is
closed.
• To disconnect, push the device and
turn it clockwise to withdraw it. Close
the lid.
• Single-padlocking: cover closed, insert a padlock that fits tightly in
the locking hole of the latch (ø 4 mm).
• Screw locking: cover closed, turn the screw of the latch with a
suitable key until it reaches the bottom. Do not overtighten.
• The socket-outlet is shielded by a protective lid held in the
closed position by a latch. Depress this latch to release the lid.
SOCKET-OUTLET LOCKING (OPTION)
• Only devices with compatible contact configurations and
electrical ratings will mate.
IS 24 [PN/PN HT] Rev B.1 - 2022-12
