Page 6
2.2: MOUNT VISION
3.0: PREPARATIONS FOR RIDING
3.1: MAKING ADJUSTMENTS:
Please refer to the specific component manufacturers
manual or published technical information about
adjusting the components on your Marin. Instruc-
tions may be downloaded from the relevant manu-
facturer’s internet site, as shown in the table to the
right.
If you are uncertain in any way, about making ad-
justments to any components on you Marin, then DO
NOT RIDE YOUR BIKE. Contact your Marin dealer
who will be able to advise you on how to go about
setting up you Marin for riding, and or making ad-
justments to the components fitted to your Marin.
3.2: SET UP OF FORK
Tools Required: Good Quality Shock Pump.
Please note that for the detailed instructions for servicing and all matters relating to the
fork, please refer to the manufacturers instructions accompanying this manual.
FRAME SIZE XS 15.5” S 16.5” M 17.5” L 19”
Head Tube Angle (A) 67.5° 67.5° 67.5° 67.5°
Seat Tube Angle (B) 72.6° 73.1° 73.5° 73.6°
Top Tube* (C) 561.4mm / 22.1” 577mm / 22.7” 595mm / 23.4” 606.1mm / 23.9”
BB Height** (D) 333mm / 13.1” 337mm / 12.3” 340mm / 13.4” 341mm / 13.4”
Stand Over (E) 773mm / 30.4" 792mm / 31.3" 820mm / 32.3" 836mm / 32.9"
Wheel Base (F) 1091mm / 42.95" 1111mm / 43.7" 1133mm / 44.6" 1145mm / 45.1"
Head Tube (G) 107.0mm / 4.2” 115.0mm / 4.5” 120.0mm / 4.7” 125.0mm / 4.9”
Seat Post Ø (H) 30.9mm / 1.217" 30.9mm / 1.217" 30.9mm / 1.217" 30.9mm / 1.217"
Seat Tube (I) 393.0mm / 15.5” 419.1mm / 16.5” 444.5mm / 17.5” 482.6mm / 19”
Note: This is ‘Showroom’ Geometry, ie: without a rider sat on the bicycle.
*Top tube length is the distance from the point where the centre line of the head tube meets the centre line of the top
tube, horizontally back to the centre line of the seat tube.
**BB Height will vary, depending on what tyre size is actually fitted.
Continental www.conti-tyres.co.uk
Easton www.eastonbike.com
FSA www.fullspeedahead.com
Fox www.foxracingshox.com
Formula www.formulahubs.com
Hayes www.hayesdiscbrake.com
Marzocchi www.marzocchi.com
Mavic www.mavic.com
Maxxis www.maxxis.com
Shimano www.shimano.com
SRAM www.sram.com
Sun Ringle www.sun-ringle.com
WTB www.wtb.com
2011 Marin Rift Zone & Mount Vision Service Manual
2011 Marin Rift Zone & Mount Vision Service Manual2011 Marin Rift Zone & Mount Vision Service Manual
2011 Marin Rift Zone & Mount Vision Service Manual
Page 19

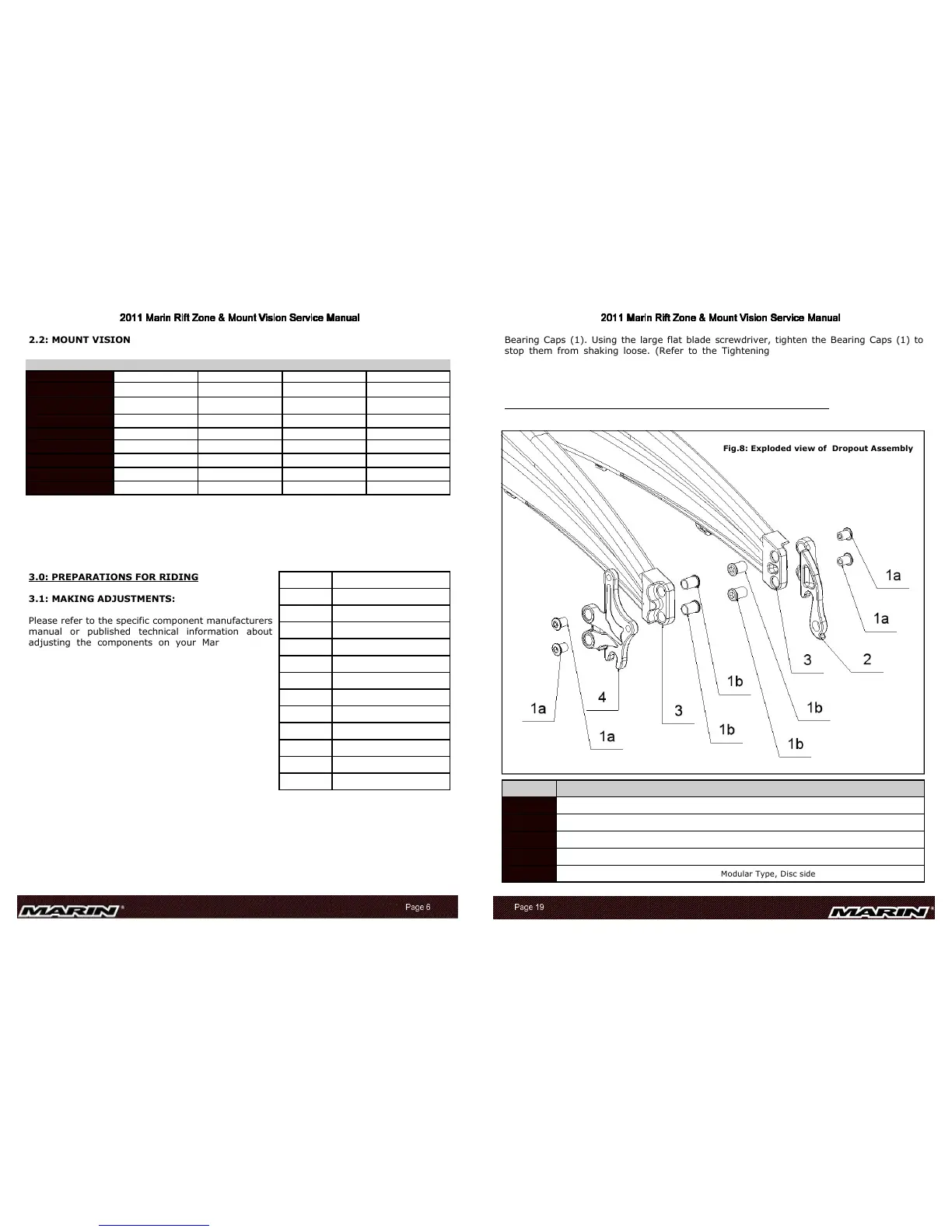

7.0: SERVICING THE MARIN MOUNT VISION DROPOUT SYSTEM.
Item Description
1a Chain ring Bolt Male
1b Chain Ring Bolt Female
2 Dropout, Q/R Modular Type, Derailleur side
3 Swinging Arm Mounting Point
4 Dropout, Q/R Modular Type, Disc side
Fig.8: Exploded view of Dropout Assembly
Bearing Caps (1). Using the large flat blade screwdriver, tighten the Bearing Caps (1) to
stop them from shaking loose. (Refer to the Tightening torque settings in Section 8.0).
Finally, refit the rear wheel into the swinging arm.
