Marineland Eclipse - Parts and Identification; Replacement Parts List; Parts Diagram

6 7
CUSTOMER SERVICE INFORMATION
For additional assistance or to order parts direct,you may call the Marineland Customer Service
Department at (800) 322-1266 M-F,between the hours of 8AM and 5PM (PST).Please have your
manual and MasterCard or VISA ready when ordering.
NOTE: Eclipse Filter cartridges are not sold as replacement parts.They may be purchased
at your local Marineland retail outlet in single or three packs (PA0138 or PA0139).
1
2
3
4
5
6
8
12
13
16
17
15
REPLACEMENT P
REPLACEMENT P
AR
AR
TS LIST
TS LIST
P
P
AR
AR
TS DIAGRAM & IDENTIFICA
TS DIAGRAM & IDENTIFICA
TION
TION
7
9
Filtration View
Lighting View
11
14
10
KEY ITEM DESCRIPTION ECLIPSE
1
ECLIPSE
2
ECLIPSE
3
1Filtration Access Panel
*
PR3000 PR3001 PR3002
2 Hinge-Pin Set (pkg.2)
*
PR3010 PR3010 PR3010
3 BIO-Wheel Assembly
*
PR3020 PR2140 PR2002
4 BIO-Wheel Bearings (pkg.2)
*
PR2141 PR2141 PR2141
5 Replacement Lamp
18” (T8 - 15 watts)
*
PR3030 PR3030 N/A
24” (T8 - 20 watts)
*
N/A N/A PR3031
6 Lamp Base Assembly - (single)
*
PR3032
Lamp Base Assembly - (twin)
*
PR3039 PR3033 PR3034
7 Lamp Lens Cover
*
PR3035 PR3035 PR3036
8 Lens Cover Fasteners (pkg.3)
*
PR3037 PR3037 PR3037
9 Accessory Port Cover
*
PR3040 PR3040 PR3040
10 Outlet Flow Diverter
*
PR3043 PR3044 PR3043
11 Flexible Pump Mount
*
PR3085 PR3085 PR3085
12 Pump Motor Assembly PR3080 PR3081 PR3082
13 Impeller Assembly
*
PR3087 PR3088 PR3089
14 Impeller Housing
*
PR3083 PR3084 PR3084
15 Intake Tube Coupler N/A PR3061 PR3061
16 Intake Tube PA1341 PA1240 PA1240
17 Intake Strainer PA1462 PA1241 PA1241
NS Cord Organizer PR3070 PR3071 PR3071
*
PLEASE NOTE: Asterisked parts come preassembled with your new system.

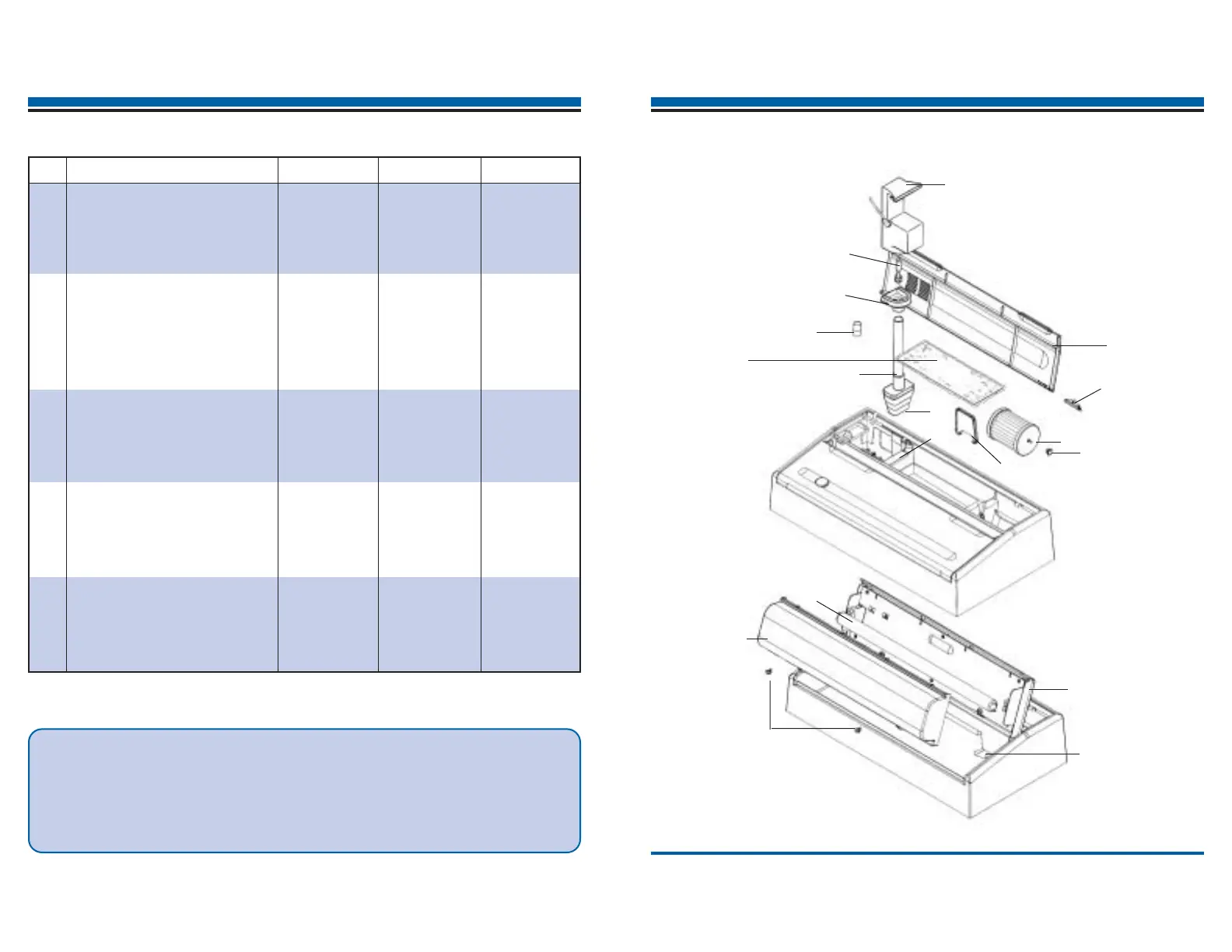

Exploded view is for identification of REPLACEMENT parts only.
Filter Cartridge
available at your local
Marineland outlet
(PA0138 or PA0139)
