MarineTech TrollMaster Series User Manual

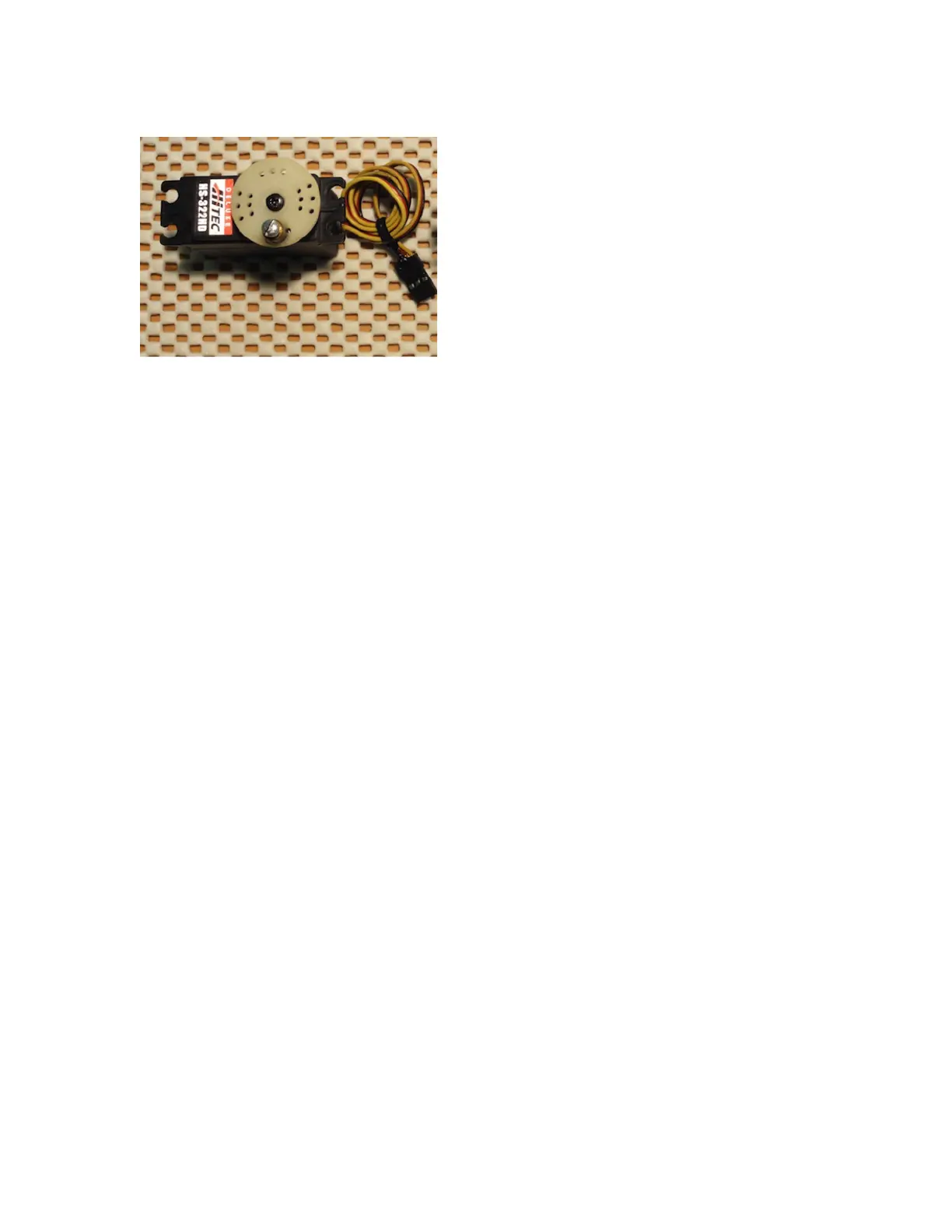

The servo motor pictured above is the old style servo motor. You will see
the old style servo motor pictured in the installation manual photos but we
have since upgraded to the TM-MG1 servo motor. You will receive the TM-
MG1 servo motor in your Trollmaster hardware kit. When installing your
servo motor follow the directions for your application and use the brass
barrel connector with the phillips head screw in it as your alignment point
when you set the position of the servo arm. See; Set The Servo Arm for
further instruction on how to install your servo motor properly.
Replacement servo motors are available for the Hitec HS322HD (shown
above) and the SG-5010 (not shown)
To purchase call MarineTech Products, Inc. PH: 866-228-7655
