6

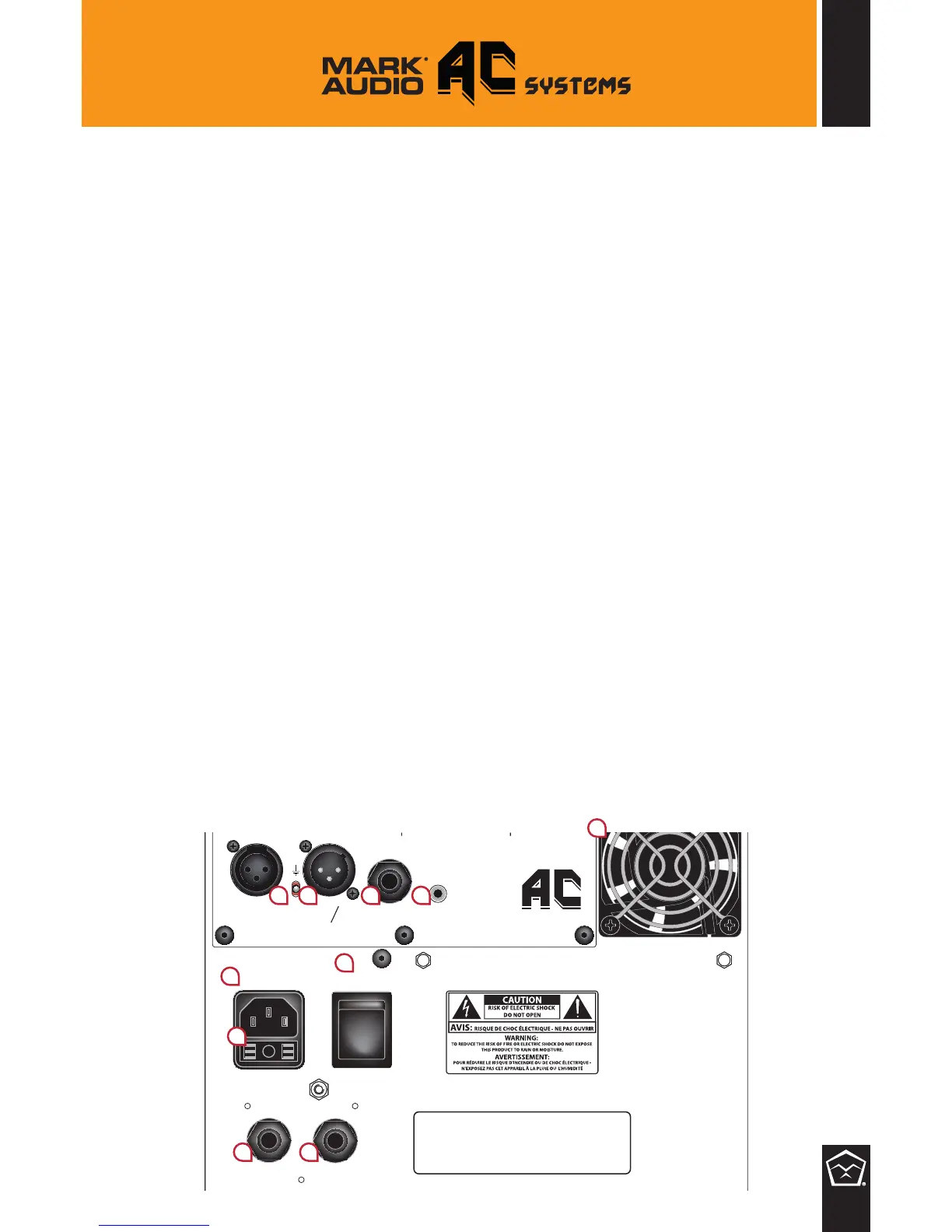

GROUND LIFT (10)
This switch may be needed for the cancellation of hum due to ground loops with other
apparatuses;
LINK XLR/LEFT (11)
Line out to connect another Markaudio system to the principal system; it performs as a
LINK (MONO mode) or it sends only the LEFT CHANNEL (STEREO mode) when a stereo
signal is connected to the AUX INPUT.
INPUT INSTRUMENT (12)
Line input 1/4” jack (for direct plugging a MONO instrument).
AUX INPUT (13)
Line input jack for plugging a STEREO audio signal through mini-jack connector.
COOLING (14)
Forced ventilation stabilizes the working temperature of electronic components for
continuous performance, even after a long period of operation.
Avoid using the loudspeaker on irregular surfaces that might block the vents.
AC POWER SOCKET (15)
VDE power jack for connecting the power cable from the unit to a wall power source.
Make sure the unit is grounded; all three terminals of the AC power plug must be connected
to avoid any injury to the user or damage to the unit.
Markaudio powered speakers and amps are manufactured to be used in the country
where they have been sold, and are factory preset to that country’s voltage. So make
sure you’re sending the correct voltage to your amp before you connect it to AC power.
FUSE (16)
Fuse housing.
ON/OFF SWITCH (17)
On/off power switch.
POWER OUT 1 (18)
Use this output to connect the AC module/s as showed at the following CONNECTIONS
instructions.
POWER OUT 2 (19)
Use this output to connect the AC module/s as showed at the following CONNECTIONS
instructions.
OFF
ON
POWER POWER
OUT 1 OUT 2
GND
LIFT
INPUT
XLR
LINK XLR LEFT
MONO STEREO INPUT
INPUT
INSTR.
