Dimensions

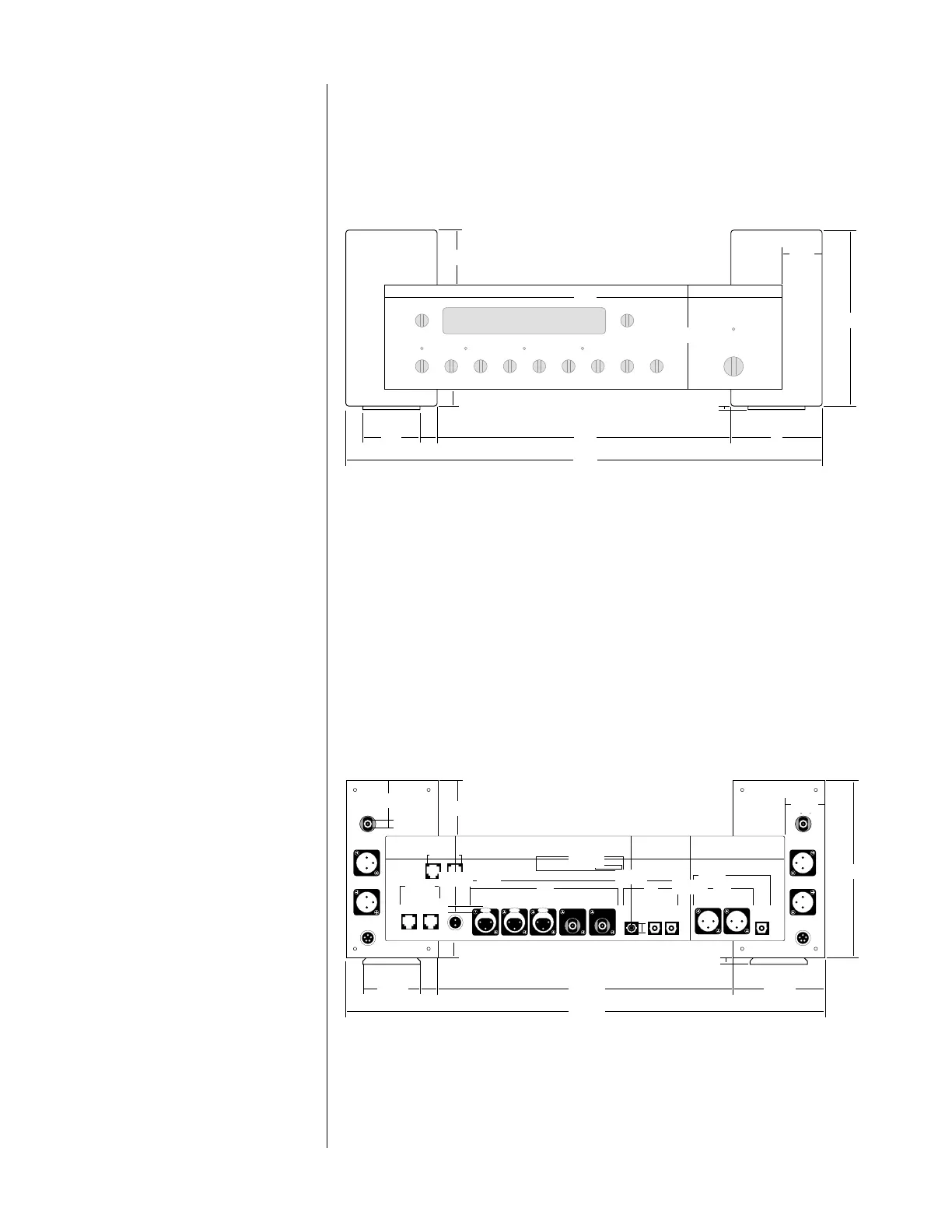

Nº30.6 Front Dimensions
7/8"
(22.2mm)
7/8"
(22.2mm)
1/8"
(3.2mm)
7-1/4"
(184.2mm)
2-1/8"
(54mm)
2-1/4"
(57.2mm)
19-3/8"
(492.1mm)
11-5/8"
(295.3mm)
4-1/4"
(108mm)
15-3/4"
(400.1mm)
1-3/4"
(44.5mm)
1
4"
(101.6mm)
Nº30.6 Rear Dimensions
PUSH PUSH PUSH
analog output
balanced analog
output
analog dc in
analog output
balanced analog
output
analog dc in
digital
dc in 1 2 3 4 5 6 7 8
digital inputs
master RS-232
electrical
digital outputs
optical
electrical
rec monitor rec
optical
balanced analog
output
balanced analog
output
communication
ports
control ports
PHASTLink® compatible
REFERENCE DIGITAL PROCESSOR Nº30.6
designed and manufactured in U.S.A.
by
MADRIGAL S/N
1-15/16"
(49.2mm)
5/16"
(7.9mm)
2-1/16"
(52.4mm)
4-1/16"
(103.2mm)
15-1/2"
(393.7mm)
1-13/16"
(46mm)
2-3/16"
(55.6mm)
3/16"
(4.8mm)
3-5/16"
(84.1mm)
5/16"
(7.9mm)
1/4"
(6.4mm)
7"
(177.8mm)
3/4"
(19.1mm)
2-1/4"
(57.2mm)
19 "
(482.6mm)
11-5/8"
(295.3mm)
3-3/4"
(95.3mm)
7/8"
(22.2mm)
