Mark GS+ - Page 9

9

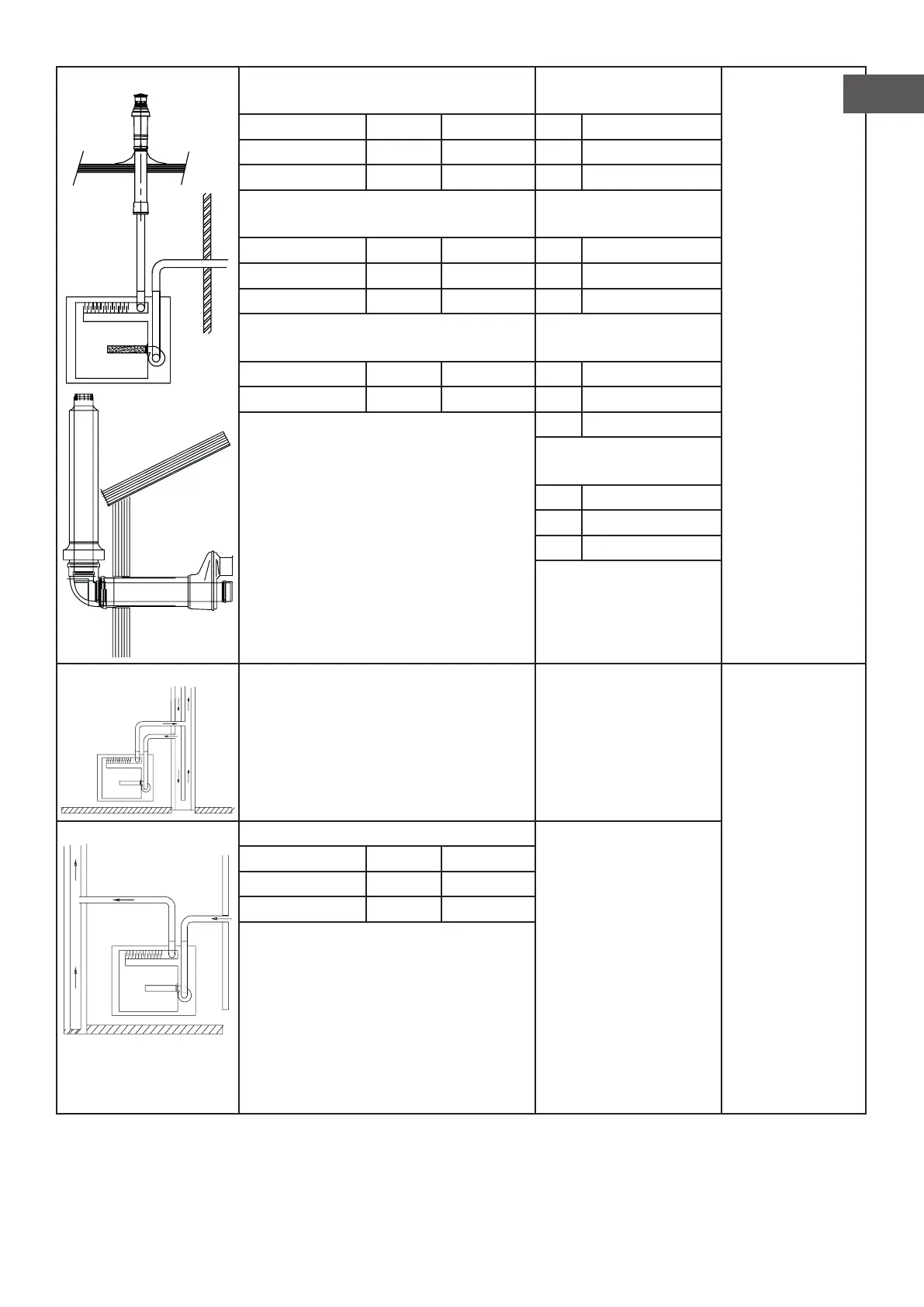

C53 RVS Single ue set horizontal Extension pipe
Polyethylene L=500
15/25/35/40 80/125 5990557 80 5989205
60/80/100 100/150 5990561 100 5989206
135/150/200 130/200 5990564 130 5989207
In combination with
single ue set horizontal
Extension pipe
Polyethylene L=1000
15/25/35/40 5990511 80 5989210
60/80/100 5990512 100 5989211
135/150/200 5990513 130 5989212
OR
Elbow 45°
Polyethylene
15/25/35/40 0703100 80 5989224
60/80/100 0703101 100 5989233
130 5989234
Elbow 90°
Polyethylene
80 5989225
100 5989236
130 5989237
C43 C43: Minimum
internal area of a
round common
drain pipe AV,
see table [5]
Applicable only
if the combined
ue gas system
has sufcient
natural draft: the
unit does not
have an internal
non-return valve.
Condensate is
not allowed to
ow back from
the ue system
into the unit.
C83 Single ue set horizontal
15/25/35/40 5990511
60/80/100 5990512
135/150/200 5990513
2.3 Gas connection
The installation of the gas pipeline and gas tap must comply with the relevant local and/or national
regulations. The gas tap must be positioned within reach of the appliance [3]. If the connection line is
subject to pressures above 60mbar, this gas tap must be closed. If there is any possibility of the presence of
