Mark MSU 11 - Air Flow System

2.2 Air flow

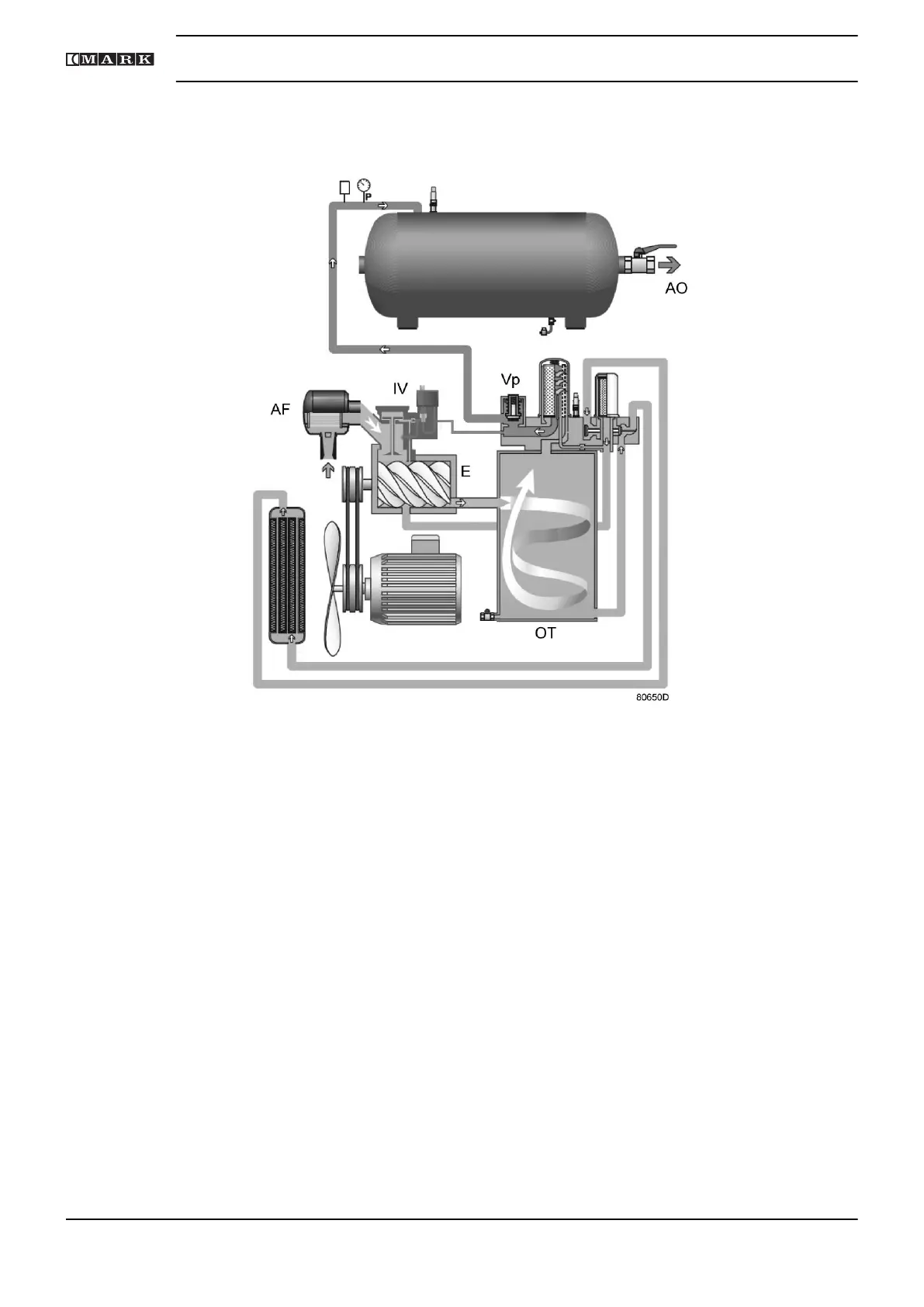

Air flow, Tank-mounted
Air drawn through filter (AF) and open inlet valve (IV) into compressor element (E) is
compressed. Compressed air and oil flow into oil separator/tank (OT). The air is discharged via
minimum pressure valve (Vp) towards the air outlet (AO).
