04

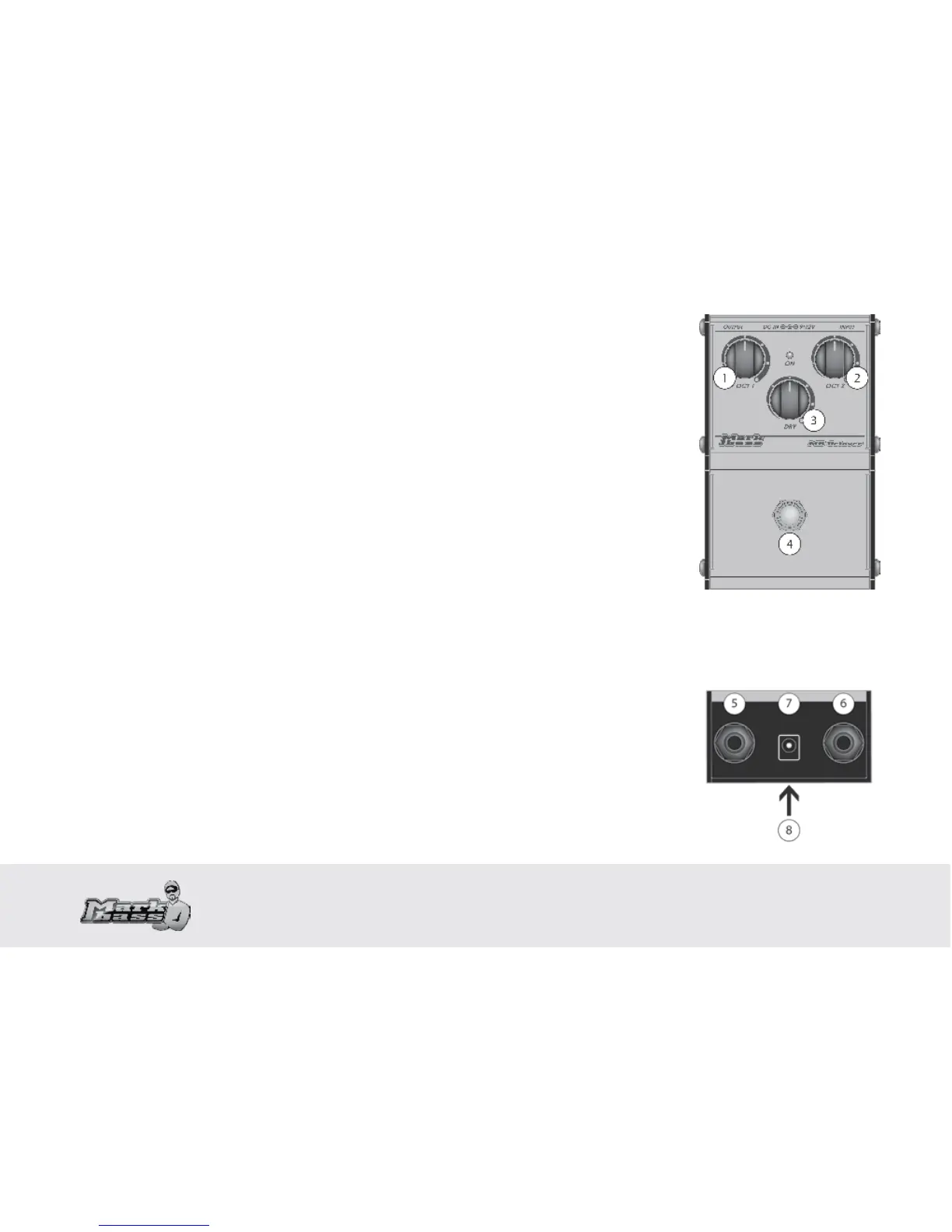

4. FUNCTION OVERVIEW
OCT 1 (1) – adjusts the volume level of your signal pitched one octave down
OCT 2 (2) - adjusts the volume level of your signal pitched two octaves down
DRY (3) - controls the volume level of your dry sound
ON/OFF SWITCH* (4) – turns the eect on and o; the LED indicator illuminates when the eect is on.
*TRUE BYPASS - When the pedal’s controls are ‘o’, your signal goes directly from the input jack to the output jack with no
degradation of audio quality.
5. CONNECTIONS
1/4” INPUT JACK 5 (CONNECTS TO YOUR INSTRUMENT) As with any pedal, make sure your amp is o and the volume is
turned down before making connections.
1/4” OUTPUT JACK 6 (CONNECTS TO YOUR AMPLIFIER)
DC IN 7 External power supply connection (9-12V DC PSU).
STANDARD 9V BATTERY COMPARTMENT (8) - Use a Phillips screwdriver to unscrew the two screws to access the 9V battery
compartment on the bottom side of the pedal.
