Markilux 990 Mounting Instructions

5

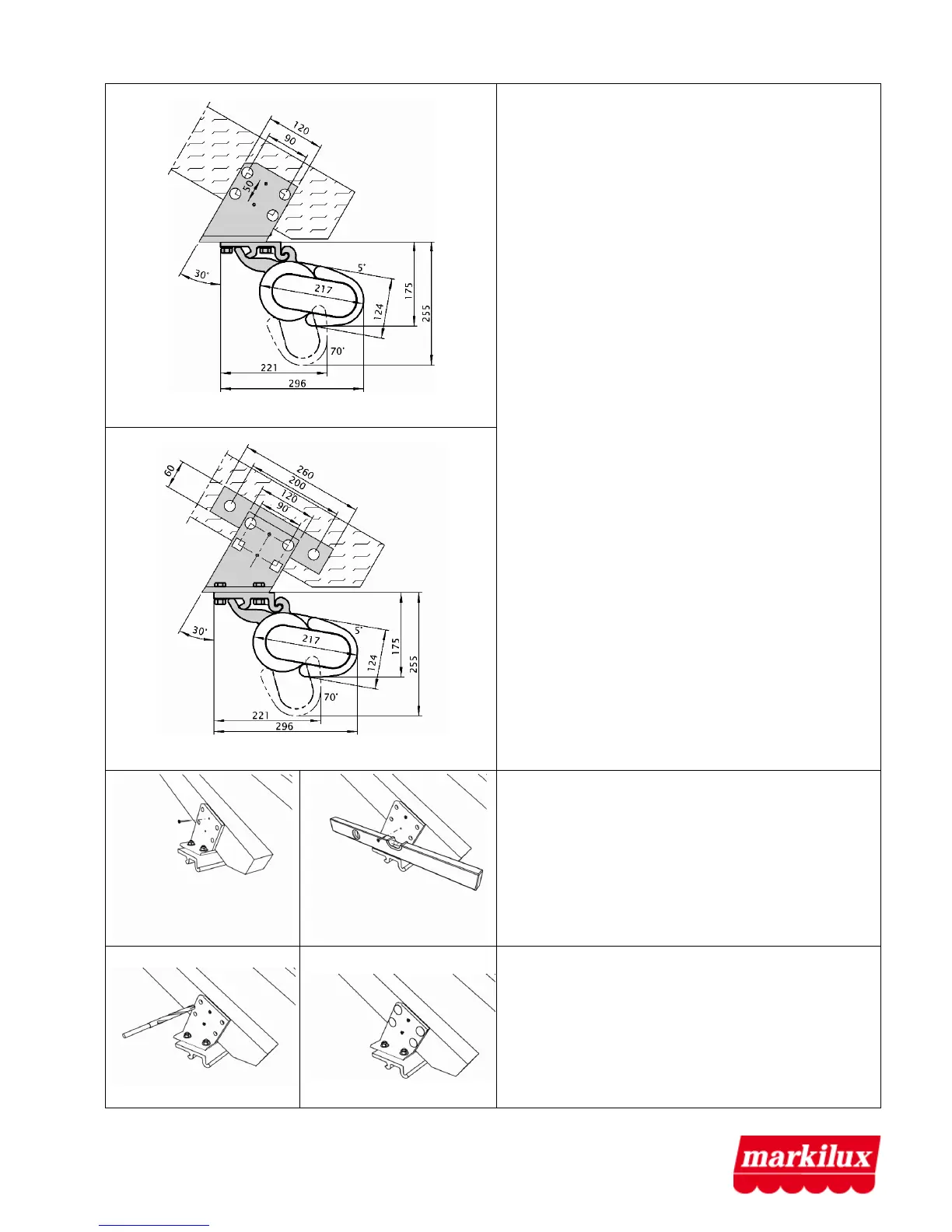

3.3 Rafter mount
Dimensions in
mm
With supplementary bracket:
Measurements in
mm
1. The mounting takes place in relation to the wall
fitting. The shifting area (VB) for the rafter
brackets is like for the wall mount.
2. Determine mounting height. Hold rafter bracket
and mark. Fix the rafter bracket with a nail.
Align the brackets horizontally using a spirit
level and fix a second nail.
3. Drill through the roof rafter at the screw holes.
Screw the bracket with suitable mounting mate-
rial. Align the roof rafter brackets horizontally.
